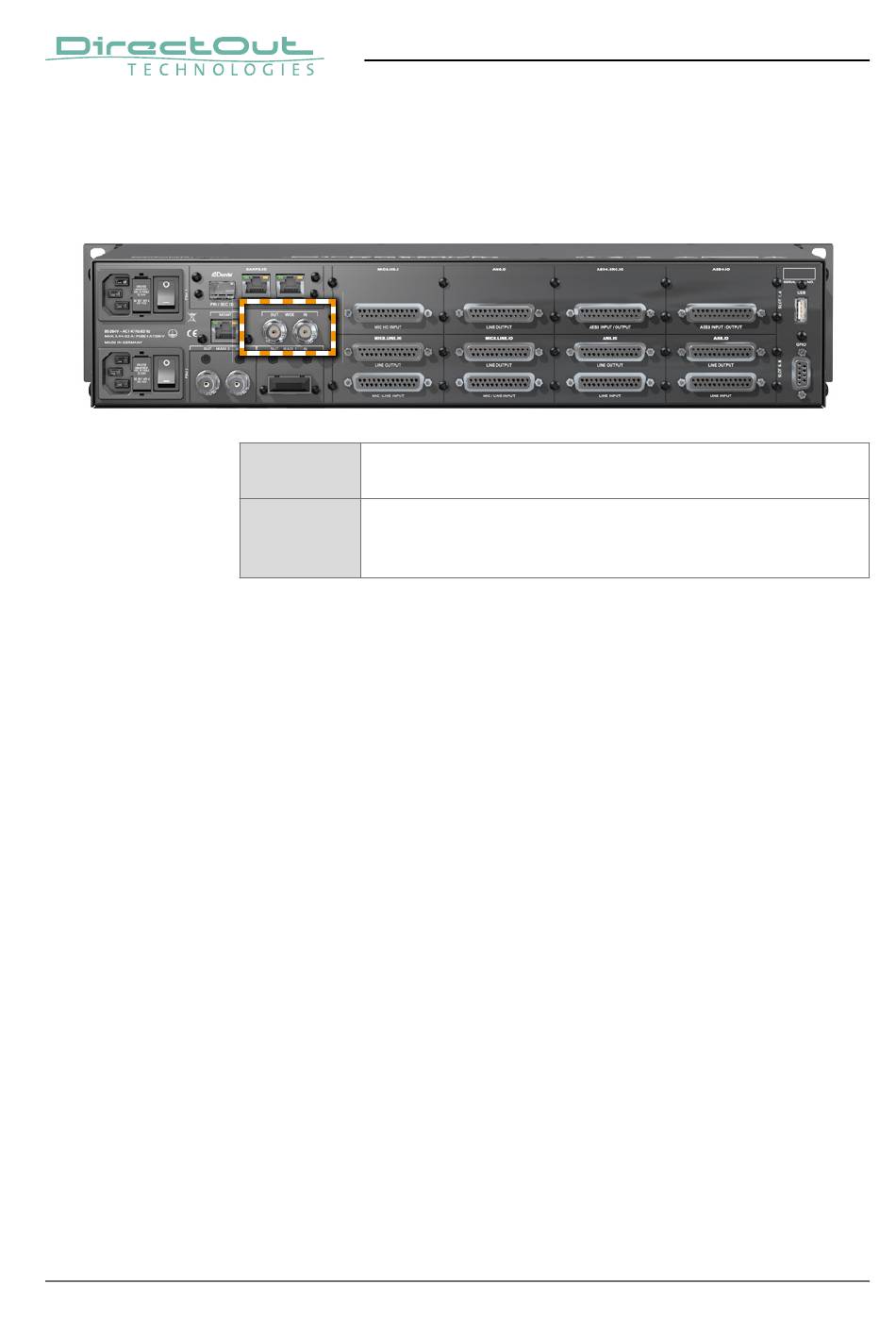

Word clock
The word clock output provides the system clock that is either derived from PTP
/ Network Audio input, AES input, word clock input, MADI input or internal clock
generator.
BNC socket (coaxial), 75 Ω
WCK
OUT
System clock output - connect for word clock output signal here.
BNC socket (coaxial), 75 Ω
WCK
IN
Connect word clock or AES3 DARS (Digital Audio Reference
Signal) here.
The word clock input also accepts a AES3 frame (AES11).
Termination (75 Ω) for the word clock input is switchable locally or via remote
control.
CHAPTER 4: Operation
Prodigy.MC Hardware Guide - Version 1.0
