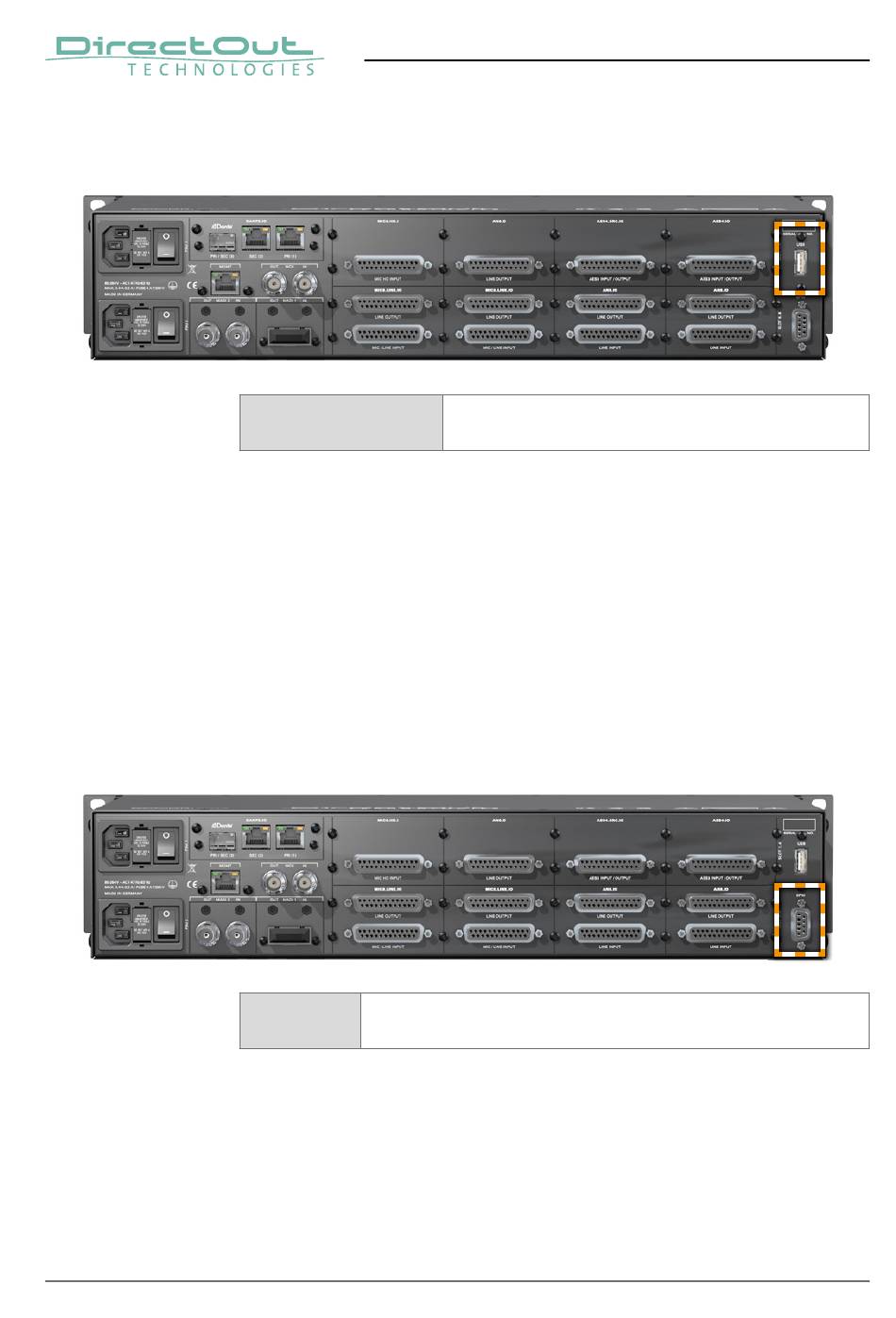

USB

The USB port at the rear panel is used for legacy control of ANDIAMO devices.
USB

GPIO

General Purpose Input and Output
Two MOSFET switches (2 x GPO) can be triggered. A power supply (12 V, max.
200 mA) is also provided. This allows to remote control external devices; e.g. a
recording light.
Two GPIs can be triggered by connecting the input pin with ground (GND) or by a
voltage source between input pin and ground. The high level of the voltage may
range between 2 V and 30 V due to a safety limiter in the input.
GPIO DSUB-9 socket (female)
Connect for GPIO application here.
Observe the pin out - see „Appendix B - DSUB-9 Pin assignment" on page 59.
USB 2.0 socket (Type B)
Connect here for legacy control.
