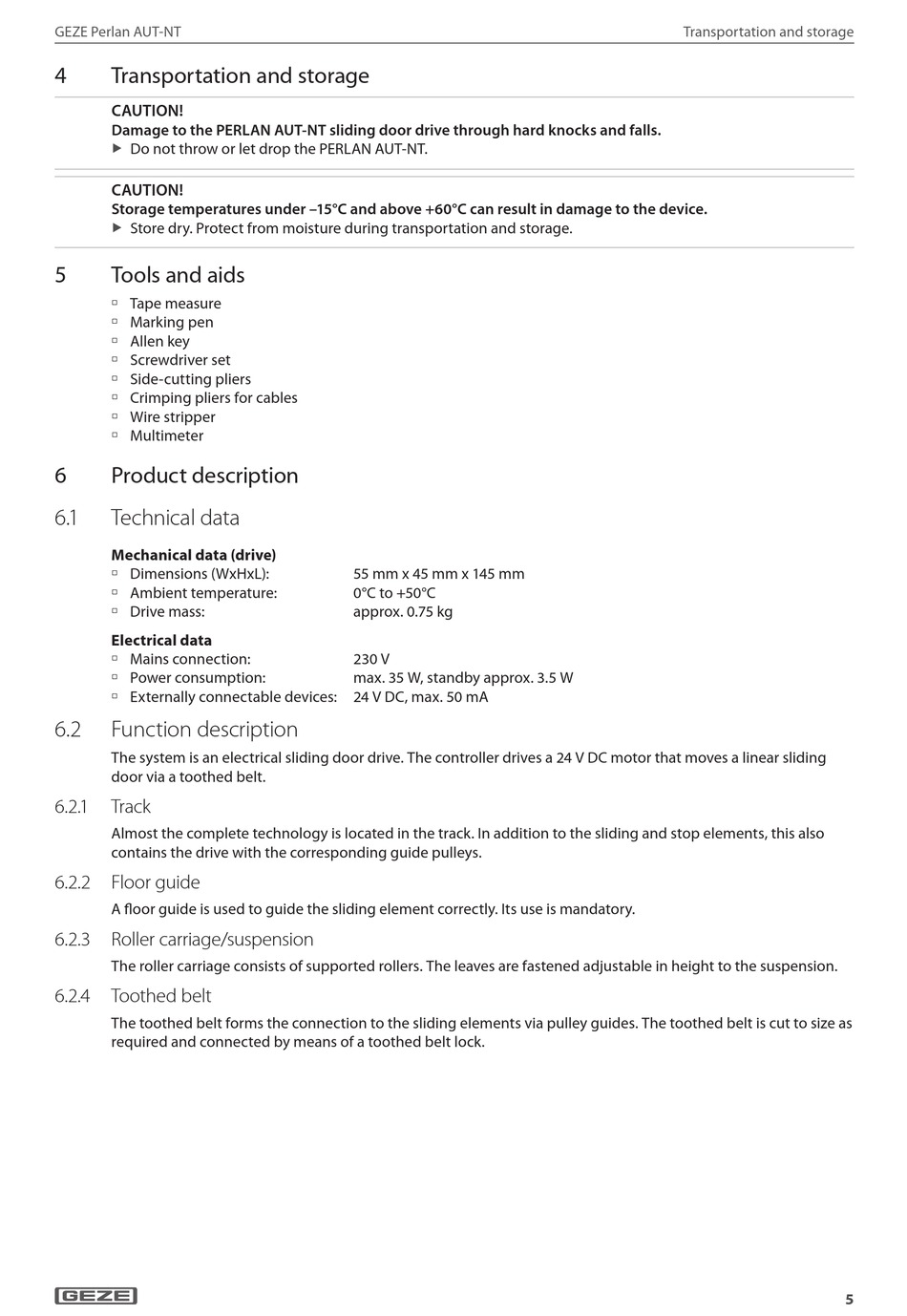

GEZE Perlan AUT-NT
4

Transportation and storage

CAUTION!
Damage to the PERLAN AUT-NT sliding door drive through hard knocks and falls.
Do not throw or let drop the PERLAN AUT-NT.
X
CAUTION!
Storage temperatures under –15°C and above +60°C can result in damage to the device.
Store dry. Protect from moisture during transportation and storage.
X
5

Tools and aids

Tape measure
à
Marking pen
à
Allen key
à
Screwdriver set
à
Side-cutting pliers
à
à Crimping pliers for cables
Wire stripper
à
Multimeter
à
6

Product description

6. 1

Technical data

Mechanical data (drive)
Dimensions (WxHxL):
à
Ambient temperature:
à
Drive mass:
à
Electrical data
Mains connection:
à
Power consumption:
à
Externally connectable devices: 24 V DC, max. 50 mA
à
6.2

Function description

The system is an electrical sliding door drive. The controller drives a 24 V DC motor that moves a linear sliding
door via a toothed belt.
6.2. 1 Track
Almost the complete technology is located in the track. In addition to the sliding and stop elements, this also
contains the drive with the corresponding guide pulleys.
6.2.2 Floor guide
A floor guide is used to guide the sliding element correctly. Its use is mandatory.
6.2.3 Roller carriage/suspension
The roller carriage consists of supported rollers. The leaves are fastened adjustable in height to the suspension.
6.2.4 Toothed belt
The toothed belt forms the connection to the sliding elements via pulley guides. The toothed belt is cut to size as
required and connected by means of a toothed belt lock.
55 mm x 45 mm x 145 mm
0°C to +50°C
approx. 0.75 kg
230 V
max. 35 W, standby approx. 3.5 W
