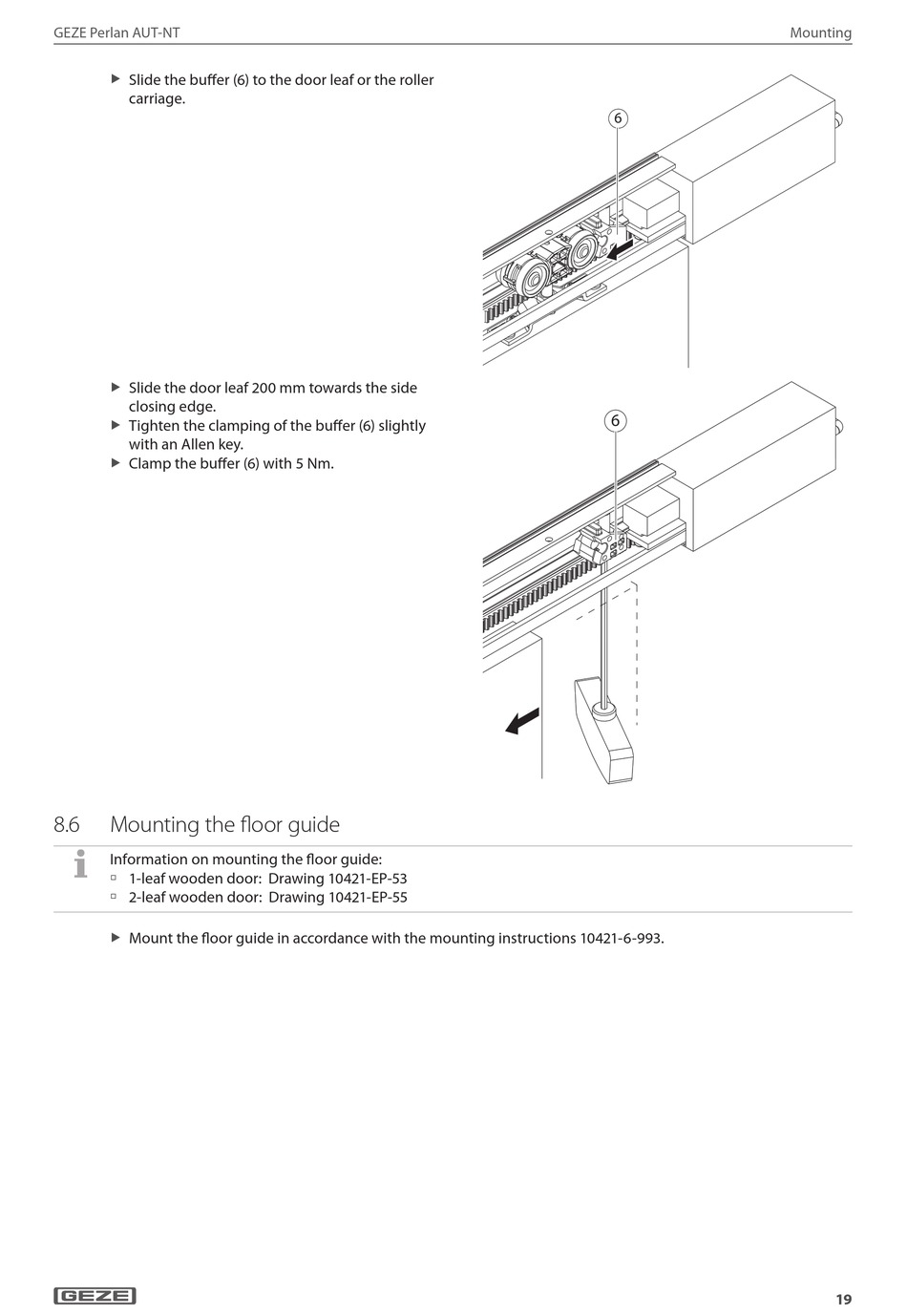

Mounting The Floor Guide - GEZE Perlan AUT-NT Mounting Instructions

GEZE Perlan AUT-NT
Slide the buffer (6) to the door leaf or the roller
X
carriage.
Slide the door leaf 200 mm towards the side
X
closing edge.
Tighten the clamping of the buffer (6) slightly
X
with an Allen key.
Clamp the buffer (6) with 5 Nm.
X
8.6

Mounting the floor guide

Information on mounting the floor guide:
1-leaf wooden door: Drawing 10421-EP-53
à
2-leaf wooden door: Drawing 10421-EP-55
à
Mount the floor guide in accordance with the mounting instructions 10421-6-993.
X
�
�
Mounting
19
