Mounting

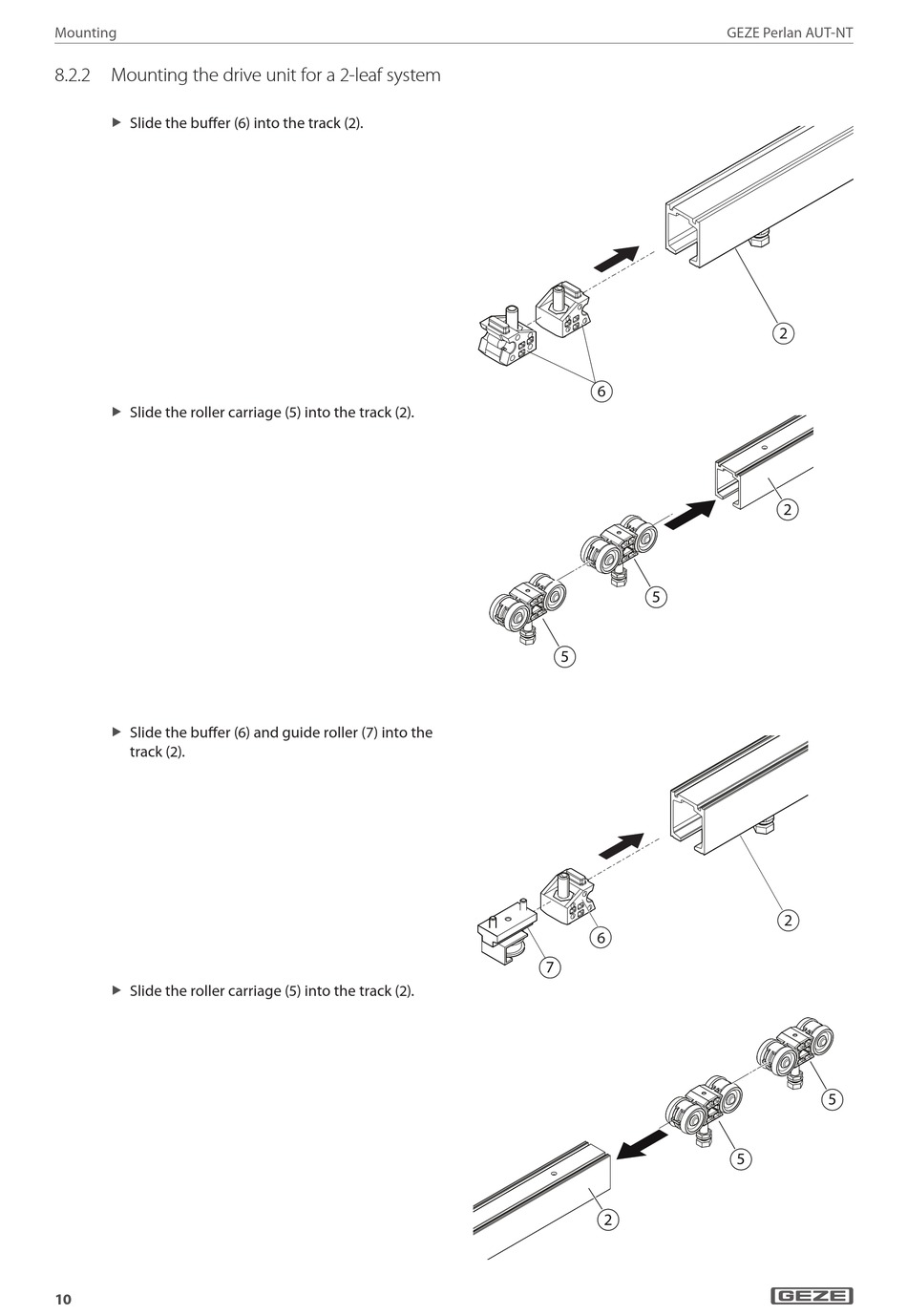

8.2.2 Mounting the drive unit for a 2-leaf system
Slide the buffer (6) into the track (2).
X
Slide the roller carriage (5) into the track (2).
X
Slide the buffer (6) and guide roller (7) into the
X
track (2).
Slide the roller carriage (5) into the track (2).
X
