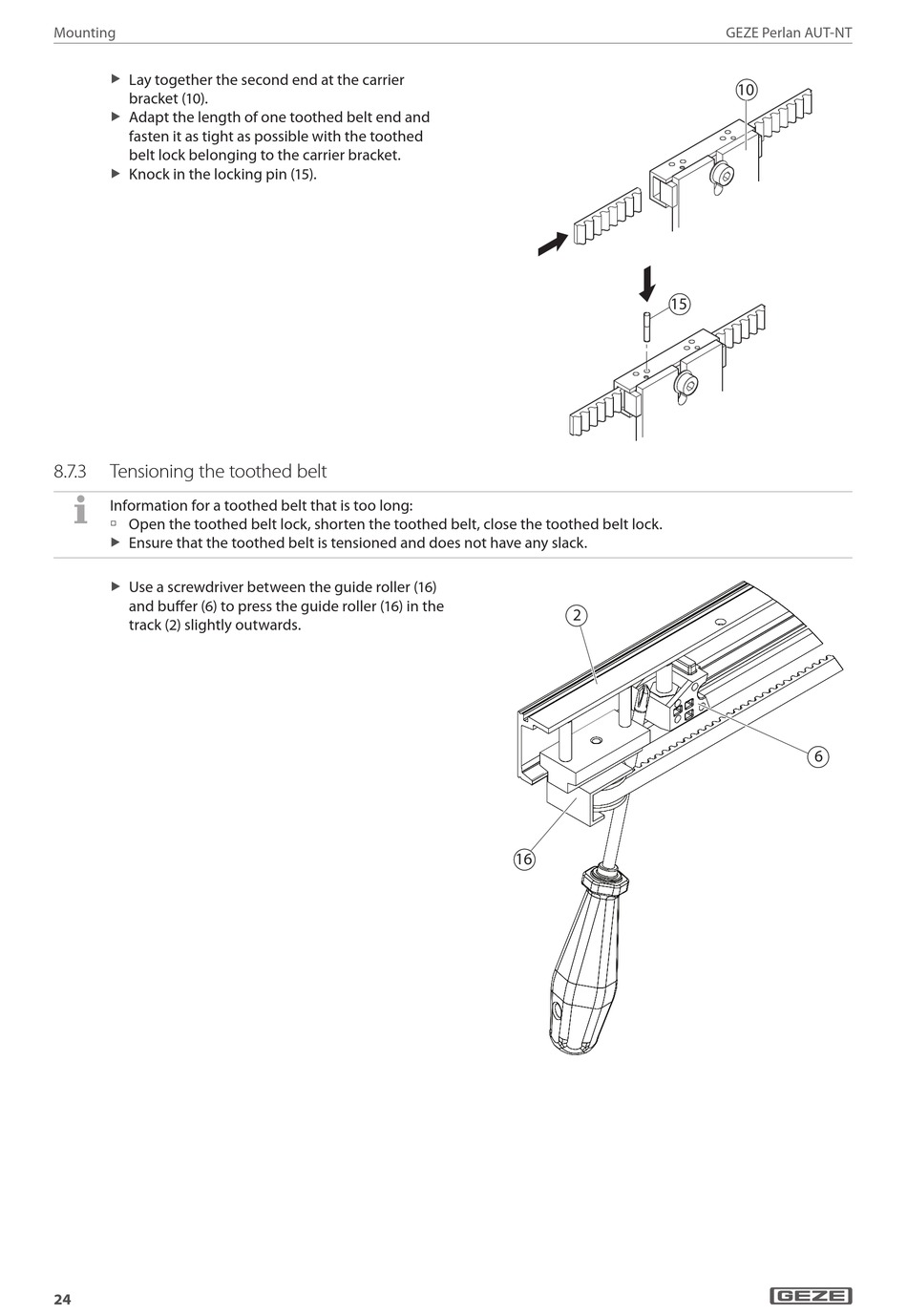

Mounting
Lay together the second end at the carrier
X
bracket (10).
Adapt the length of one toothed belt end and
X
fasten it as tight as possible with the toothed
belt lock belonging to the carrier bracket.
Knock in the locking pin (15).
X
8.7.3 Tensioning the toothed belt
Information for a toothed belt that is too long:
Open the toothed belt lock, shorten the toothed belt, close the toothed belt lock.
à
Ensure that the toothed belt is tensioned and does not have any slack.
X
Use a screwdriver between the guide roller (16)
X
and buffer (6) to press the guide roller (16) in the
track (2) slightly outwards.
