Powerturn
3

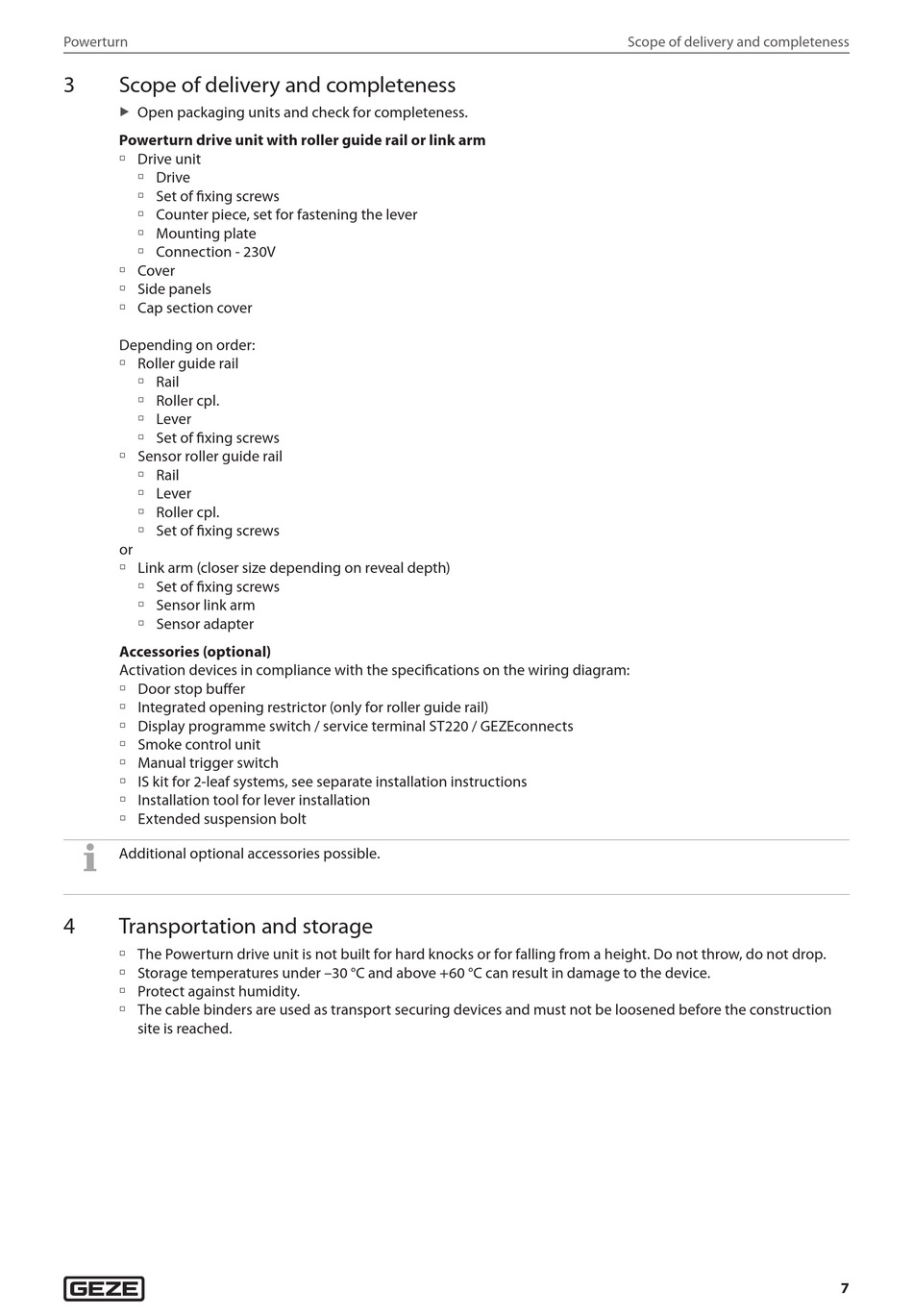

Scope of delivery and completeness

Open packaging units and check for completeness.
X
Powerturn drive unit with roller guide rail or link arm
à Drive unit
à Drive
à Set of fixing screws
à Counter piece, set for fastening the lever
à Mounting plate
à Connection - 230V
à Cover
à Side panels
à Cap section cover
Depending on order:
à Roller guide rail
à Rail
à Roller cpl.
à Lever
à Set of fixing screws
à Sensor roller guide rail
à Rail
à Lever
à Roller cpl.
à Set of fixing screws
or
à Link arm (closer size depending on reveal depth)
à Set of fixing screws
à Sensor link arm
à Sensor adapter
Accessories (optional)
Activation devices in compliance with the specifications on the wiring diagram:
à Door stop buffer
à Integrated opening restrictor (only for roller guide rail)
à Display programme switch / service terminal ST220 / GEZEconnects
à Smoke control unit
à Manual trigger switch
à IS kit for 2-leaf systems, see separate installation instructions
à Installation tool for lever installation
à Extended suspension bolt
Additional optional accessories possible.
4

Transportation and storage

à The Powerturn drive unit is not built for hard knocks or for falling from a height. Do not throw, do not drop.
à Storage temperatures under –30 °C and above +60 °C can result in damage to the device.
à Protect against humidity.
à The cable binders are used as transport securing devices and must not be loosened before the construction
site is reached.
