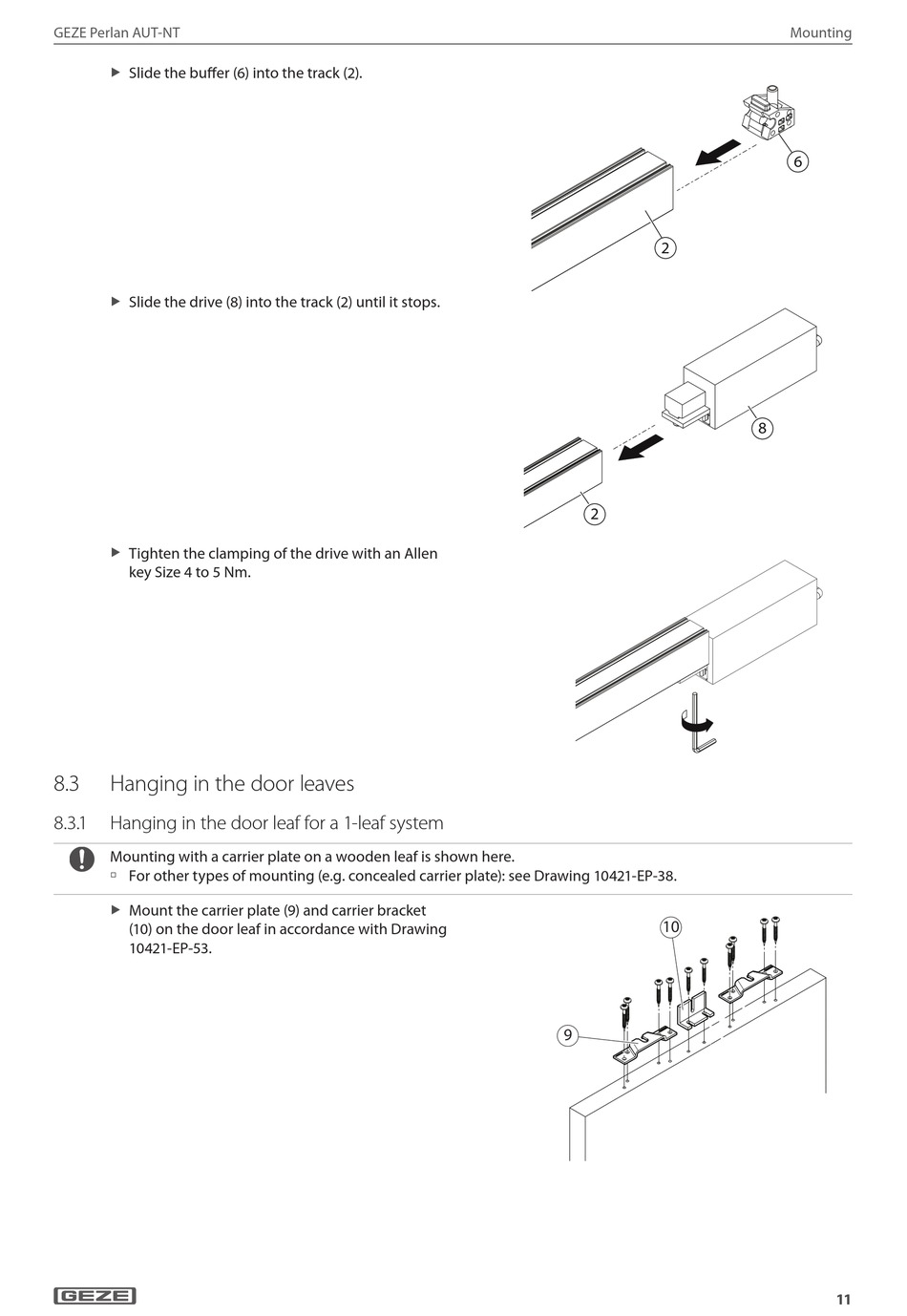

Slide the buffer (6) into the track (2).
X
Slide the drive (8) into the track (2) until it stops.
X
Tighten the clamping of the drive with an Allen
X
key Size 4 to 5 Nm.
8.3

Hanging in the door leaves

8.3. 1 Hanging in the door leaf for a 1-leaf system
Mounting with a carrier plate on a wooden leaf is shown here.
For other types of mounting (e.g. concealed carrier plate): see Drawing 10421-EP-38.
à
Mount the carrier plate (9) and carrier bracket
X
(10) on the door leaf in accordance with Drawing
10421-EP-53.
