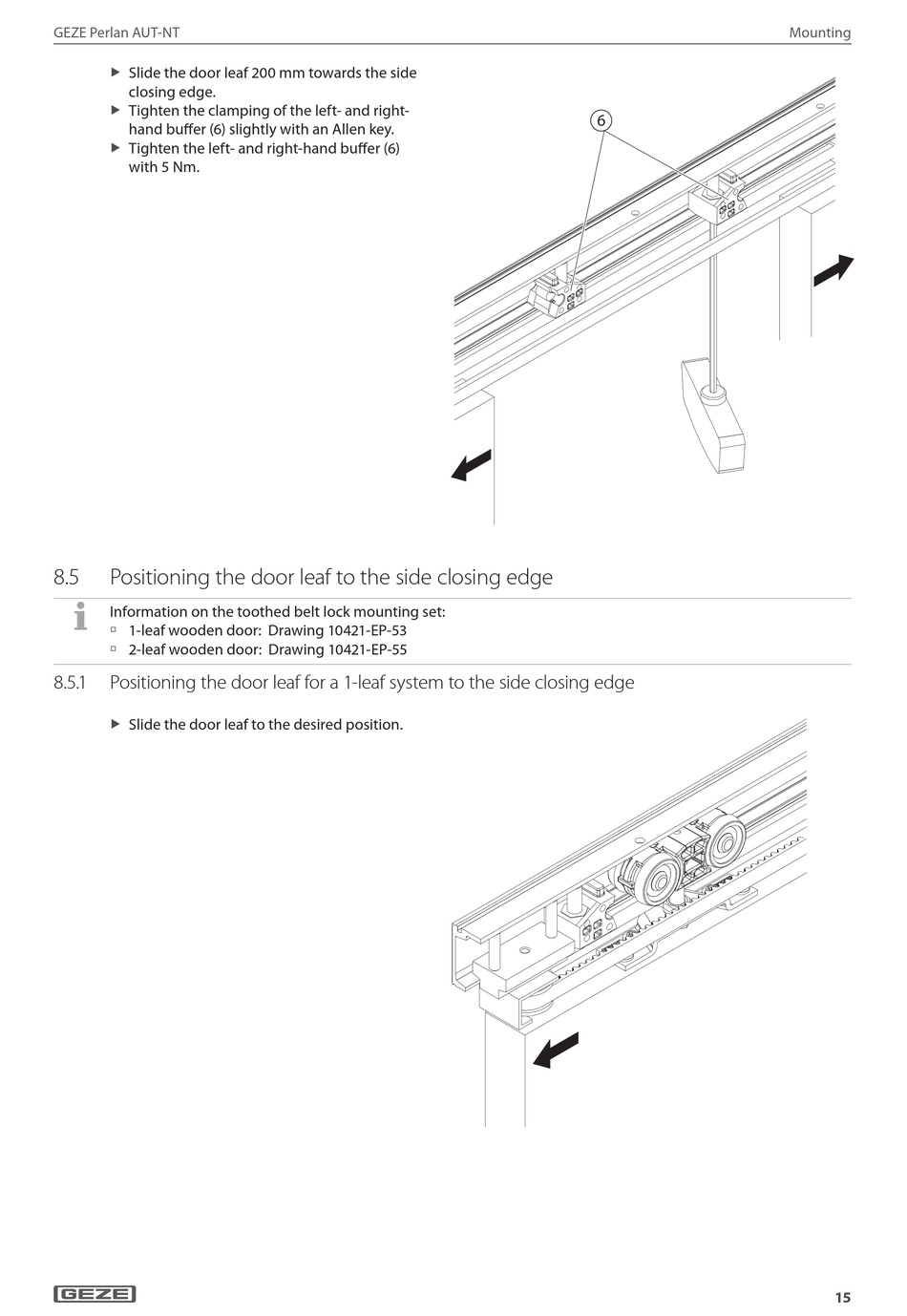

Positioning The Door Leaf To The Side Closing Edge - GEZE Perlan AUT-NT Mounting Instructions

GEZE Perlan AUT-NT
Slide the door leaf 200 mm towards the side
X
closing edge.
Tighten the clamping of the left- and right-
X
hand buffer (6) slightly with an Allen key.
Tighten the left- and right-hand buffer (6)
X
with 5 Nm.
8.5

Positioning the door leaf to the side closing edge

Information on the toothed belt lock mounting set:
1-leaf wooden door: Drawing 10421-EP-53
à
2-leaf wooden door: Drawing 10421-EP-55
à
8.5. 1 Positioning the door leaf for a 1-leaf system to the side closing edge
Slide the door leaf to the desired position.
X
�
Mounting
15
