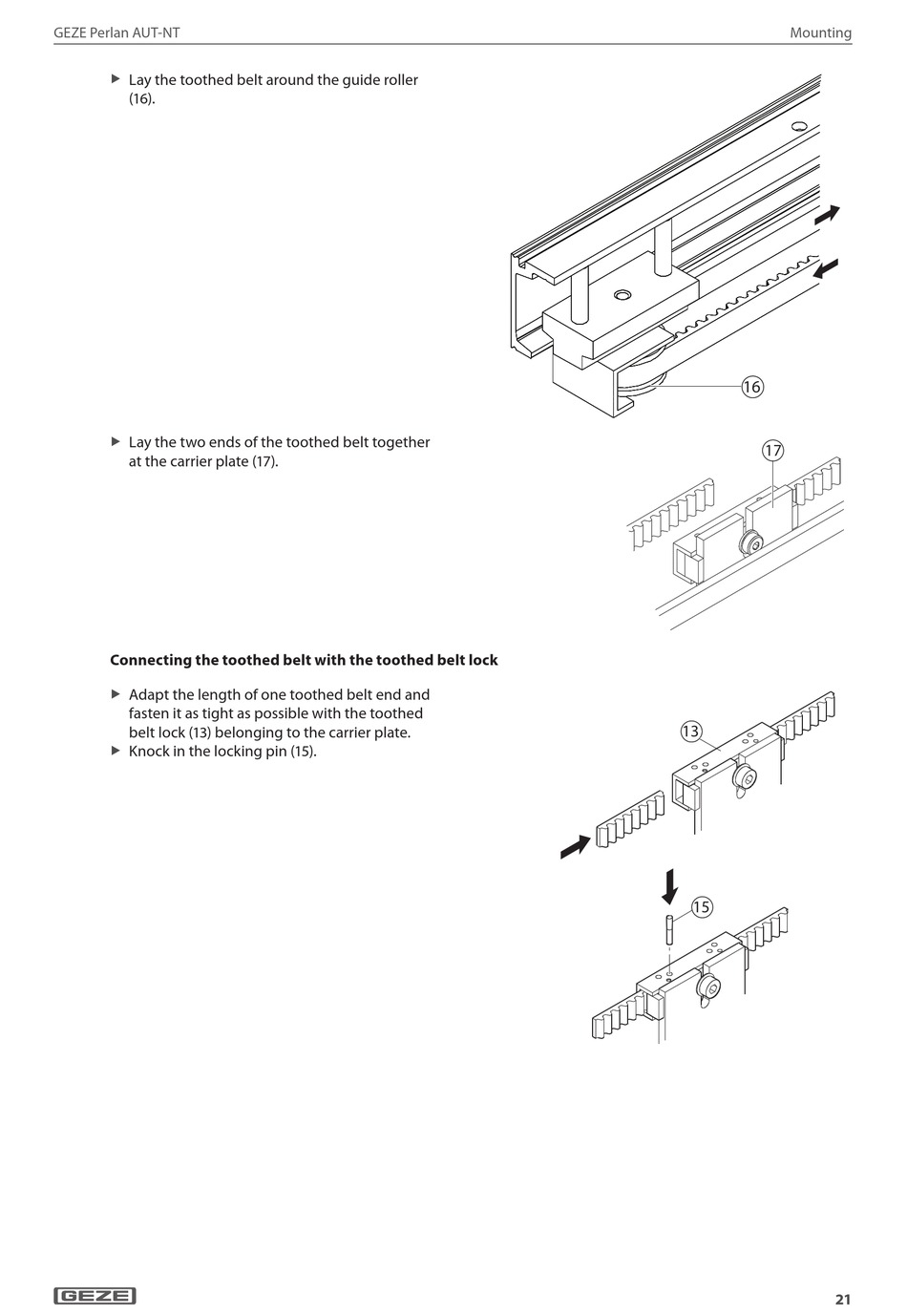

Lay the toothed belt around the guide roller
X
(16).
Lay the two ends of the toothed belt together
X
at the carrier plate (17).
Connecting the toothed belt with the toothed belt lock
Adapt the length of one toothed belt end and
X
fasten it as tight as possible with the toothed
belt lock (13) belonging to the carrier plate.
Knock in the locking pin (15).
X
Mounting
��
��
��
��
21
