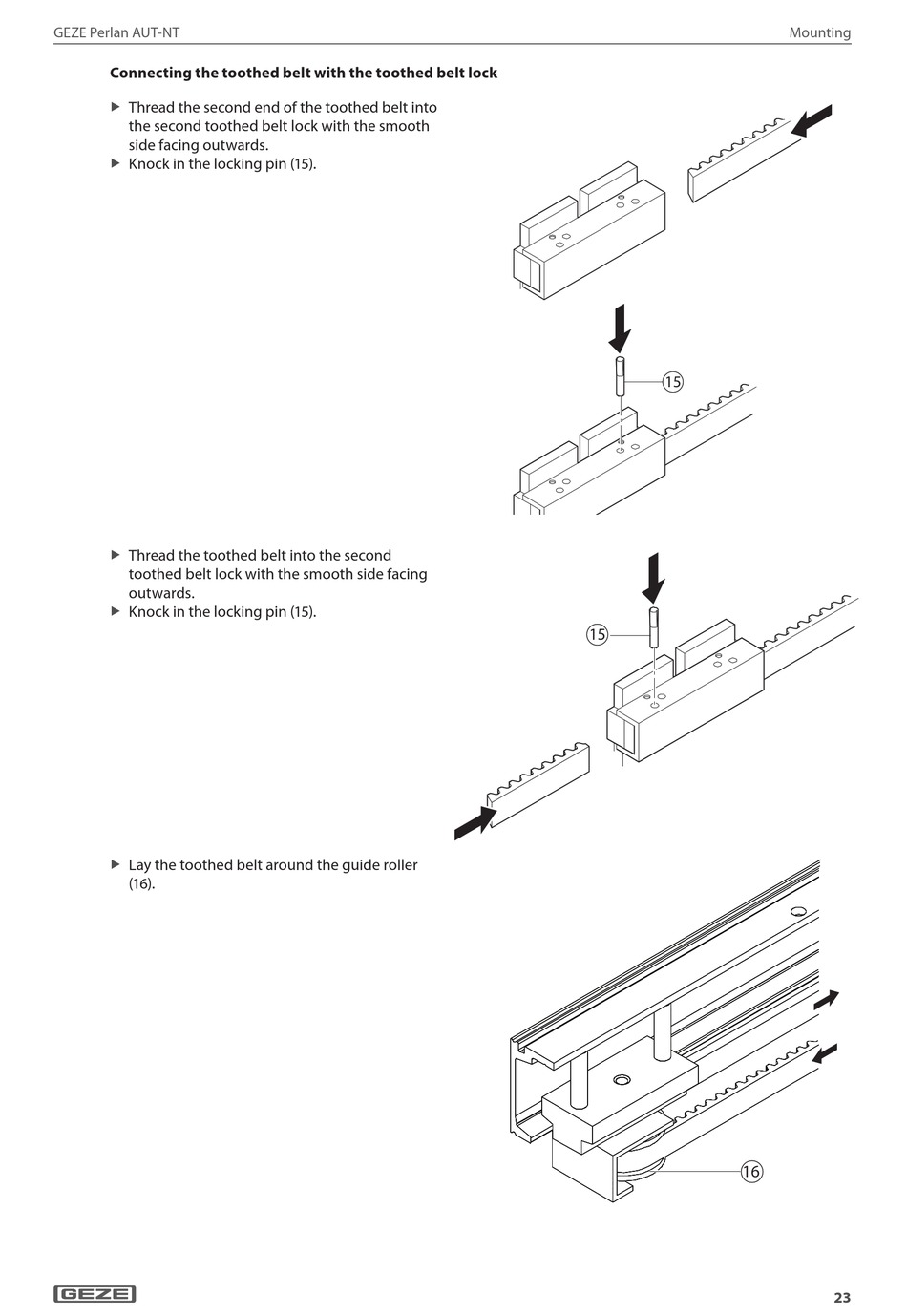

Connecting the toothed belt with the toothed belt lock
Thread the second end of the toothed belt into
X
the second toothed belt lock with the smooth
side facing outwards.
Knock in the locking pin (15).
X
Thread the toothed belt into the second
X
toothed belt lock with the smooth side facing
outwards.
Knock in the locking pin (15).
X
Lay the toothed belt around the guide roller
X
(16).
��
��
��
