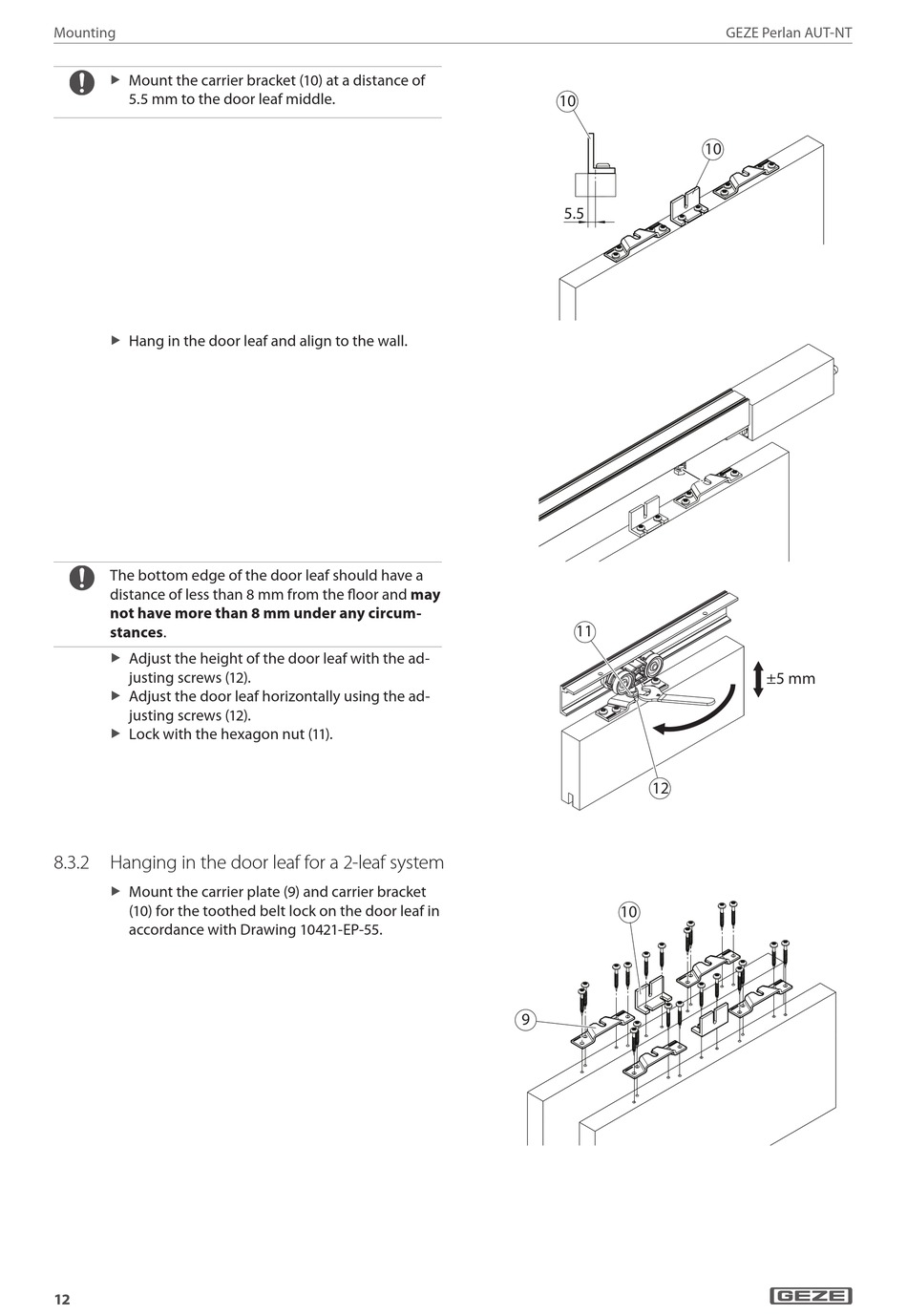

Mounting
Mount the carrier bracket (10) at a distance of
X
5.5 mm to the door leaf middle.
Hang in the door leaf and align to the wall.
X
The bottom edge of the door leaf should have a
distance of less than 8 mm from the floor and may
not have more than 8 mm under any circum-
stances.
Adjust the height of the door leaf with the ad-
X
justing screws (12).
Adjust the door leaf horizontally using the ad-
X
justing screws (12).
Lock with the hexagon nut (11).
X
8.3.2 Hanging in the door leaf for a 2-leaf system
Mount the carrier plate (9) and carrier bracket
X
(10) for the toothed belt lock on the door leaf in
accordance with Drawing 10421-EP-55.
