Mounting instructions

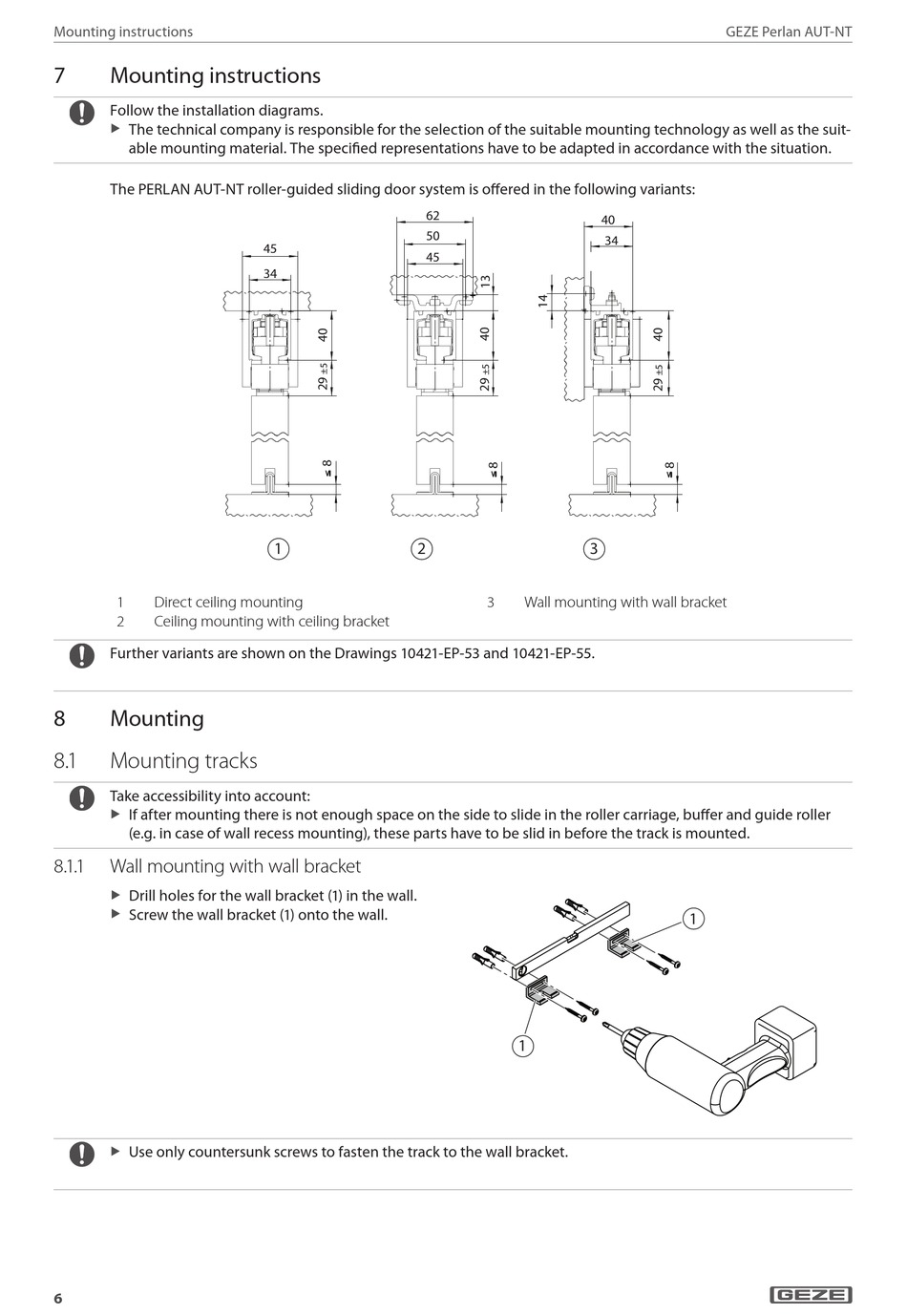

7 Mounting instructions
Follow the installation diagrams.
The technical company is responsible for the selection of the suitable mounting technology as well as the suit-
X
able mounting material. The specified representations have to be adapted in accordance with the situation.
The PERLAN AUT-NT roller-guided sliding door system is offered in the following variants:
1 Direct ceiling mounting
2 Ceiling mounting with ceiling bracket
Further variants are shown on the Drawings 10421-EP-53 and 10421-EP-55.
8

Mounting

8. 1

Mounting tracks

Take accessibility into account:
If after mounting there is not enough space on the side to slide in the roller carriage, buffer and guide roller
X
(e.g. in case of wall recess mounting), these parts have to be slid in before the track is mounted.
8. 1 . 1 Wall mounting with wall bracket
Drill holes for the wall bracket (1) in the wall.
X
Screw the wall bracket (1) onto the wall.
X
Use only countersunk screws to fasten the track to the wall bracket.
X
6
��
��
��
��
��
� �
��
��
�
3 Wall mounting with wall bracket
1
