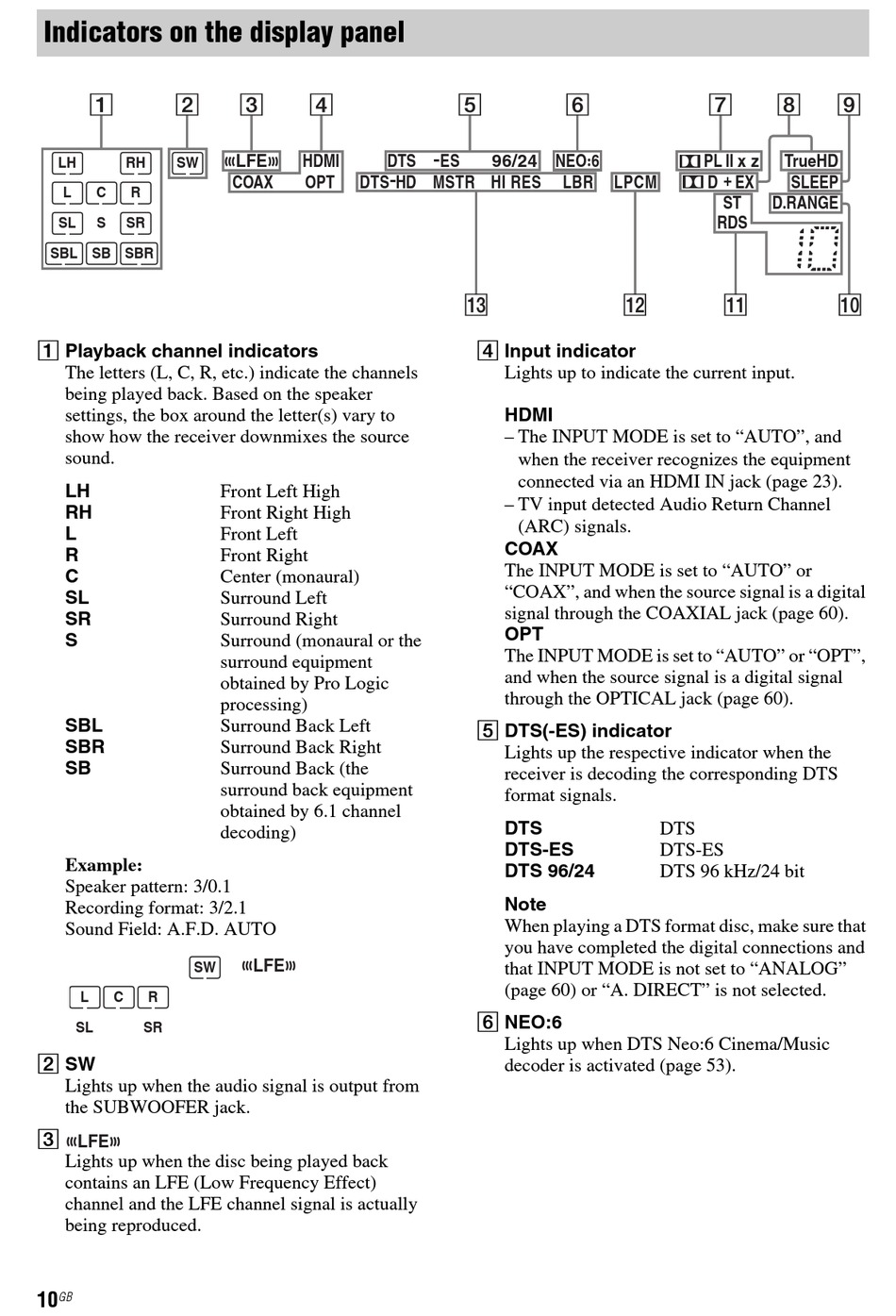

Indicators on the display panel

1
2
LH
RH
SW
L
C
R
SL
S
SR
SBL
SB
SBR
A Playback channel indicators
The letters (L, C, R, etc.) indicate the channels
being played back. Based on the speaker
settings, the box around the letter(s) vary to
show how the receiver downmixes the source
sound.
LH
RH
L
R
C
SL
SR
S
SBL
SBR
SB
Example:
Speaker pattern: 3/0.1
Recording format: 3/2.1
Sound Field: A.F.D. AUTO
SW
L
C
R
SL
SR
B SW
Lights up when the audio signal is output from
the SUBWOOFER jack.
C
LFE
Lights up when the disc being played back
contains an LFE (Low Frequency Effect)
channel and the LFE channel signal is actually
being reproduced.
GB
10
3
4
LFE
HDMI
DTS
DTS - HD MSTR HI RES
COAX
OPT
Front Left High
Front Right High
Front Left
Front Right
Center (monaural)
Surround Left
Surround Right
Surround (monaural or the
surround equipment
obtained by Pro Logic
processing)
Surround Back Left
Surround Back Right
Surround Back (the
surround back equipment
obtained by 6.1 channel
decoding)
LFE
5
6
- ES
NEO : 6
96/24
LBR
qd
D Input indicator
Lights up to indicate the current input.
HDMI
– The INPUT MODE is set to "AUTO", and
when the receiver recognizes the equipment
connected via an HDMI IN jack (page 23).
– TV input detected Audio Return Channel
(ARC) signals.
COAX
The INPUT MODE is set to "AUTO" or
"COAX", and when the source signal is a digital
signal through the COAXIAL jack (page 60).
OPT
The INPUT MODE is set to "AUTO" or "OPT",
and when the source signal is a digital signal
through the OPTICAL jack (page 60).
E DTS(-ES) indicator
Lights up the respective indicator when the
receiver is decoding the corresponding DTS
format signals.
DTS
DTS-ES
DTS 96/24
Note
When playing a DTS format disc, make sure that
you have completed the digital connections and
that INPUT MODE is not set to "ANALOG"
(page 60) or "A. DIRECT" is not selected.
F NEO:6
Lights up when DTS Neo:6 Cinema/Music
decoder is activated (page 53).
7
8
PL II x z
D + EX
LPCM
ST
D.RANGE
RDS
qs
qa
DTS
DTS-ES
DTS 96 kHz/24 bit
9
TrueHD
SLEEP
0
