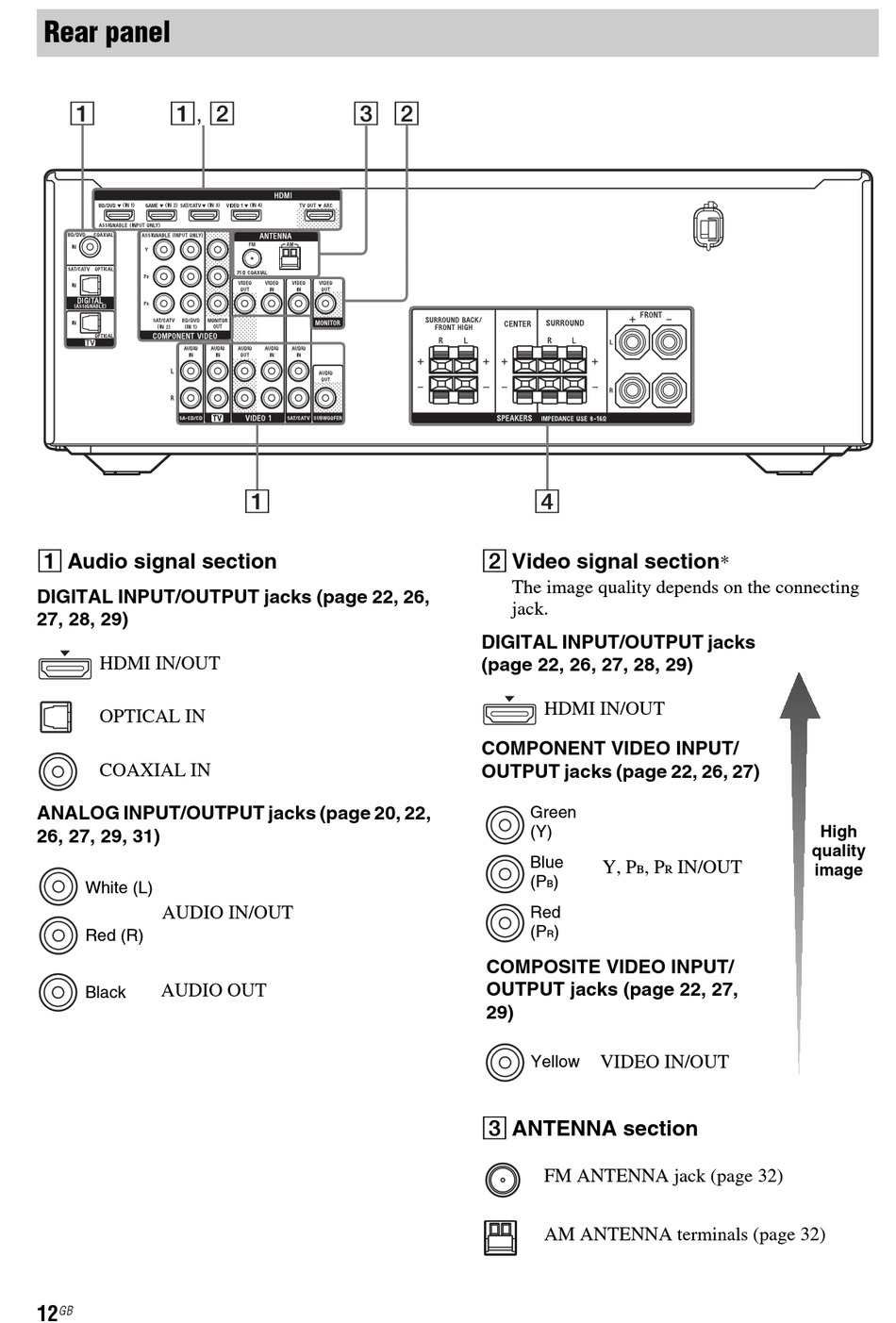

Rear panel

1
1, 2
A Audio signal section
DIGITAL INPUT/OUTPUT jacks (page 22, 26,
27, 28, 29)
HDMI IN/OUT
OPTICAL IN
COAXIAL IN
ANALOG INPUT/OUTPUT jacks (page 20, 22,
26, 27, 29, 31)
White (L)
AUDIO IN/OUT
Red (R)
AUDIO OUT
Black
GB
12
3
2
1
4
B Video signal section
The image quality depends on the connecting
jack.
DIGITAL INPUT/OUTPUT jacks
(page 22, 26, 27, 28, 29)
HDMI IN/OUT
COMPONENT VIDEO INPUT/
OUTPUT jacks (page 22, 26, 27)
Green
(Y)
Blue
Y, P
, P
B
(P
)
B
Red
(P
)
R
COMPOSITE VIDEO INPUT/
OUTPUT jacks (page 22, 27,
29)
Yellow
VIDEO IN/OUT
C ANTENNA section
FM ANTENNA jack (page 32)
AM ANTENNA terminals (page 32)
*
High
quality
IN/OUT
R
