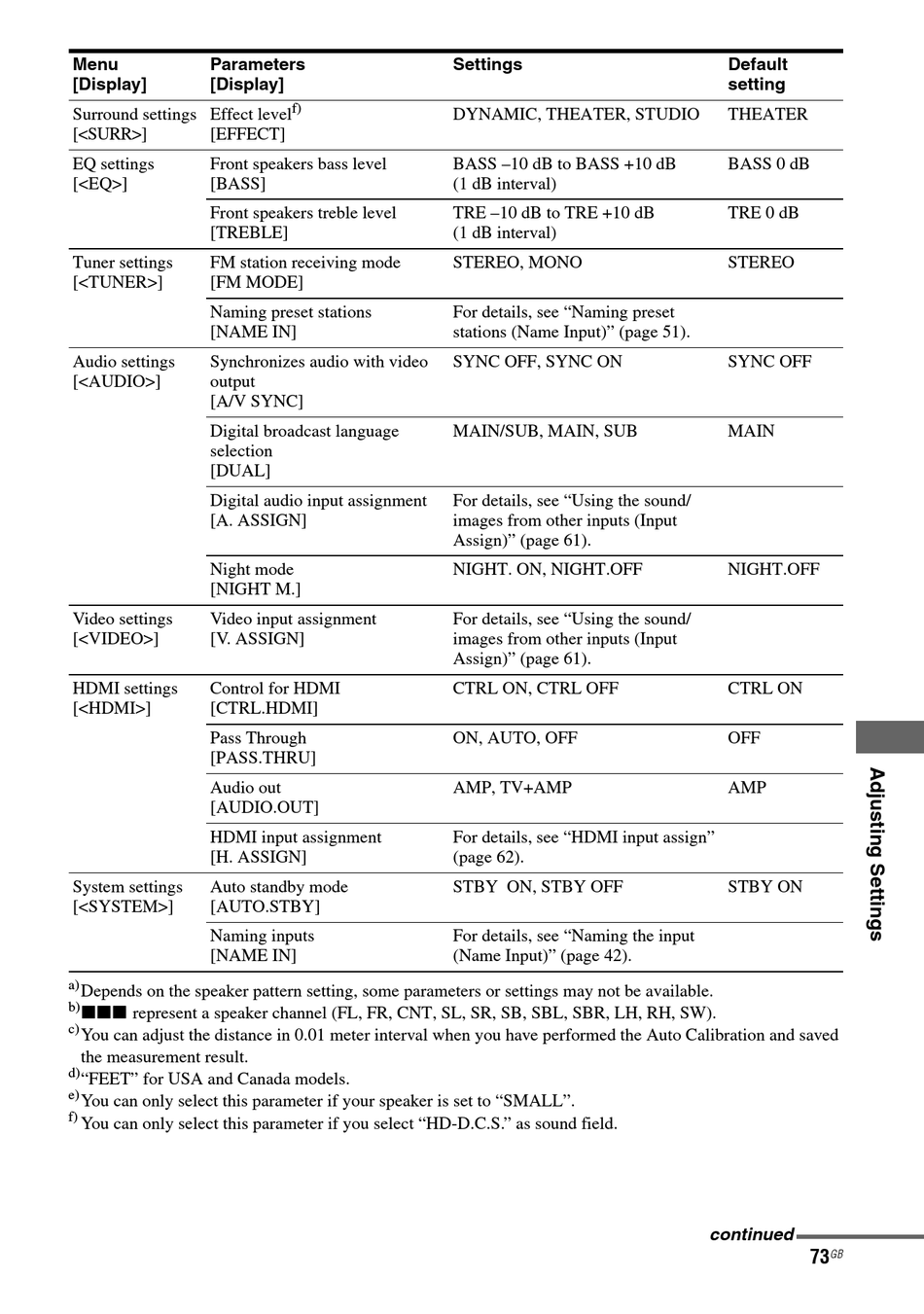

Menu
Parameters
[Display]
[Display]
Surround settings
Effect level
[<SURR>]
[EFFECT]
EQ settings
Front speakers bass level
[<EQ>]
[BASS]
Front speakers treble level
[TREBLE]
Tuner settings
FM station receiving mode
[<TUNER>]
[FM MODE]
Naming preset stations
[NAME IN]
Audio settings
Synchronizes audio with video
[<AUDIO>]
output
[A/V SYNC]
Digital broadcast language
selection
[DUAL]
Digital audio input assignment
[A. ASSIGN]
Night mode
[NIGHT M.]
Video settings
Video input assignment
[<VIDEO>]
[V. ASSIGN]
HDMI settings
Control for HDMI
[<HDMI>]
[CTRL.HDMI]
Pass Through
[PASS.THRU]
Audio out
[AUDIO.OUT]
HDMI input assignment
[H. ASSIGN]
System settings
Auto standby mode
[<SYSTEM>]
[AUTO.STBY]
Naming inputs
[NAME IN]
a)
Depends on the speaker pattern setting, some parameters or settings may not be available.
b)
xxx represent a speaker channel (FL, FR, CNT, SL, SR, SB, SBL, SBR, LH, RH, SW).
c)
You can adjust the distance in 0.01 meter interval when you have performed the Auto Calibration and saved
the measurement result.
d)
"FEET" for USA and Canada models.
e)
You can only select this parameter if your speaker is set to "SMALL".
f)
You can only select this parameter if you select "HD-D.C.S." as sound field.
Settings
f)
DYNAMIC, THEATER, STUDIO
BASS –10 dB to BASS +10 dB
(1 dB interval)
TRE –10 dB to TRE +10 dB
(1 dB interval)
STEREO, MONO
For details, see "Naming preset
stations (Name Input)" (page 51).
SYNC OFF, SYNC ON
MAIN/SUB, MAIN, SUB
For details, see "Using the sound/
images from other inputs (Input
Assign)" (page 61).
NIGHT. ON, NIGHT.OFF
For details, see "Using the sound/
images from other inputs (Input
Assign)" (page 61).
CTRL ON, CTRL OFF
ON, AUTO, OFF
AMP, TV+AMP
For details, see "HDMI input assign"
(page 62).
STBY ON, STBY OFF
For details, see "Naming the input
(Name Input)" (page 42).
Default
setting
THEATER
BASS 0 dB
TRE 0 dB
STEREO
SYNC OFF
MAIN
NIGHT.OFF
CTRL ON
OFF
AMP
STBY ON
continued
GB
73
