Optimum OPTIdrill RD 5 Operating Manual

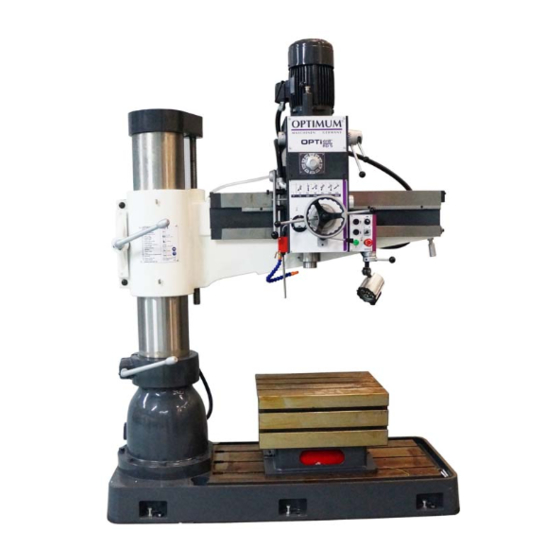

Radial drilling machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OPTIMUM
M A S C H I N E N - G E R M A N Y
Operating Manual
Version 1.0
Radial drilling machine
Item no. 3049050
GB
