TABLE OF CONTENTS WASHER SAFETY ..................3 PROGRAMMED CYCLES..............38 Legend ................... 38 CONTROL PANEL ..................4 Control Panel Overview ............... 4 WASH PROGRAMS ................39 Keypads................... 4 TROUBLESHOOTING ................48 How to Enter Setup Mode ............5 Display Messages............... 48 Main Menu ..................

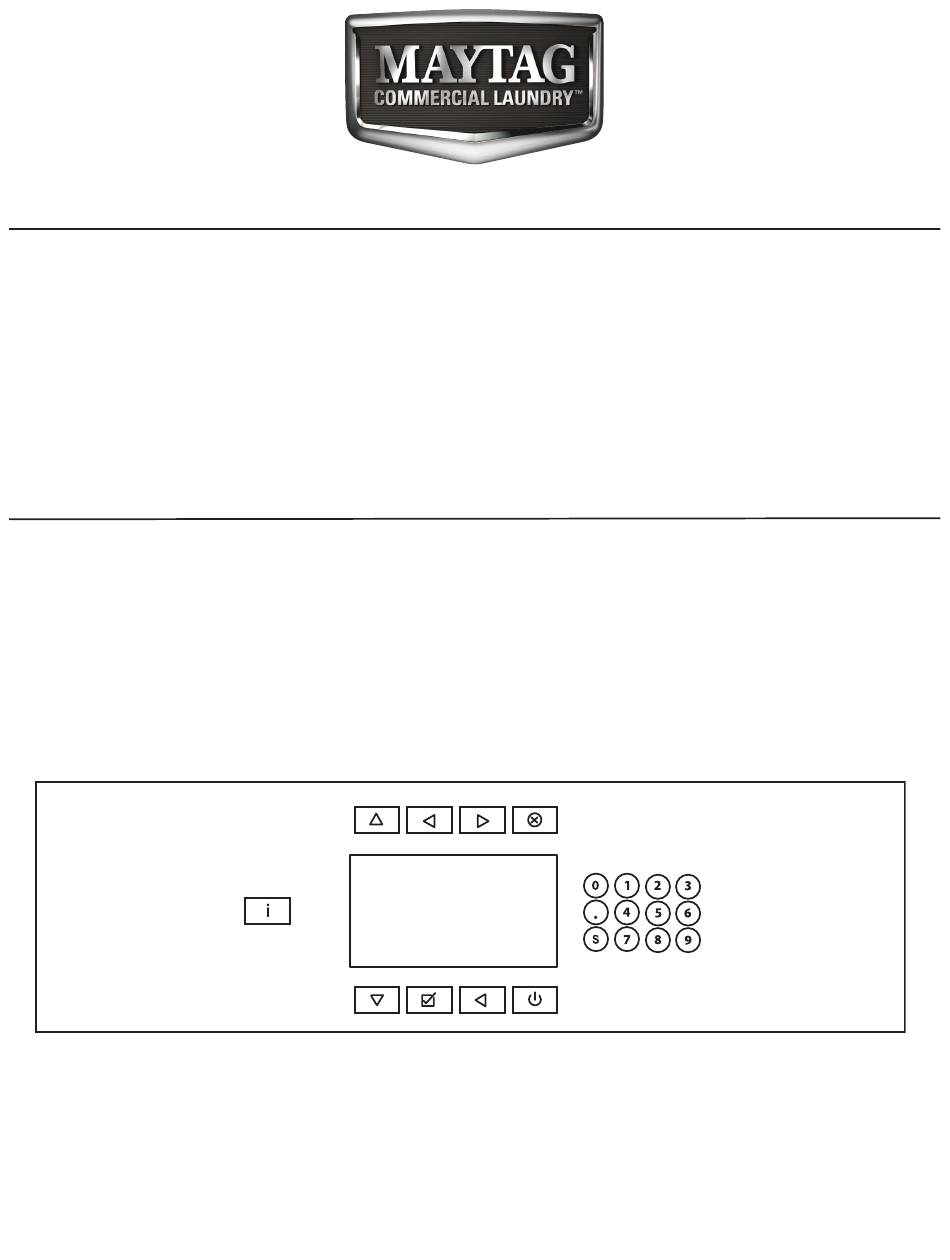

CONTROL PANEL Control Panel Overview SELECT CYCLE LCD Display Program Operation Keypads Keypads KEYPADS Operation Keypads Program Keypads 1 2 3 4 5 Program number selection keypads Information – overview of available wash programs and 6 7 8 9 0 program information Toggles up.
How To Enter Setup Mode To Enter With Program Keypads 1. Press Service/Info. 2. Press Arrow Down several times until you see the screen with the menu selection “To Program Mode Press 0.” Service Info To Program Mode Press 0 3.
GENERAL CONTROL DESCRIPTION Control Features The control offers: Operation Menu: 99 programmable cycles Manually shorten, extend, or stop a cycle 20 pre-programmed cycles Pause a cycle Signal voltage control for external pumps or liquid supply Special function keypads allow direct operation of selected dispensers components (water valves, etc.) Redistribution of garments, if needed, to avoid imbalance...
Each step consists of a Wash Sequence and a Drain/Extraction sequence. Model Machine Type Model Machine Type 99 wash programs with 99 steps is programmable. MXR20 RX80M MXS20 FX80 MXR25 RX105M MXS25 FX105 Programming the Wash Sequence: MXR30 RX135M MXS30 FX135 First choose the type of Wash Sequence.
Programming the Drain sequence: The hot water inlet valves After programming the Wash Sequence, program the Inlet Valve 5 Corresponds with soap box for Prewash. Drain/Extraction sequence. Inlet Valve 6 Corresponds with soap box for Wash – Drain, or powdered detergent. Extraction, or Inlet Valve 8 Corresponds with soap box for Wash –...
Page 10
Programming the Water Level: Programming Supplies: Water level Limits Up to 4 supplies can be programmed at the same time in a sequence. See “Water Setting Values for Different Washers” because these values are different for each Machine Type. If liquid soap pumps were installed on the washer, these pumps will be activated by programming a time value for the The minimum value is above the temperature sensor.
WASHER STARTUP Configuration Menu Perform washer startup after the washer is installed. See the Installation Instructions for your washer. Startup consists of three steps: The Configuration Menu allows you to choose individual washer specific settings. The Configuration Menu can only be accessed 1.
Page 12
Configuration Menu Options and Defaults Menu Item Description Default Range Machine Type The machine type was set by the manufacturer and FX65 List cannot be changed. Machine type settting can only be set on a newly installed control board that has not yet Are You Sure ? No/Yes been configured.
Page 13
Configuration Menu Options and Defaults (continued) Menu Item Description Default Range Minimum Level Start Supply Enter the water level at which the liquid supply pump(s) 0 units 0 – Minimum begin pumping. Refer to “Minimum, Normal, and program level Maximum Water Setting Values.” Temperature Select the units in which temperature will be displayed.
Advanced Menu Hygienic Cycle Menu The Advanced Menu contains special, optional, and infrequently The Hygienic Cycle Menu contains the Strict Temperature Control used applications. Only factory trained personnel should modify and Temperature Calibration Offset functions. Both programs act on items in this menu. temperature control and require accessory heat to function properly.
Page 15
Program Mode Lock Menu The access to the Program Mode can be locked by a password. A password is needed to have access to the Main Menu Screen. Menu Item Description Default Limits Enter a 4 digit value for the Password and press ENTER. 0000–99999 Password .
Page 16
Traceability Menu The Traceability Menu allows information collection regarding cycle parameters. This information can be used to verify that any wash cycle meets given requirements. For further information on the collection and management of this information see the Traceability Management Manual W10243988. Traceability Menu Options and Defaults Menu Item Description...
Page 17
No/Yes board internal memory. (The USB flash disk must be inserted in the USB connector). Wash programs can only be copied into the washer from the same model of washer (e.g. from Model MXS20 into another Model MXS20). Conf. Import...
5. Press ENTER Initialization Menu 6. Press 5 or 6 to select the desired menu item. Initialization Menu allows you to choose standard default program settings for your application. 1. Make sure power is ON and no program is running. 2.
Page 19
Initialization Menu Selections and Defaults (continued) Menu Item Description Default Range Motor Off Time Drum is stopped for 3 seconds for normal action. 3 sec 1–99 sec 12 sec recommended for Gentle wash action. (= suggested values for the program menu) Smart Motion This option decreases the drum RPM during water filling;...
CYCLE PROGRAMMING Specific functions have been implemented in the washer computer Menu Item Description to allow for a detailed programming. Select Program N: Select program 1 to 99. Functions for the Complete Program: Program Number: Select the wash program. Name: _ _ _ _ _ _ _ _ _ The Program Name describes the Name: Insert or modify the name for the program.
Program Step Function Edit Step Menu Prog 1: Hot INTENS Select Step N: 1 Add … Insert … Delete … Edit … View … Exit Menu Item Description Select Step N°: 1 Insert the desired step number. Step 1 to 99 can be selected. If the number is not accepted, this means that the step is not available.
Program the Wash Cycle Step number Program number STEP + name Wash Spin part Program 1: HOT INTENS Step 2 Spin Wash Time: [4.0-20.0] Menu Value menu Original Limits Position item item value menu item menu item This section provides a detailed explanation about programming the Wash Sequences. Each program step contains a Wash segment and a Drain/Spin segment.
Page 24
Selecting the wash cycle If Add Step, Edit Step, or Insert Step are selected, choose the Wash Prewash Sequence now. Spin Type: Prewash Wash Prewash Cool Down Rinse Final Rinse Soak Spray No Wash For a new step, as a default, the first displayed function is the Wash Sequence. Press LEFT ARROW or RIGHT ARROW to choose the desired sequence.
Page 25
The Prewash Sequence Prewash Wash Cool Down Rinse Final Rinse Soak Spray No Wash Menu Item Description Default Limits Temperature The water temperature. 104°F 33.8–113°F (40°C) (1–45°C) Inlet The suggested Inlet Valves are related to the temperature and the Soap 11–15 11–18 Box to be used.
Page 26
The Wash Sequence Wash Prewash Cool Down Rinse Final Rinse Soak Spray No Wash Menu Item Description Default Limits Temperature The water temperature. 140°F 33.8–197.6°F (60°C) (1–92°C) Inlet The suggested Inlet Valves are related to the temperature 12-13-16-18 11–18 and the Soap Box to be used. NOTE: If you insert other Inlet Valves than the suggested ones, problems can occur at the water fill process.
Page 27
The Cool Down Sequence Cool Down Prewash Wash Rinse Final Rinse Soak Spray No Wash n After a hot wash you can program a Cool Down Sequence to avoid temperature shock and shrinking of the garments. n The drain step after the hot wash must be put on NO DRAIN. n No inlets are programmable: –...
Page 28
The Rinse Sequence Rinse Prewash Wash Cool Down Final Rinse Soak Spray No Wash n No temperature can be programmed because a Rinse is only possible with cold water. Menu Item Description Default Limits Inlet 3 Inlets can be programmed. 11, 12, 17 1, 2, 3, 4, 7 The suggested Inlet Valves are related to the...
Page 29
The Final Rinse Sequence Final Rinse Prewash Wash Cool Down Rinse Soak Spray No Wash n Only for top dispenser washers. n No temperature can be programmed because a Final Rinse is only possible with cold water. Menu Item Description Default Limits Inlet...
Page 30
The Soak Sequence Soak Prewash Wash Cool Down Rinse Final Rinse Spray No Wash Menu Item Description Default Limits Temperature The water temperature 104°F 33.8–113°F (40°C) (1–45°C) Inlet The suggested Inlet Valves are related to the 11–17 11–18 temperature and the Soap Box to be used. IMPORTANT: If you insert Inlet Valves other than those suggested, problems can occur at the water fill process.
Page 31
The Spray Sequence Spray Prewash Wash Cool Down Rinse Final Rinse Soak No Wash n Water or Liquid is injected at Distribution or Low Spin Speed n No standard water inlets can be programmed in this function. n The liquid will be injected based on soap supply programming. Menu Item Description Default...
Program the Drain Step A Drain/Extraction step is required after each wash step. NOTE: You do not need to program a drain sequence before an extraction sequence because the water will automatically drain during the extraction sequence. SELECTING THE DRAIN/EXTRACTION STEP The number of drain functions and options depends on the Machine Type.
Page 33
The Extract Sequence Extract Drain No Drain Static Drain Reversing Drain Menu Item Description Default Limits Drain Valve Only available on washers with both a normal Open and 1–2 normal Closed Drain valve. The suggested RPM depends on the Machine Type. –...
Page 34
The Reversing Drain Sequence Drain Extract No Drain Static Drain Reversing Drain The drum is reversing while the water is drained. Menu Item Description Default Limits Drain Valve Only available on washers with both a normal Open and 1–2 normal Closed Drain valve. The suggested RPM depends on the Machine Type.
OPERATION Start a Laundry Load Cycle Options The washer must be properly installed before operation. Time Delay See the Installation Instructions for your washer. To enter a delay time is performed during washer startup: Configuration and Initialization Menu must have the correct 1.
Cool Down Function Program End and Unloading Automatic cool down: This function avoids thermal shock Program End in the washer. For Hot washes above 149°F (65°C), cold water is added at the end of the step. The time on the display counts down until 0. Once the program cycle is finished, UNLOAD is displayed.
Wait State Special Function Keypads It is possible for the washer computer to interrupt the normal washer operation. You can recognize the wait state by “Wait” appearing on The Special Function keypads “Info” and “Service” are dedicated to the display and a decreasing counter. This will occur when the power supply the operator with more information about the wash programs has been switched off and on during a running wash cycle.
PROGRAMMED CYCLES The washer computer contains 20 pre-programmed Standard Wash Water Level Programs. (Standard Programs: 1 to 20). NL: Normal Low level Programs 21 to 57 are special programs for North America. NH: Normal High level NOTE: The programmed cycles are given as an example only. EL = Economic Low Level Contact your soap supplier for assistance creating custom EH = Economic High Level...
TROUBLESHOOTING IMPORTANT: Display Messages It is the operator’s responsibility to take the necessary precautions if the drain valve does not function and if there is Various messages may appear on the display at the start, still hot water in the tub at the end of the wash cycle. The actual during, or at the end of a washing cycle.
Fault Code Overview CODE MESSAGE FAILURE FAULT OCCURRENCE ACTION No Drain End Drain failure Draining Full Stop + Tumble Tilt Fault Safety switch activated Whole cycle, revolutions Full Stop + Tumble under distribution revolutions level Imbalance Safety switch activated Spin Skip + Continue during transition from distribution into spin...
Page 50
Fault Code Overview (continued) CODE MESSAGE FAILURE FAULT OCCURRENCE ACTION SoapTimeOut Incorrect signal for liquid Whole cycle Full Stop + Tumble detergent dispensing No Reheat Heating failure Wash step (traceability only) Full Stop + Tumble No Refill Refill failure Wash step (traceability only) Full Stop + Request for Continue Power Interruption No successful wash cycle...
SELECT CYCLE is displayed. Service Menu Enter the Setup Mode. (See page 5.) In the Service Menu you have some extra utilities: The Main Menu is now available. The Software Version Number. Press ARROW DOWN to select the Service Menu. ...
Page 52
Technical Intervention is needed. ATTENTION: Special care has been taken at the initialization of the parameters of the Frequency Inverter. Maytag is not responsible for poor performance of the washer if the owner has installed new parameter settings in the Inverter that do not correspond with the original settings at the factory.
Page 53
DIAGNOSTIC PROGRAM The purpose of the Diagnostic Program is to test the washer Service Menu Service Menu functions one by one. • Select diagnos • Select diagnos HOW TO GET INTO THE DIAGNOSTIC MENU Diagnostic Prog … Diagnostic Prog … 1.
• Check the applied motor voltage the belt • Check if the motor is still functional • Repair the motor power supply circuit • Check the Inverter • Change the motor if needed • Send a request for more information to Maytag...
EXTERNAL COMMUNICATION PROBLEMS The washer communicates with the PC (TraceTech SW) via the RS485 line. If the external communication is not working, check the connection between the PC and washer. Check also if you have selected the correct washer communication address. Error Messages Explanation FAILURE 2: DRAIN FAILURE Failure 2 occurs when the electronic timer detects that the water is not drained after 3 minutes in a Drain or Spin Sequence.
Page 57
FAILURE 5: SAFETY SWITCH ACTIVATED AT HIGH REVOLUTIONS Failure 5 occurs when the safety switch is activated during high spin. This failure indicates that there probably is a mechanical defect. DIAGNOSE: 1. Check the position of the safety switch. If the safety switch is not correctly mounted, install the safety switch properly.
Page 58
FAILURE 9: DOOR LOCK OPENING FAILURE AT END OF CYCLE At the end of the cycle the Door Lock coil is switched off and the door lock switch must open its contact. If within 3 minutes the door lock switch does not change state, Failure Message 9 will be displayed. As long the contact stays closed, Failure Message 9 remains on the display.
Page 59
FAILURE 13: HEATING FAILURE If the heater elements are not functioning: message 13 will be displayed. The message is generated when the temperature is not raising 37°F (3°C) 10 minutes time. DIAGNOSE: 1. Check if the heating contactor is activated. If the heating contactor is not activated, repair the wiring or replace the contactor.
Page 60
FAILURE 26: UNDEFINED MITSUBISHI FREQUENCY INVERTER ERROR CODE Occurs if the Inverter gives an error message which is not recognized by the washer computer. Updating the washer computer software might help discover what Inverter error code really occurred. Inform Maytag.
Page 61
Repair/clean what is necessary. 5. Check if the fault is persistent. If the fault is persistent, contact Maytag. FAILURE 29: OV3 (Mitsubishi)/E.OP (KEB) TIME OUT Fault 29 occurs when the washer computer can not handle the OV3 (Mitsubishi) fault of the Frequency Inverter. This fault is a specific fault of the Frequency Inverter caused by an overvoltage.
Page 62
Inverter (see fault 27). 3. Write the parameters once more into the Inverter. If the fault is persistent, contact Maytag. FAILURE 32: VERIFICATION FAULT INVERTER Fault 32 occurs if an incorrect parameter is detected at the verification of the Inverter Parameters. After writing the Inverter Parameters in the Inverter, the parameters are verified one by one to ensure that they have been correctly loaded.
Page 63
FAILURE 38: NO RECYCLE WATER Failure 38 occurs when the electronic timer detects that the Water Recycle tank is empty. DIAGNOSE: 1. Check the water level from the water recycle tank. Add water to the water recycle tank. FAILURE 39: EMPTY SOAP SUPPLY BOX Failure 39 occurs when the electronic timer detects that the Soap Reservoir is empty.
Page 64
FAILURE 80: TIME IS OUT FOR DISPENSING LIQUID DETERGENTS Failure 80 occurs when the On Hold Signal of the Liquid Supply Central Dispensing System stays high for more than 1 hour. At Input 16 of the washer computer, the Liquid Supply Central Dispensing System sends a “High” signal that pauses the washer during the Wash Sequence for adding Liquid Supplies.
Page 65
FAILURE 95: WATCH DOG If the watch dog has been activated, message 95 is logged in the Error log register. If this occurs often, contact a technician. FAILURE 100: WEIGH NOCOMM Washers with Weighing system only. Failure 100 occurs when the communication between washer computer and signal conditioner weighing system (amplifier module) is interrupted.
Page 66
FAILURE 103: WEIGH BALANCE Washers with Weighing system only. Failure 103 occurs when the measured weight is not equally divided over the four load cells. Check the load cell Weighing Calibration screen (Advanced Menu) to obtain more information about the function of each individual load cell. FX180, FX240, FX280: Load on each load cell must be in the range of 10–40%.
Page 67
FAILURE 300-353: MITSUBISHI INVERTER ALARM MESSAGE Always make sure you have the correct Frequency Inverter Parameter settings in the Inverter, especially when you have replaced the Inverter. If unsure go to the Configuration Menu and select “Inverter Menu…”, set the correct Machine Type and supply voltage; then load the parameters from the washer computer to the Inverter again.
Page 69
If too high: reduce the supply voltage. 3. Check if the fault is persistent. If the fault is persistent, contact Maytag. DIAGNOSE FAILURE 306: THT-ERROR (INVERTER OVERLOAD) If the output current of the Frequency Inverter is abnormal high for some time, the Inverter will go into THT-alarm state.
Page 70
This error message is displayed when an attempt to write on a USB flash disk fails. FAILURE 563: IMPORT FAILED This error message is displayed when an attempt to read from a USB flash disk fails. FAILURE 600-628: SOFTWARE ERRORS Software errors must not occur. If a software error message occurs inform Maytag.
These materials could damage the touch pad. INFORMATION FOR SERVICE: The software version, along with the washer serial number (including order the code), must be provided in all correspondence or inquires to Maytag. SPECIFICATIONS: Voltage: 200-240 Vac, 50/60 Hz Power:...
Replacing the Programmer Boards Installing New Software 1. Switch off the main power supply. Open the front console. 1. Switch off the main power supply. Open the front console. 2. Remove the connectors from the programmer boards 2. Insert a flash drive containingn the software into the USB (including the connector between the CPU and I/O boards) connector E of the CPU board.
WASHER SPECIFICATIONS p MACHINE DATA • type ......• phases ......• serial number ......• frequency ......• voltage ......• output ......• water supply o cold soft o cold hard o hot soft • heating o electrical…… kW o hot water o steam p ELECTRONIC DATA...
APPENDIX Table A-1: Conversion Between Celsius and Fahrenheit °F = (1.8 x °C) + 32 Common Celsius to Fahrenheit Conversions ºC ºF ºC ºF Table A-2: Conversion Between Kilograms and Pounds Pounds (lbs.) = kg x 2.2 Common Kilogram to Pound Conversions lbs.
Maximum Normal Low Normal High Washer Type Programmable Programmable Level Level Level Default value Default value Level MXS20 MXS25 MXS30 MXS40 MXS55 MXS65 MXR20 MXR25 MXR30 MXR40 MXR55 MXR65 *Levels are in arbitrary units. Refer to Table A-4 for corresponding water volumes.
Table A-4: Programmable Water Level Units Related to the Amount of Water in the Tub Washer MXS20 MXS25 MXS30 MXS40 MXS55 MXS65 Type 2.1 gal. (8 l) 3.8 gal. (14.5 l) 2.9 gal. (11.1 l) 2.6 gal. (10 l) 4.5 gal. (17.5 l) 3.7 gal.
Page 77
Table A-4: Programmable Water Level Units Related to the Amount of Water in the Tub (cont.) Washer MXR20 MXR25 MXR30 MXR40 MXR55 MXR65 Type 2 gal. (7.6 l) 2.4 gal. (9.1 l) 2.2 gal. (8.2 l) 2.5 gal. (9.6 l) 3.1 gal.
