Introduction - AXIOMTEK CAPA322 User Manual

CAPA322 3.5" Board
Section 1

Introduction

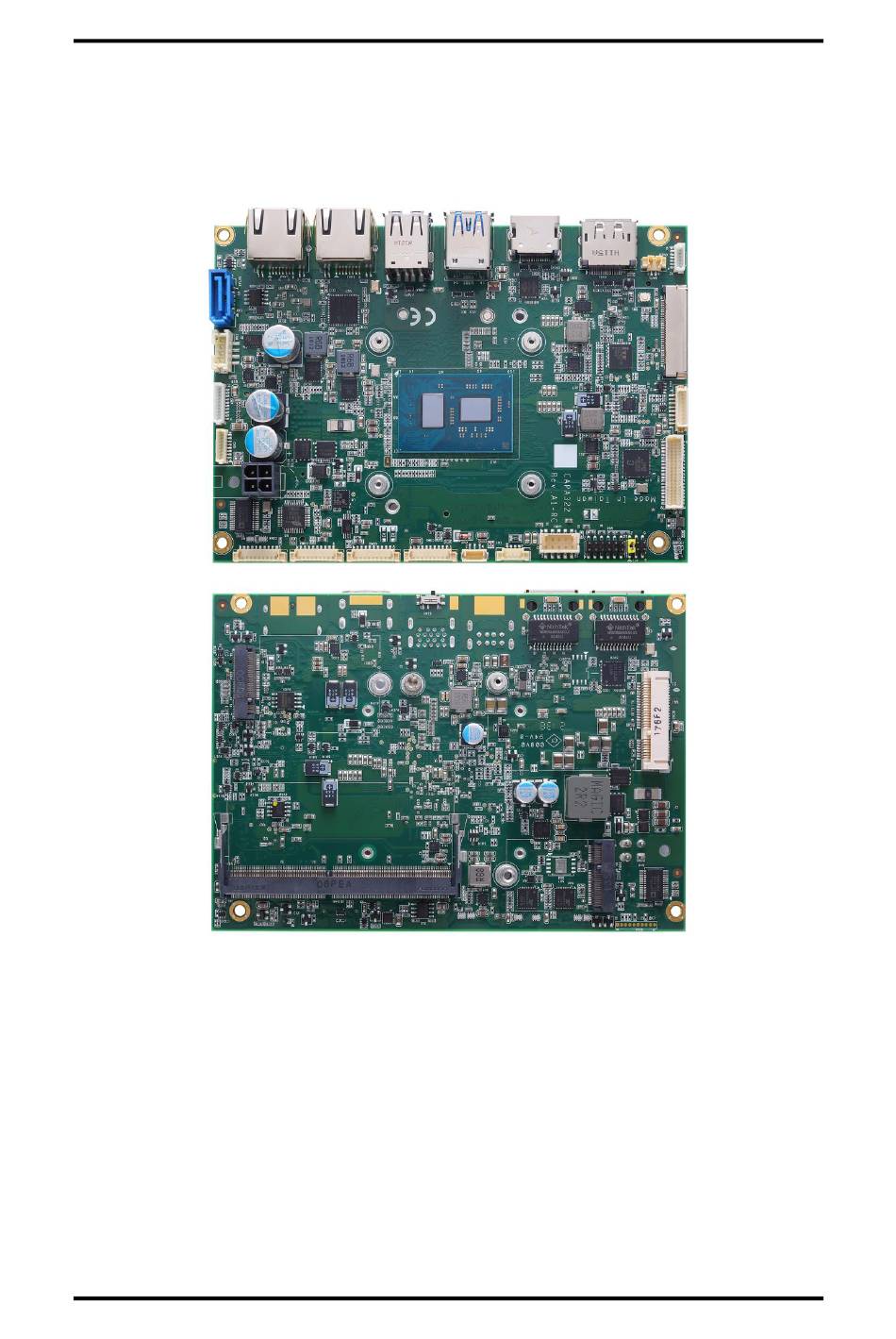

The CAPA322 is a 3.5" embedded board with Intel Celeron processor J6412 and N6210 &
® ®
Atom ® x6413E processor that deliver outstanding system performance through
high-bandwidth interfaces, multiple I/O functions for interactive applications and various
embedded computing solutions.
It has one 260-pin unbuffered SO-DIMM socket for single channel DDR4 3200MHz memory
with maximum memory capacity up to 32GB. There are one Gigabit Ethernet port, one 2.5
Gigabit Ethernet, one SATA port with transfer rate up to 6Gb/s, two USB 3.2 Gen2 ports, and
four USB 2.0 ports that can achieve the best stability and reliability for industrial applications.
Additionally, it provides you with unique embedded features, such as four serial ports (two
RS-232/422/485 and two RS-232) and 3.5" form factor that applies an extensive array of PC
peripherals.
Introduction 1
