IMB523 / 524 / 525 LGA1151 ATX Motherboard
Chapter 1
Introduction

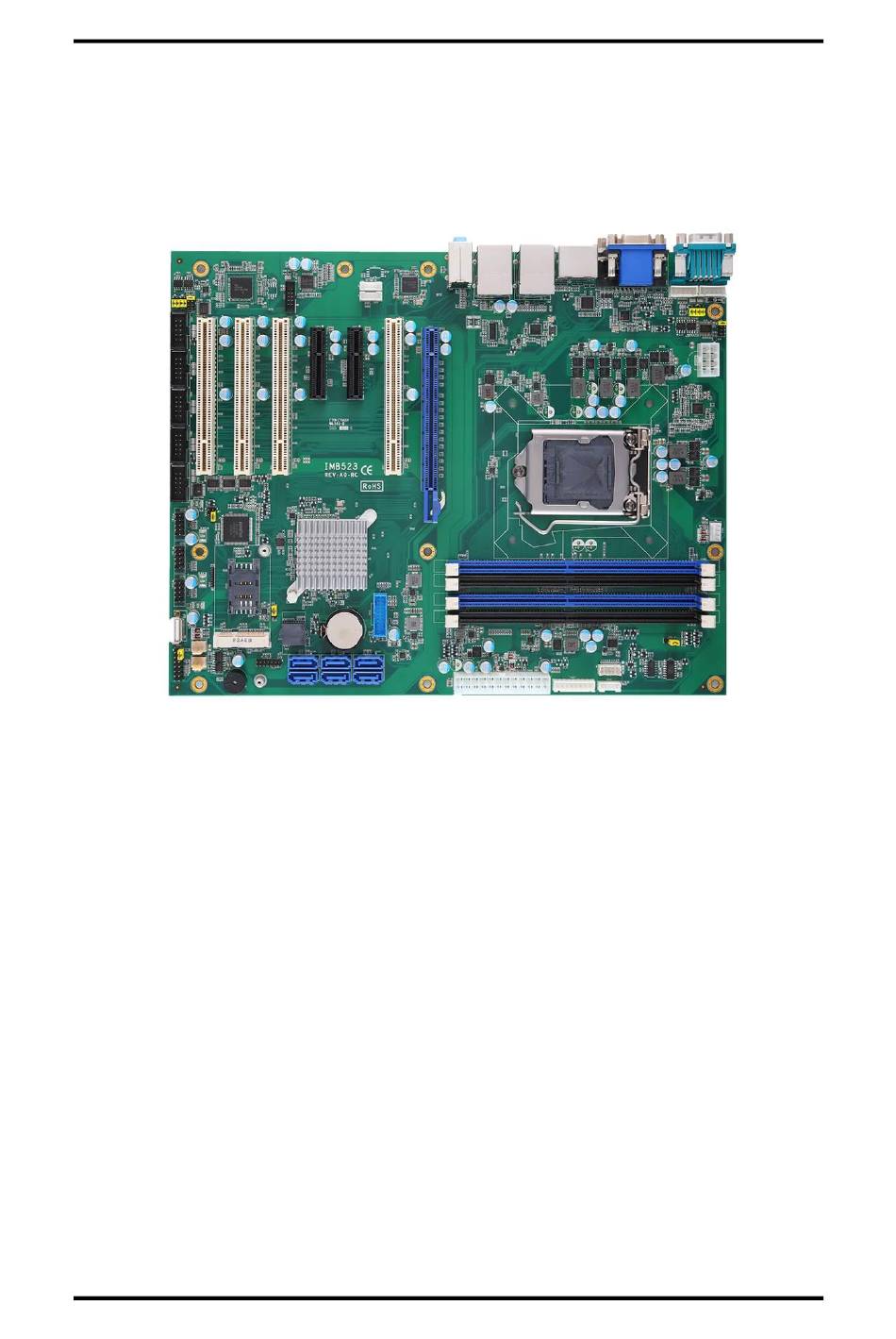

The IMB523 / 524 / 525 is an advanced ATX industrial motherboard based on the 8th
Generation Intel® Core™ i7/ i5/ i3/ Pentium® and Celeron® processors (Coffeelake) in an
LGA1151 socket and comes with an Intel® Q370 / H310 / C246 chipset. Specially designed for
optimal computing and visual performance, the IMB523 / 524 / 525 motherboard is an ideal
solution for major industry applications ranging from financial modeling to designing complex
buildings and vehicles. With its built-in Intel® HD Graphics GFX, this industrial grade
motherboard delivers superb 3D visual performance and supports triple display through DVI-D,
HDMI and VGA ports to meet professional-grade CAD and media/entertainment needs.
In addition, the IMB523 / 524 / 525 supports Intel® Turbo Boost 2.0 technology, Intel®
Hyper-Threading technology, Intel® HD Graphics with DX11, 64GB DDR4 2400/2666MHz
memory (Q370 / C246), 32 GB DDR4 2400/2666MHz memory (H310), and a PCI-Express 3.0
x16 slot. It also features Intel® Active Management Technology 12 (iAMT) (Q370 / C246),
SATA RAID, as well as PCI Express expansion interfaces, making it specifically suited for
applications with added security features.
