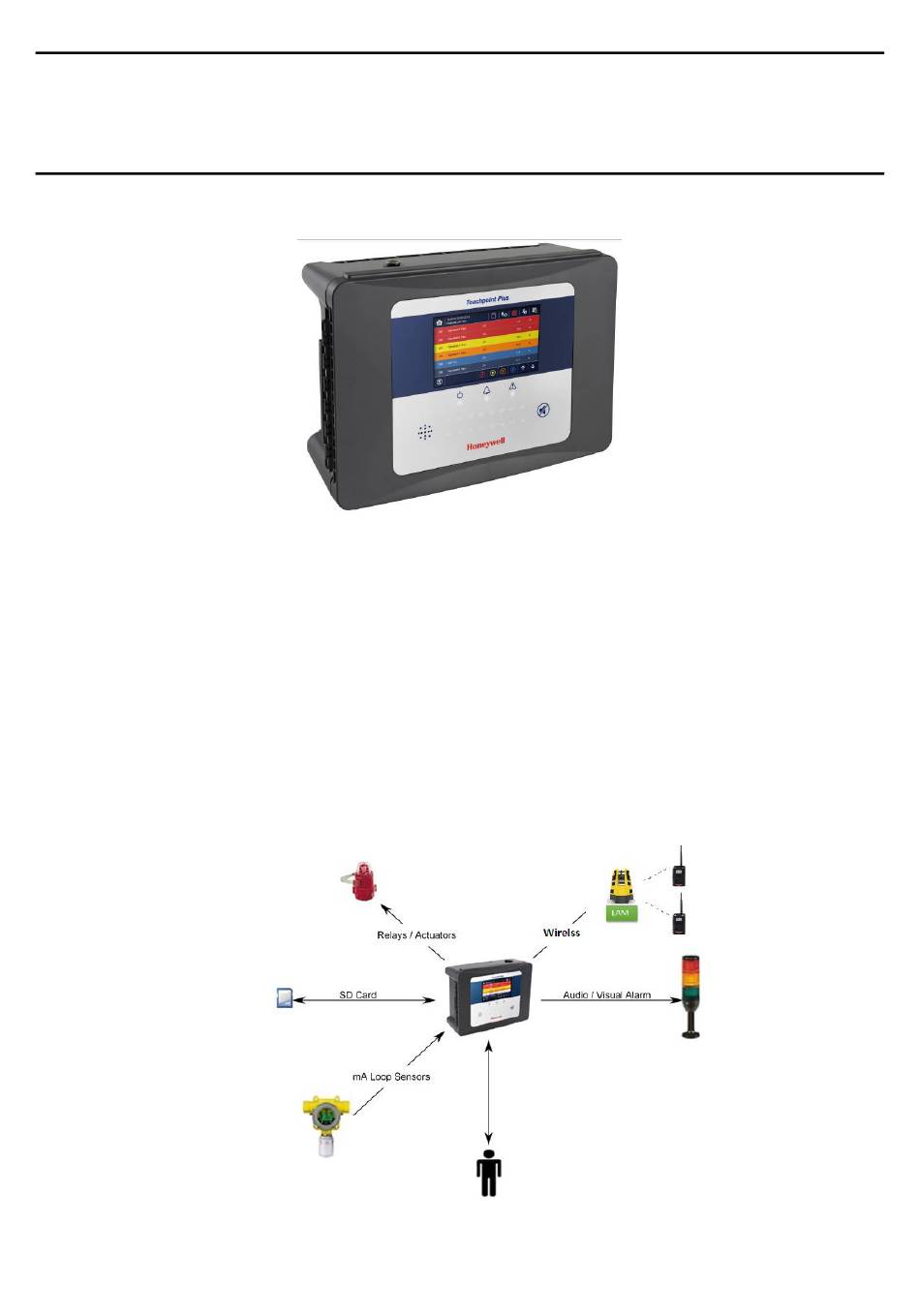

Chapter 3 - System General Description; Figure 6. Touchpoint Plus Wall-Mounted Controller; Figure 7. Typical Installation Options - Honeywell Touchpoint Plus Wireless Technical Handbook

Technical handbook - 158 pages
User manual - 71 pages
Safety manual - 8 pages

Table of Contents

3020M5001_Iss 1_07/18

Chapter 3 – System General Description

The Touchpoint Plus is an entry level (or upgrade) touch-screen digital Controller for general industrial and

commercial gas detection systems. It has eight input channels, with a further eight channels available through

an expansion unit*.

It can handle a wide range of milliamp, millivolt, and catalytic sensors through analogue inputs, and it can

control various outputs such as audible and visible signals and solenoid valves.

The cabinets are constructed from high-impact plastic and have fully-sealed, easy opening access. They are

supplied with a wall mounting or can be directly mounted to any solid vertical surface or rack. Cable entry is

via entry glands on the lower side.

Touchpoint Plus is rated IP65, which means that it is dustproof and can be subjected to low-pressure water

without significant ingress. This makes it particularly suited to offices, control rooms and unheated boiler

rooms.

*Currently Touchpoint Plus is only available as a stand-alone Gas Detection System, but please contact

Honeywell Analytics for details about future upgrades. (The expansion unit is currently planned for release in

end of 2015.)
