HONEYWELL EXCEL 5000 OPEN SYSTEM
GENERAL

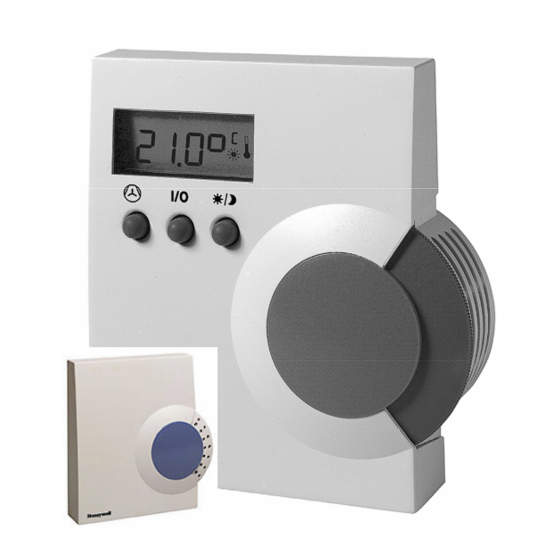

The T7560A,B Digital Wall Modules (DWM) display and
provide space temperature, setpoint, Occupied/Unoccupied
override, and fan mode/speed selection for the Honeywell
Excel 10 W7750, W7751, W7752, W7753, W7761, W7762,
W7763, and Excel 600, 500, 100, 50, 20 Controllers, as
applicable (a software module ModAL is available to adapt
the wall module to the respective Excel 20, 50, 100, 500, 600
controller. See T7560A,B,C Installation Instructions (product
literature no.: EN1B-0146GE51) for details.
Using the three buttons, the user can change room
temperature setpoint, fan mode/speed, initiate/cancel bypass,
and change configuration information such as the DWM's
engineering units.
The T7560C Digital Wall Module (see inset above) has no
user interface (e.g. LCD, buttons, or setpoint dial) and issues
only temperature and humidity values.
These wall modules are not compatible with Honeywell
W7751A,C,E,G (VAV1) and W7752D1 (FCU1) Controllers.
® U.S. Registered Trademark
Copyright © 2008 Honeywell Inc. • All Rights Reserved
T7560A,B,C Digital Wall Module
FEATURES
Fully compatible with all current Excel 10 and Excel
20 to 600 controllers.
Low power consumption.
Integral 20kΩ NTC sensor.
Separate mounting base for easy installation.
Tamper-resistant locking cover.
IP30 housing.
T7560A and B, only:
LCD display continuously shows current space
-
temperature, occupied/unoccupied/standby mode,
fan status/mode, humidity, as configured.
Push-button interface for full navigation and
-
change control of wall module functions.
Single-touch occupied/unoccupied override.
-
Setpoint dial for setpoint adjustment.
-
Fan Speed/Mode commandable from buttons.
-
Selectable °F/°C temperature display.
-
Selectable setpoint type, absolute or relative.
-
SPECIFICATION DATA
EN0B-0237GE51 R0208

Advertisement

loading

  Related Manuals for Honeywell T7560B

  Summary of Contents for Honeywell T7560B

  • Page 1 (e.g. LCD, buttons, or setpoint dial) and issues only temperature and humidity values. These wall modules are not compatible with Honeywell W7751A,C,E,G (VAV1) and W7752D1 (FCU1) Controllers. ® U.S. Registered Trademark Copyright © 2008 Honeywell Inc. • All Rights Reserved EN0B-0237GE51 R0208...
  • Page 2: Specifications

    The DWM is furnished with a 20kΩ NTC temperature sensor that follows a specific temperature-resistance curve. switch position resistance (Ω) fan behavior See Fig. 1. Honeywell controllers used with the DWM auto 1681.4 ±100 runs as scheduled employ an algorithm that provides readings close to the actual temperature.
  • Page 3: Mounting Options

    T7560A,B,C DIGITAL WALL MODULES Table 5. Setpoint values vs. resistances (Celsius) Field Wiring setpoint nom. res. setpoint nom. res. • 16 to 22 AWG (1.5 to 0.34 mm ) depending on rel./K (Ω) abs./°C (Ω) application. • 18 AWG (1.0 mm ) min.
  • Page 4 W7763 CHC General Set Fan Speed The T7560A and T7560B feature three buttons, a setpoint The manually set fan speed is represented by a bargraph. dial, and the LCD display (see Fig. 2). This section describes Depending on configuration, the fan speed can be set as the functions of these elements.
  • Page 5: Humidity Display

    T7560A,B,C DIGITAL WALL MODULES Set Fan Mode Override Standby mode (from central) The UNIT ENABLE button switches the fan mode between (HALF-SUN FLASHING) AUTO and MANU OFF: AUTO AUTO (fan speed from controller) © Wink mode (NEURON ID sent) (SUN/MOON/SNOWFL. FLASHING) (Only with FCU, HYD, CHC) MANU OFF (fan off)
  • Page 6 Order quantity: set of 5 pieces Manufactured for and on behalf of the Environmental and Combustion Controls Division of Honeywell Technologies Sàrl, Ecublens, Route du Bois 37, Switzerland by its Authorized Representative: Automation and Control Solutions Honeywell GmbH Böblinger Straße 17...
