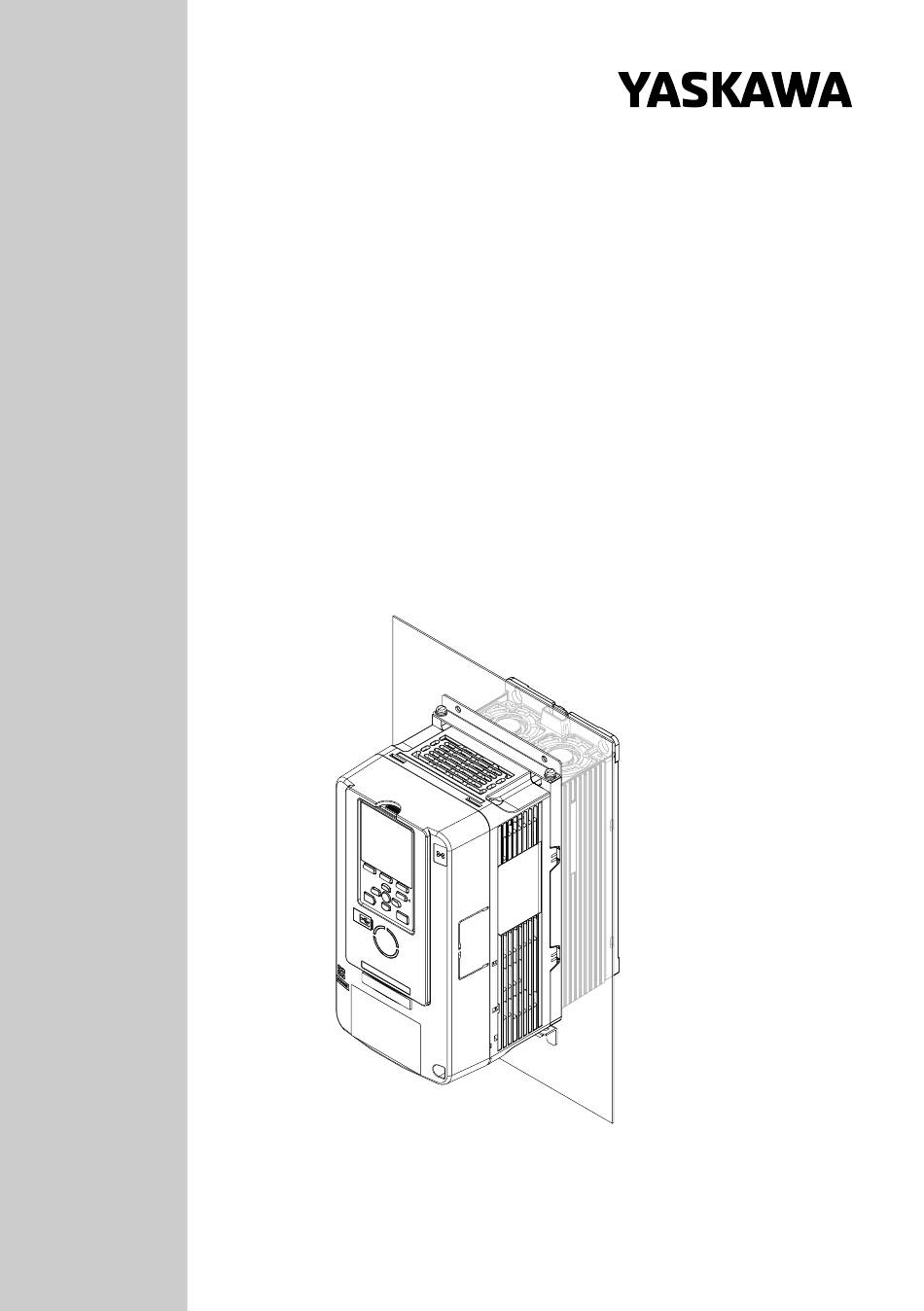

- Page 1 YASKAWA AC Drive GA700/GA800/CH700/CR700/ LA700/ES700 External Heatsink Installation Installation Manual To properly use the product, read this manual thoroughly and retain for easy reference, inspection, and maintenance. Ensure the end user receives this manual. MANUAL NO. TOEP C720600 03F...
- Page 2 This Page Intentionally Blank YASKAWA TOEP C720600 03F External Heatsink Installation Installation Manual...
-
Page 3: Table Of Contents
Revision History ............26 YASKAWA TOEP C720600 03F External Heatsink Installation Installation Manual... -
Page 4: Receiving
Refer to the Technical Manual for more information about YASKAWA AC Drive programming and parameter settings. Manuals You can download drive manuals from the Yaskawa product and technical information website shown on the back cover of this manual. ◆ Glossary... -
Page 5: Section Safety
• If you damage or lose these instructions, contact a Yaskawa representative or the nearest Yaskawa sales office on the rear cover of the manual, and tell them the document number on the front cover to order new copies. -
Page 6: Receiving
900-193-209-002 M5 × 14 pan head screw: #2 900-193-209-003 M6 × 14 pan head screw: #2 Install the Attachment ◆ Necessary Tools To install the attachment, use a Phillips screwdriver #2. YASKAWA TOEP C720600 03F External Heatsink Installation Installation Manual... -
Page 7: Drive Mounting Dimensions And Panel Cut-Out Dimensions
4002, 4003, 4005 2014, 2018, 2025, 2033 4006, 4007, 4009, 4015, 4018 2047 4024, 4031 2060, 2075 CH700 Table 5.1 Table 5.4 4039 CR700 4045 2088 4060 2115 4075, 4091 2145, 2180 YASKAWA TOEP C720600 03F External Heatsink Installation Installation Manual... - Page 8 4012, 4019, 4023 2059 4030, 4039 2075, 2094 4049 4056 2110 LA700 Table 5.1 Table 5.4 4075 ES700 2144 4094, 4114 2181, 2225 4140, 4188 2269, 2354 4225, 4270, 4325 2432, 2519 4380 YASKAWA TOEP C720600 03F External Heatsink Installation Installation Manual...
-
Page 9: Drive External Dimensions
(12.95) (5.28) (2.68) (2.87) (5.51) (5.51) (12.52) (8.66) (15.12) (5.51) (3.43) (3.62) (7.56) (7.56) (14.61) (8.66) (15.12) (5.51) (4.17) (4.37) (7.56) (7.56) (14.61) (9.45) (15.75) (6.54) (4.49) (4.69) (7.68) (8.03) (15.16) YASKAWA TOEP C720600 03F External Heatsink Installation Installation Manual... - Page 10 (30.43) Figure 5.2 Drive External Dimensions Table 5.2 Drive External Dimensions (Model Group K) Dimensions mm (in) Model Group 1140 1110 (20.08) (44.88) (10.24) (8.66) (8.86) (17.72) (15.91) (7.05) (8.86) (43.70) YASKAWA TOEP C720600 03F External Heatsink Installation Installation Manual...
- Page 11 Figure 5.3 Drive External Dimensions Table 5.3 Drive External Dimensions (Model Group L) Dimensions mm (in) Model Group 1363.8 1332 (29.9) (53.7) (9.65) (7.67) (7.87) (26.8) (7.09) (12.6) (24.4) (5.91) (6.3) (52.4) YASKAWA TOEP C720600 03F External Heatsink Installation Installation Manual...
-
Page 12: Panel Cut-Out Dimensions
(0.28) (0.98) (0.24) (8.43) (12.56) 14.5 19.5 19.5 (7.68) (8.03) (0.57) (0.32) (15.16) (0.77) (0.30) (0.77) (0.30) (8.82) (13.62) 34.5 (6.69) (8.27) (1.36) (0.32) (17.17) (0.79) (0.32) (0.79) (0.24) (9.41) (15.59) YASKAWA TOEP C720600 03F External Heatsink Installation Installation Manual... - Page 13 Dimensions mm (in) Mode Grou 1110 1042 (17.72 (15.91 (43.70 (19.13 (41.02 (0.71) (0.47) (7.05) (8.86) (1.34) (0.59) (1.34) (0.59) Gasket dimensions. Make sure that the gasket is larger than the specified dimension. YASKAWA TOEP C720600 03F External Heatsink Installation Installation Manual...
-
Page 14: Kit Models And Installation Procedure
Crush Hazard. When you use a crane or hoist to lift the drive during installation or removal, prevent more than 1.96 m/s (0.2 G) vibration or impact. Too much vibration or impact can cause serious injury or death from falling equipment. YASKAWA TOEP C720600 03F External Heatsink Installation Installation Manual... - Page 15 900-193-209-002 Procedure A 4030, 4039 LA700 2075, 2094 ES700 900-193-209-003 4049, 4056 2110, 2144, 2181, 2225, 2269, 2354, 2432, 2519 Procedure B 4075, 4094, 4114, 4140, 4188, 4225, 4270, 4325, 4380 YASKAWA TOEP C720600 03F External Heatsink Installation Installation Manual...
-
Page 16: Use The External Heatsink Installation Kit (Procedure A)
Use the screws supplied in the kit to install the attachment in the position shown in Figure 5.9. Tighten the screws to a correct tightening torque: • M5 × 14 pan head screws: 1.96 N∙m to 2.53 N∙m (17.35 lbf∙in to 22.39 lbf∙in) YASKAWA TOEP C720600 03F External Heatsink Installation Installation Manual... - Page 17 Install the drive in the cut opening of the enclosure panel and use screws to safety it to the enclosure panel. Figure 5.10 Install the Drive into the Opening of the Enclosure Panel YASKAWA TOEP C720600 03F External Heatsink Installation Installation Manual...
-
Page 18: Use The Mounting Bracket Supplied With The Drive (Procedure B)
Figure 5.11 Remove the Mounting Bracket Install the mounting bracket in the position shown in Figure 5.12. Refer to Table 5.8 and tighten the screws to a correct tightening torque. Figure 5.12 Attach the Mounting Bracket YASKAWA TOEP C720600 03F External Heatsink Installation Installation Manual... - Page 19 CH70x2346 - 2415, 4304 - 4371 (277.74 lbf∙in to 347.21 + S + W (× 4) CR70x2346 - 2415, 4304 - 4371 lbf∙in) LA70x2432 - 2519, 4380 ES70x2432 - 2519, 4380 YASKAWA TOEP C720600 03F External Heatsink Installation Installation Manual...
- Page 20 Change the position of the mounting bracket and install it in the position shown in Figure 5.14. Refer to Table 5.8 and tighten the screws to a correct tightening torque. Figure 5.14 Attach the Mounting Bracket YASKAWA TOEP C720600 03F External Heatsink Installation Installation Manual...
- Page 21 Install the drive in the cut opening of the enclosure panel and use screws to safety it to the enclosure panel. Figure 5.15 Install the Drive into the Opening of the Enclosure Panel YASKAWA TOEP C720600 03F External Heatsink Installation Installation Manual...
-
Page 22: Use The Mounting Bracket Supplied With The Drive (Procedure C)
Change the position of the mounting bracket and install it in the position shown in Figure 5.17. Tighten the screws to a tightening torque of 31.38 N∙m to 39.23 N∙m (277.74 lbf∙in to 347.21 lbf∙in). Figure 5.17 Attach the Mounting Bracket YASKAWA TOEP C720600 03F External Heatsink Installation Installation Manual... - Page 23 Change the position of the mounting bracket and install it in the position shown in Figure 5.19. Tighten the screws to a tightening torque of 31.38 N∙m to 39.23 N∙m (277.74 lbf∙in to 347.21 lbf∙in). Figure 5.19 Attach the Mounting Bracket YASKAWA TOEP C720600 03F External Heatsink Installation Installation Manual...
-
Page 24: Gasket And Sealant
Yaskawa recommends these products: • Gasket: INOAC CORPORATION C-4205 • Sealant: Shin-Etsu Silicone KE-3494 from Shin-Etsu Chemical Co., Ltd. Refer to Panel Cut-Out Dimensions on page 12 for the gasket dimensions. YASKAWA TOEP C720600 03F External Heatsink Installation Installation Manual... - Page 25 5 Install the Attachment A - Gaskets Figure 5.21 Install a Gasket A - Sealant Figure 5.22 Apply Sealant YASKAWA TOEP C720600 03F External Heatsink Installation Installation Manual...
-
Page 26: Revision History
• ES700 Three-Phase 400 V Class: CIPR-ES70x4720 to 4H11 Revision: Reviewed and corrected entire documentation Addition: Larger drive capacities added along with corresponding data. • GA700 Three-Phase 400 V Class: CIPR-GA70x4810 to 4H12 • GA800 Three-Phase 400 V Class: CIPR-GA80U4810 to January 2024 4H12 •... - Page 27 YASKAWA TOEP C720600 03F External Heatsink Installation Installation Manual...
- Page 28 Phone: +81-3-5402-4502 Fax: +81-3-5402-4580 www.yaskawa.co.jp YASKAWA AMERICA, INC. 2121, Norman Drive South, Waukegan, IL 60085, U.S.A. Phone: +1-800-YASKAWA (927-5292) or +1-847-887-7000 Fax: +1-847-887-7310 www.yaskawa.com YASKAWA ELÉTRICO DO BRASIL LTDA. 777, Avenida Piraporinha, Diadema, São Paulo, 09950-000, Brasil Phone: +55-11-3585-1100 Fax: +55-11-3585-1187 www.yaskawa.com.br...
