TT-3000E mini-C GMDSS System Installation Manual
4.6 TT-3608A H C P
ARD OPY RINTER

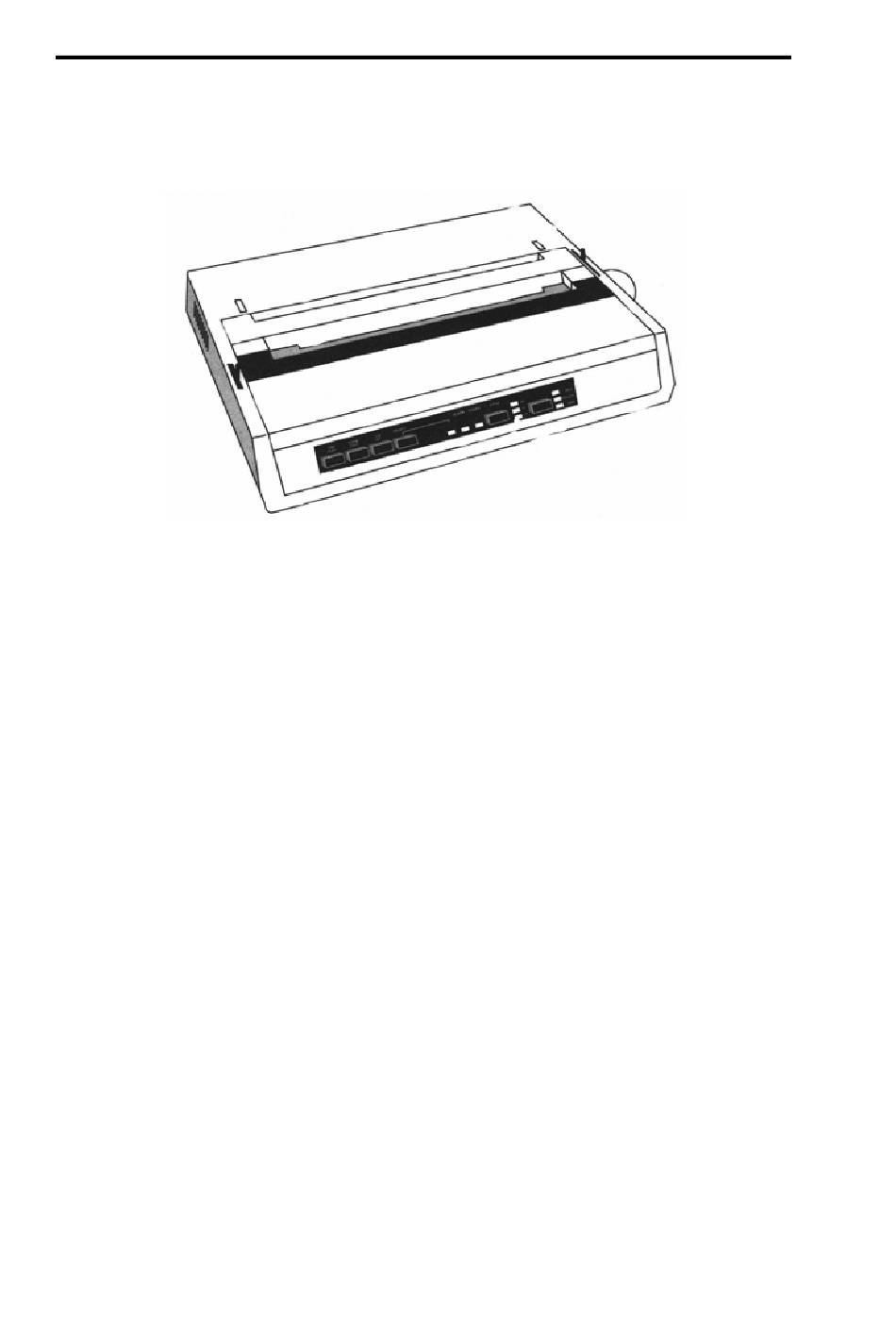

Figure 38 TT-3608A Hard copy printer
The TT-3608A Hard Copy Printer must be connected to the TT-
3606E Message Terminal in order to print SafetyNet EGC's
with Distress priority automatically.
The Integrated Capsat System is designed to allow the
operator to guide incoming messages to the TT-3608A Hard
Copy Printer and/or the TT-3606E Message Terminal for
floppy disk storage.
In case TT-3608A and TT-3606E are turned off, the Transceiver
will hold the incoming messages in the internal memory for at
approximately 48 hours for later Hard Coping.
The enclosed standard cable allows the printer to be located
up to 1.5 meters from the Transceiver. A special low
impedance cable is available for printer locations up to 20
meters from the Message Terminal.
The TT-3608A Hard Copy Printer is supplied with a mounting
frame, offering horizontally oriented secured mounting.
The printer connector is located on the rear panel. The
interface conforms to a standard Centronics type interface.
