TT-3000E mini-C GMDSS System
Installation Manual
4.5.3
M
OUNTING

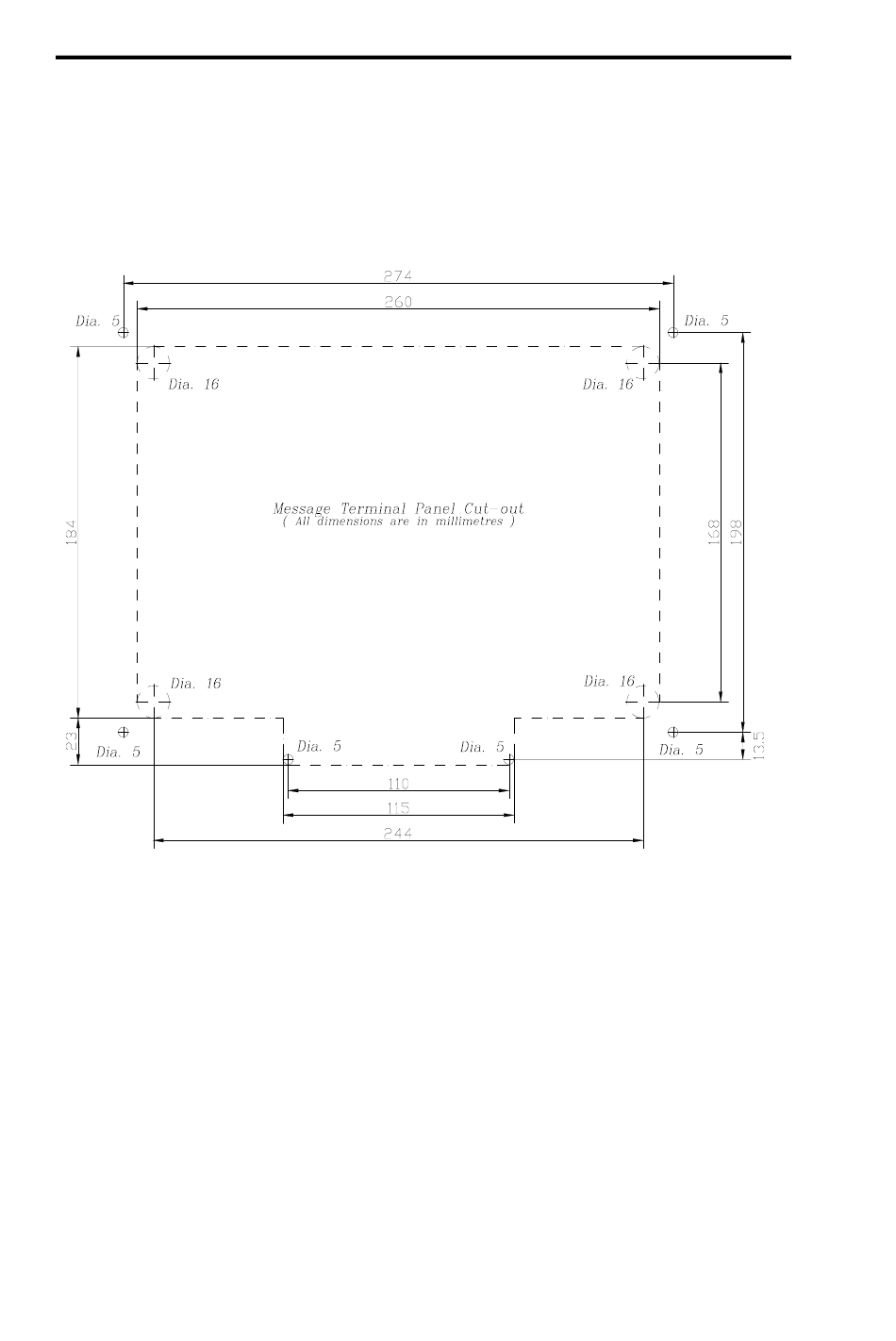

Figure 36 illustrates the dimension of the panel cut-out and
position of mounting holes when mounting the TT-3606E
Message Terminal in a console.
Figure 36 Mounting holes for TT-3606E
Figure 37 illustrates the position of the mounting holes for the
mounting bracket.
60/97
