TT-3000E mini-C GMDSS System Installation Manual
The "Remote On/Off" terminal located next to DC- must be
connected to DC- in order to turn on the unit. By combining
this "Remote On/Off" with the similar signal on the TT-3606E
Message Terminal and making the connection to DC- via a
switch, then all equipment except the printer can be switch on
and off by a simple low power switch.
4.4.4 C TT-3026C TT-3616C
ONNECTING TO
In order to prepare the transceiver cable for mounting, start
by removing 20 cm. of isolation as shown in Figure 22.

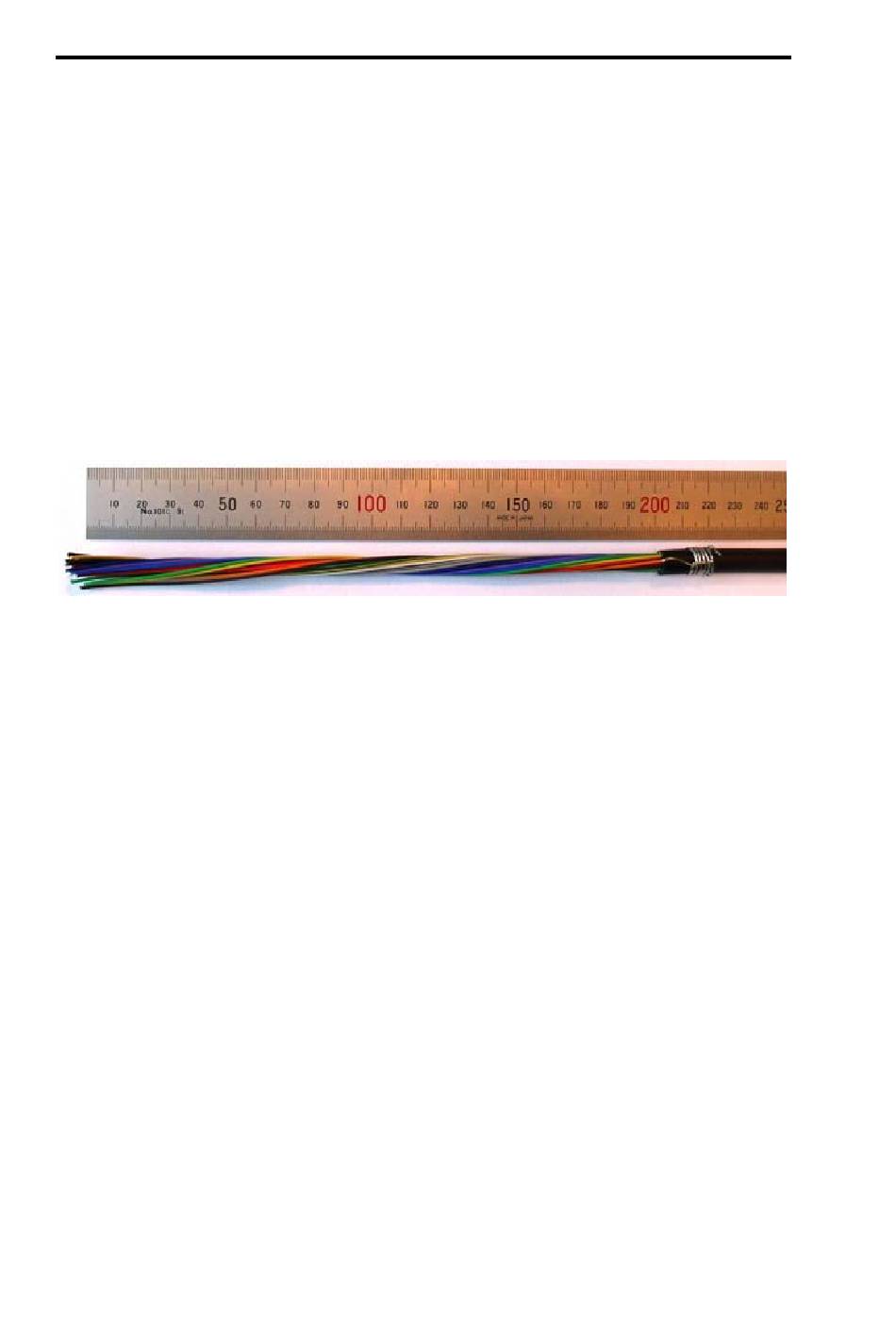

Figure 22 Transceiver cable preparation.

Then wind the tinned wire around the isolation as shown in
Figure 23 in order to prepare for a proper grounding of the
cable screen.
46/97
