TT-3000E mini-C GMDSS System

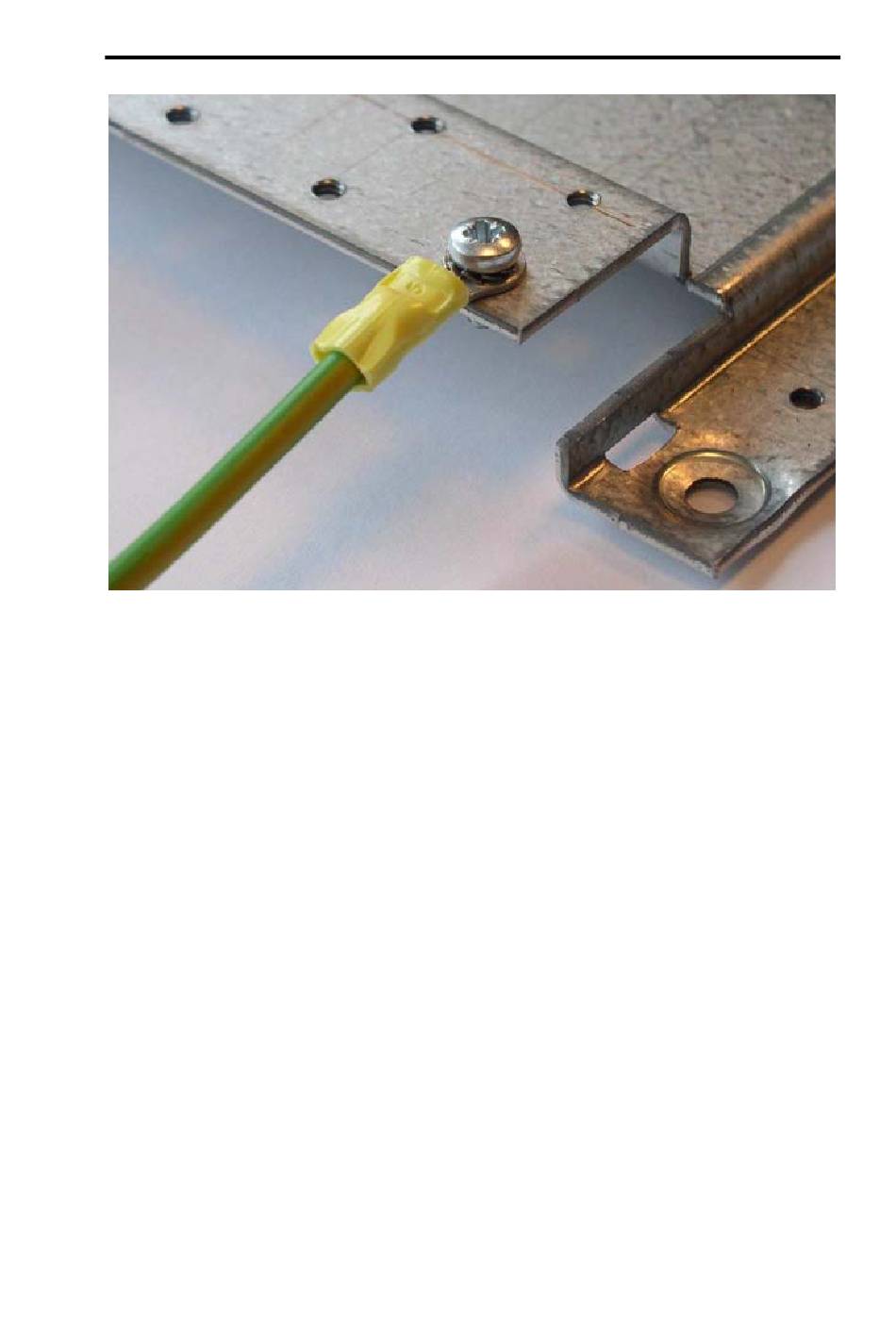

Figure 19 Grounding using 4mm
Please note the use of a washer as shown in Figure 19.
The grounding wire delivered with the TT-3616C has a length
of 1 meter and a wire cross section of 4mm
the length of the grounding wire, as the protective effect will
be severely degraded in such a case.
2
43/97
Installation Manual
2
wire.
. Avoid extending
