2.2 TT-3616C I
The TT-3616C GMDSS Interconnection Box is designed to
facilitate a simple and robust interconnection of the various
system components. It is designed to be mounted anywhere
inside a vessel and to be located up to 50 meters away from
the TT-3026C mini-C Transceiver and up to 20 meters away
from the TT-3606E Message Terminal.

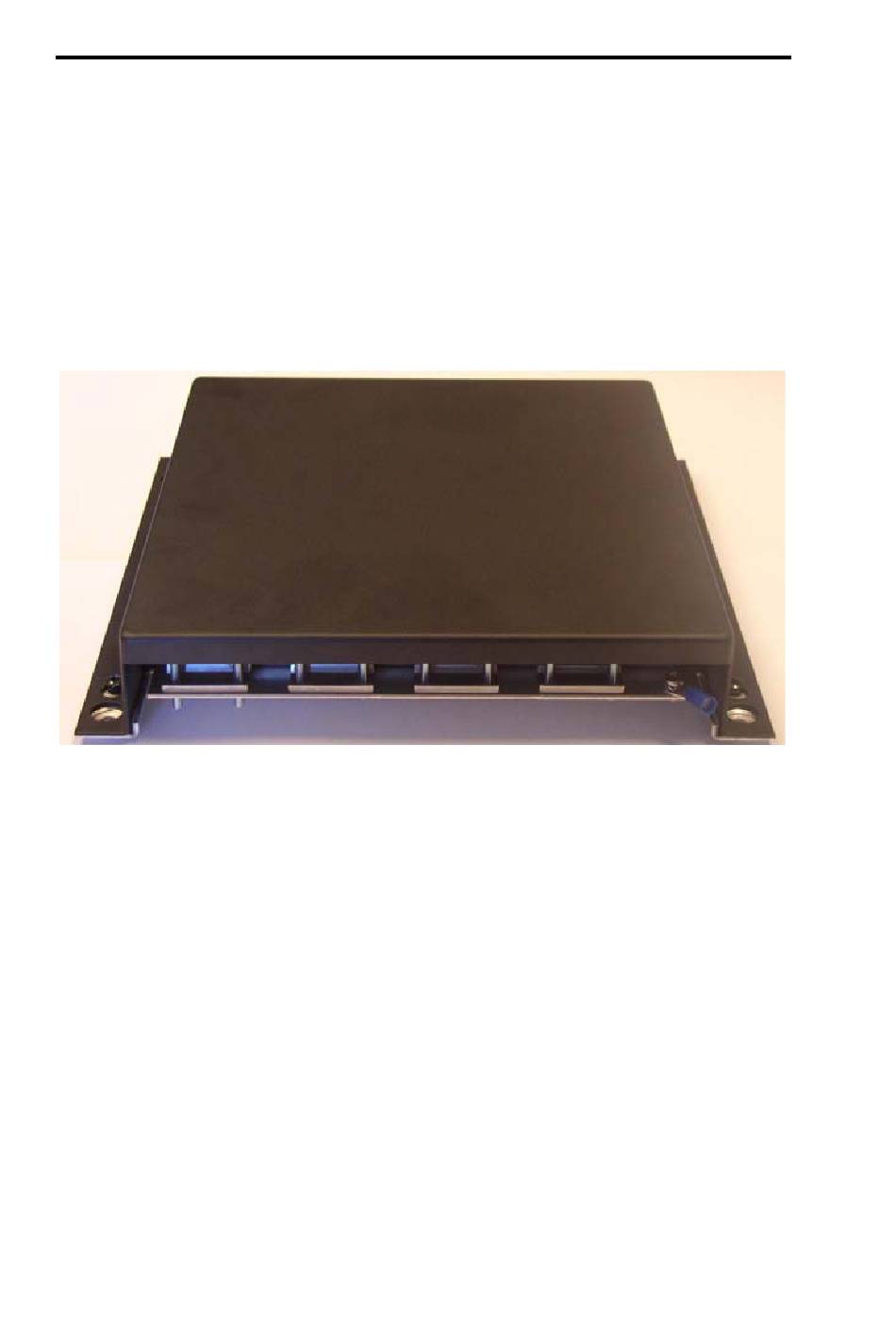

Figure 3 TT-3616C GMDSS Interconnection Box

2.3 AP5042 I
A mandatory part of a TT-3000E mini-C GMDSS System is the
installation of a distress alarm panel. The AP5042 Inmarsat-C
Alarm Panel is intended specifically for this purpose.
AP5042 can be used as a supplement or replacement for TT-
3042C Remote Alarm/Distress Box.
The design line of AP5042 matches the design line of the 5000
series radios from Thrane & Thrane.
