4.4.6 C TT-3042C TT-3616C
ONNECTING TO
Alarm panels can be
connected to terminal
block J901, J902 and J903
(shown in Figure 27). The
labelling of the individual
terminals corresponds to
the labelling in TT-3042C.
To connect the TT-3042C
Remote Alarm / Distress
Box, use up to 100 meter of
shielded cable with 8 wires
and a wire cross section of

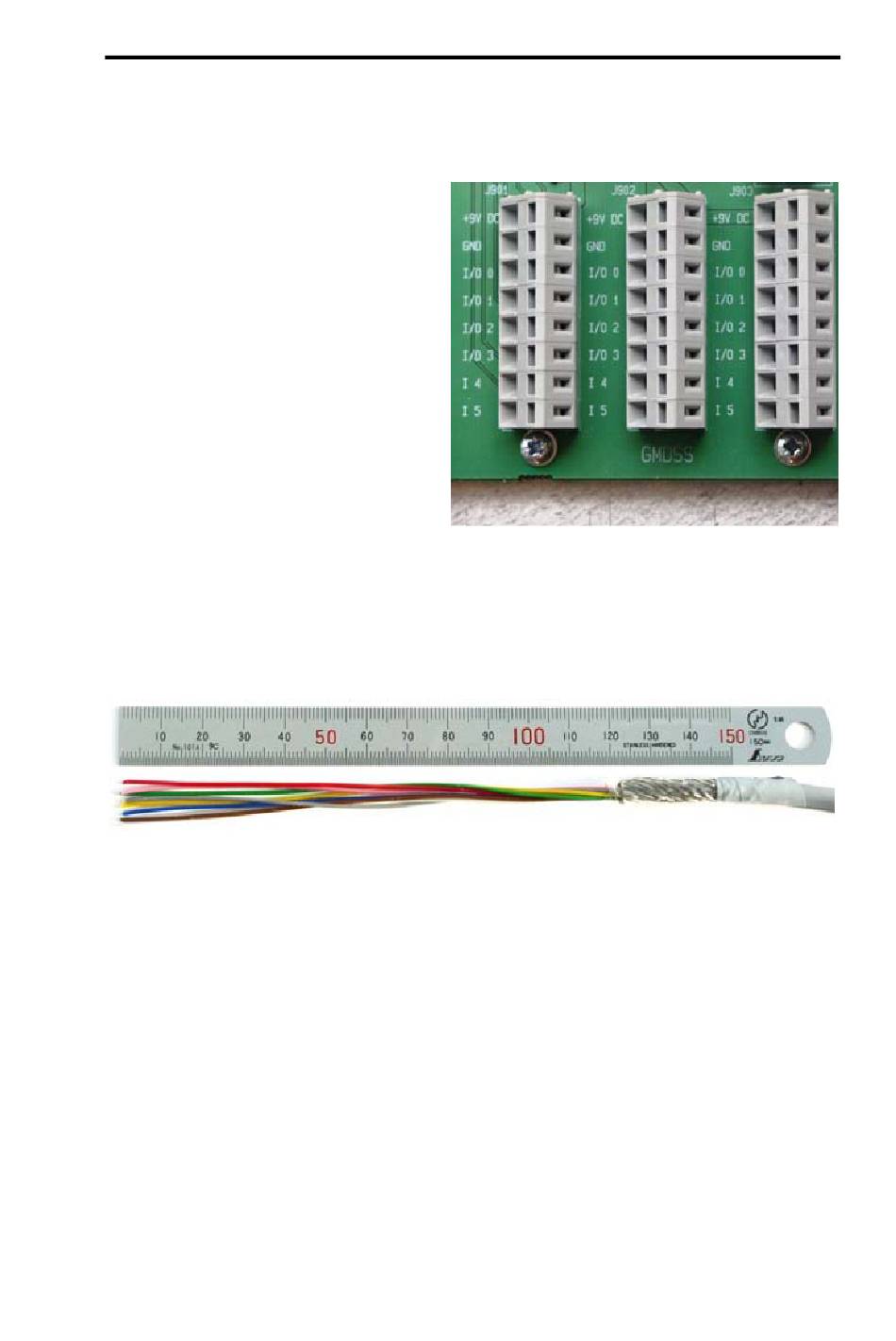

Figure 27 Alarm panel connectors.
2
at least 0.25mm .
In order to prepare the cable for mounting, start by removing
12 cm. of isolation as shown in Figure 22 (remove 14 cm. of
isolation if connecting to J902).

Figure 28 Preparation of cable for alarm panels

Make sure the cable screen is proper folded around the cable
isolation before mounting.
Start by fastening the cable firmly in the cable relief bracket
of the TT-3616C before mounting the individual wires.
Then cut each wire 1.5 cm. longer than the distance to the
corresponding terminal. Remove 5 mm. of isolation and insert
the wire. An example is shown in Figure 29.
