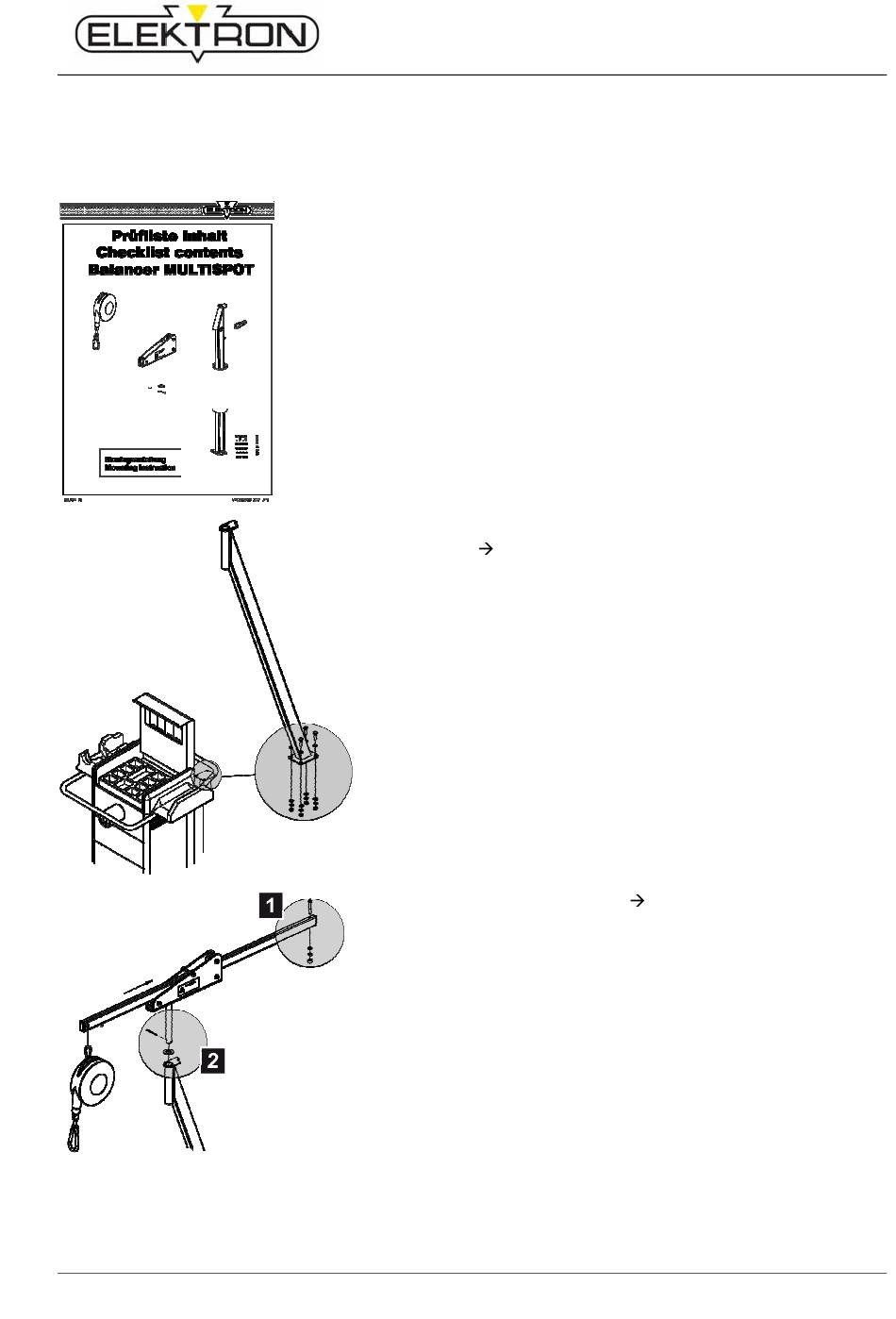

5.3 Assembling the balancer
Fig.17: Balancer checklist
Fig.18: Vertical pipe
Fig.19: Crossbar pipe
Unpack the balancer.
1.
Check balancer components for damage. Use the checklist
2.
provided (Fig.17) to check whether you have all the parts.
− Balancer
− Guide rollers with locking pin and ring
− Vertical pipe and crossbar pipe
− Replacement carabine hook
− Four M8 bolts with two nuts and washers each
− Mounting instructions
3.
Mount the vertical pipe using four M8 bolts
(Fig.18,
see separate operating and mounting instructions).
4.
Mount the crossbar (Fig.19,
instructions). Proceed as follows:
− Mount and screw down stopper (Fig.19/1).
− Insert crossbar pipe into guiding element. Secure with
locking pin (Fig.19/2).
− Hang up spring balancer and secure (see operating
instructions for spring balancer).
Resistance Welder MULTISPOT MI-100-3
see separate mounting
Installation
23
