Connecting An Exalogic Full Rack And An Exadata Full Rack; Exalogic Full Rack And Exadata Half Rack; Exalogic Full Rack And Exadata Full Rack - Oracle Exalogic EL X2-2 Multirack Cabling Manual

Figure B-11
In Figure
NM2-36P represents a Sun Datacenter InfiniBand Switch 36.
B.12 Connecting an Exalogic Full Rack and an Exadata Full
Rack
Figure B-12
connected on the same InfiniBand fabric.
Figure B-12
In Figure
(leaf switches). NM2-36P represents a Sun Datacenter InfiniBand Switch 36 (spine
switch).

Exalogic Full Rack and Exadata Half Rack

B-11, NM2-GW represents a Sun Network QDR InfiniBand Gateway Switch.

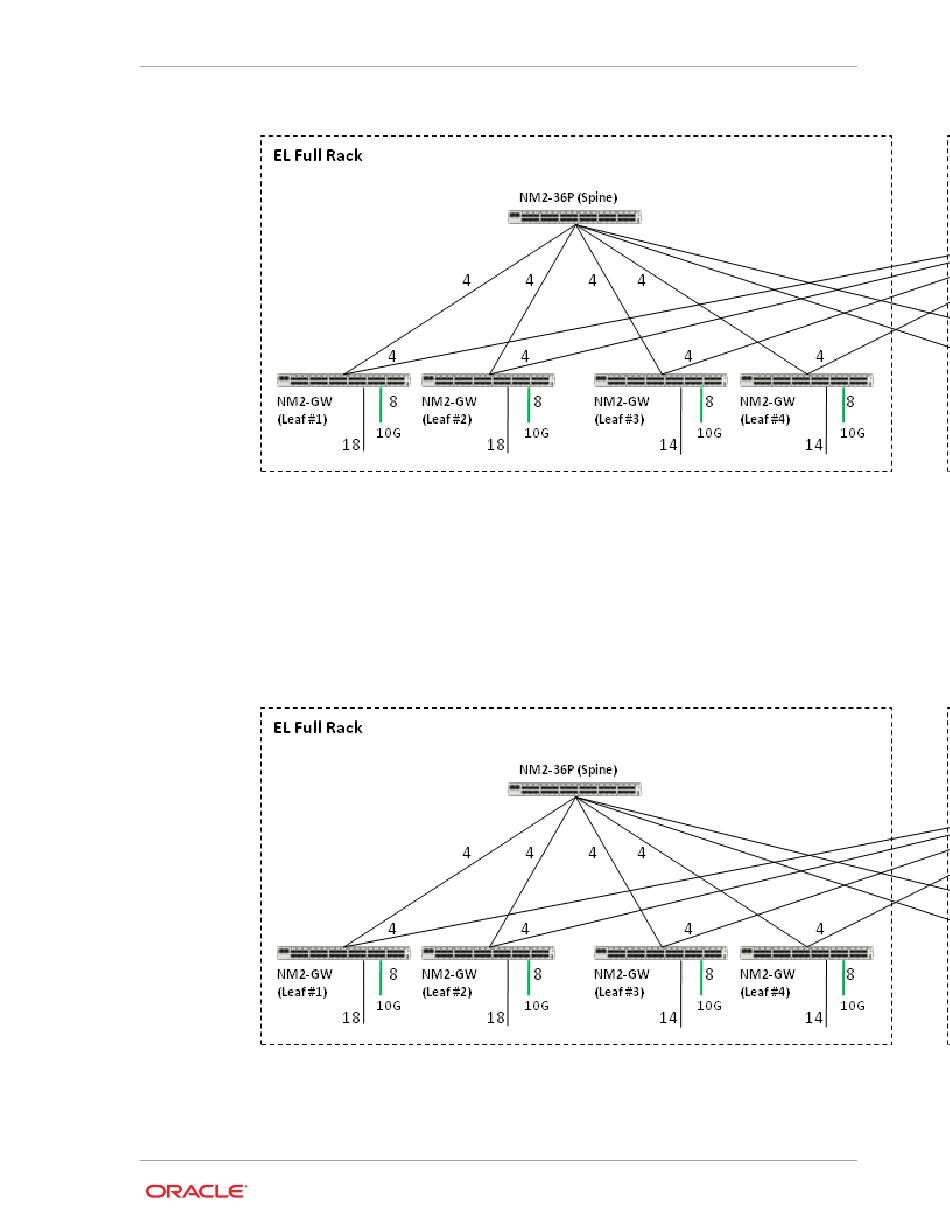

illustrates how an Exalogic full Rack and an Exadata full rack are

Exalogic Full Rack and Exadata Full Rack

B-12, NM2-GW represents a Sun Network QDR InfiniBand Gateway Switch

Connecting an Exalogic Full Rack and an Exadata Full Rack
