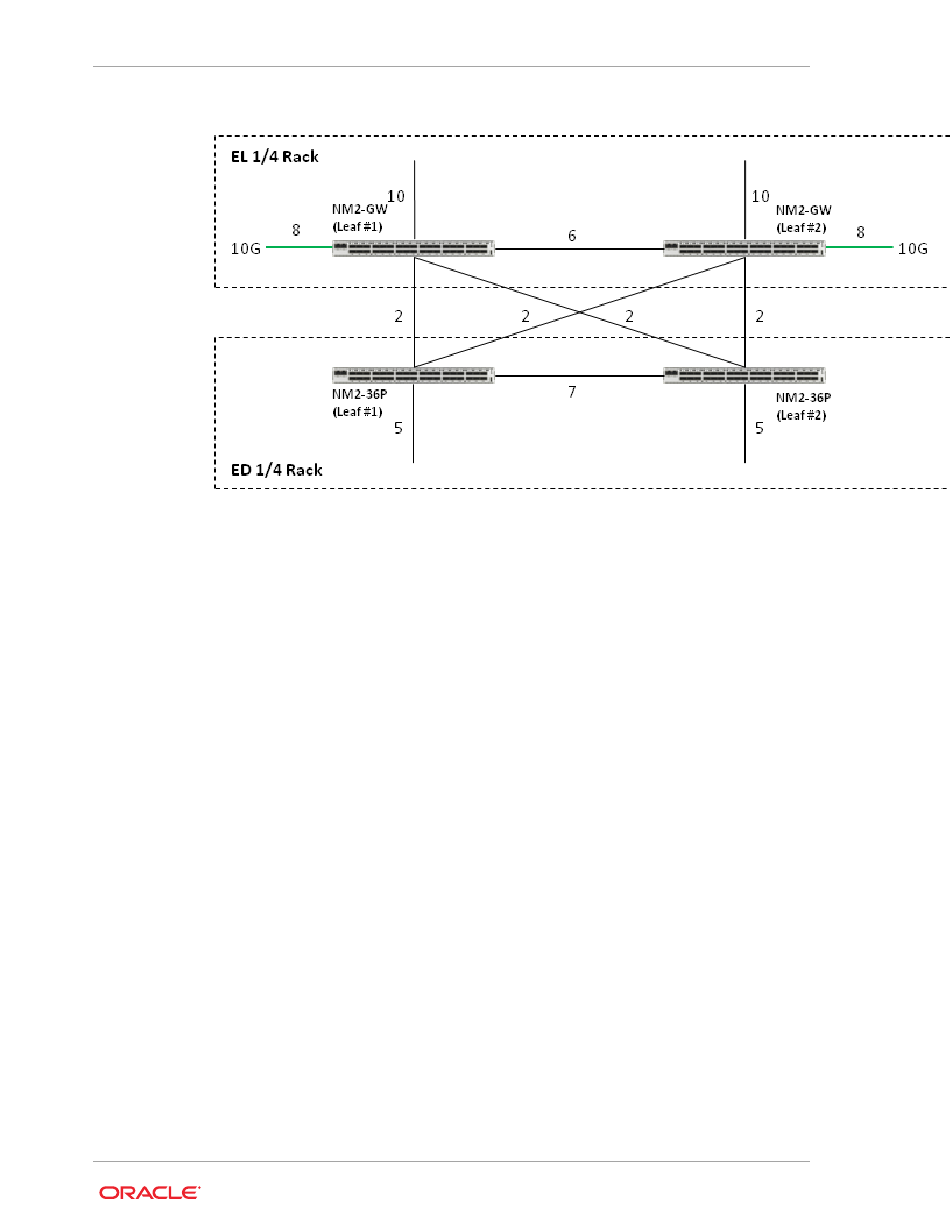

Figure B-4
In Figure
NM2-36P represents a Sun Datacenter InfiniBand Switch 36.
This scenario is explained in detail in
and an Exadata Database Machine Quarter
sake of completeness.
B.5 Connecting an Exalogic Quarter Rack and an Exadata
Half Rack
Figure B-5
connected on the same InfiniBand fabric.

Connecting an Exalogic Quarter Rack and an Exadata Half Rack

Exalogic Quarter Rack and Exadata Quarter Rack

B-4, NM2-GW represents a Sun Network QDR InfiniBand Gateway Switch.
illustrates how an Exalogic quarter rack and an Exadata half rack are
Connecting an Exalogic Machine Quarter Rack
Rack. It is included in this appendix for the
Appendix B
B-4
