B.7 Connecting an Exalogic Half Rack and an Exadata
Quarter Rack

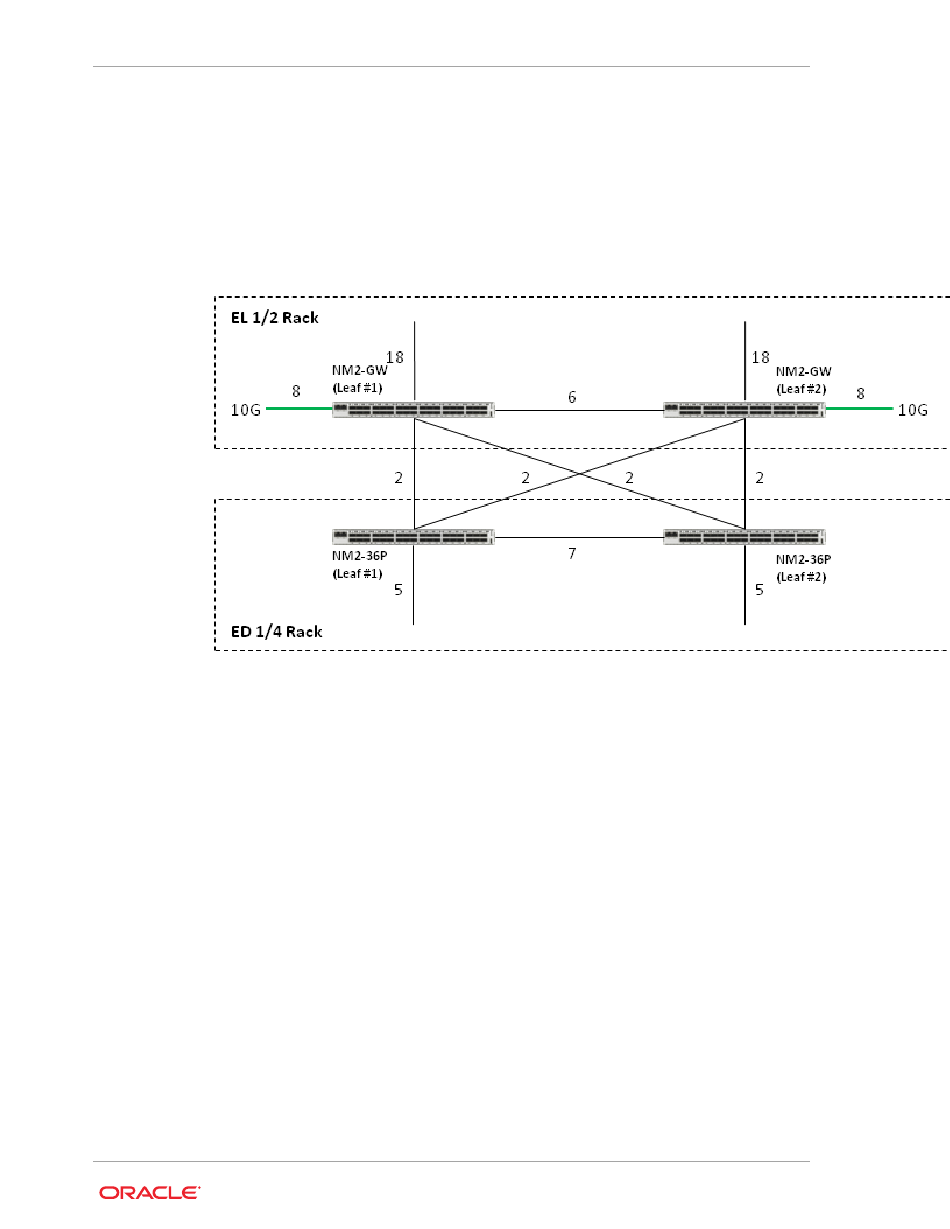

Figure B-7
connected on the same InfiniBand fabric.
Figure B-7
In Figure
NM2-36P represents a Sun Datacenter InfiniBand Switch 36.
B.8 Connecting an Exalogic Half Rack and an Exadata Half
Rack
Figure B-8
connected on the same InfiniBand fabric.

Connecting an Exalogic Half Rack and an Exadata Quarter Rack

illustrates how an Exalogic half rack and an Exadata quarter rack are

Exalogic Half Rack and Exadata Quarter Rack

B-7, NM2-GW represents a Sun Network QDR InfiniBand Gateway Switch.
illustrates how an Exalogic half rack and an Exadata half rack are
Appendix B
B-6
