TECHNICAL DATA

4.1

Electromagnetic compatibility (EMC)

The boards APCI-1032, APCI-1564 and APCI-2032 comply with the European EMC
directive. The tests were carried out by a certified EMC laboratory in accordance with
the norm from the EN 61326 series (IEC 61326). The limit values as set out by the
European EMC directive for an industrial environment are complied with.
The respective EMC test report is available on request.
WARNING !
The EMC tests have been carried out in a specific appliance
configuration. We guarantee these limit values only in this
configuration
4.2

Physical set-up of the board

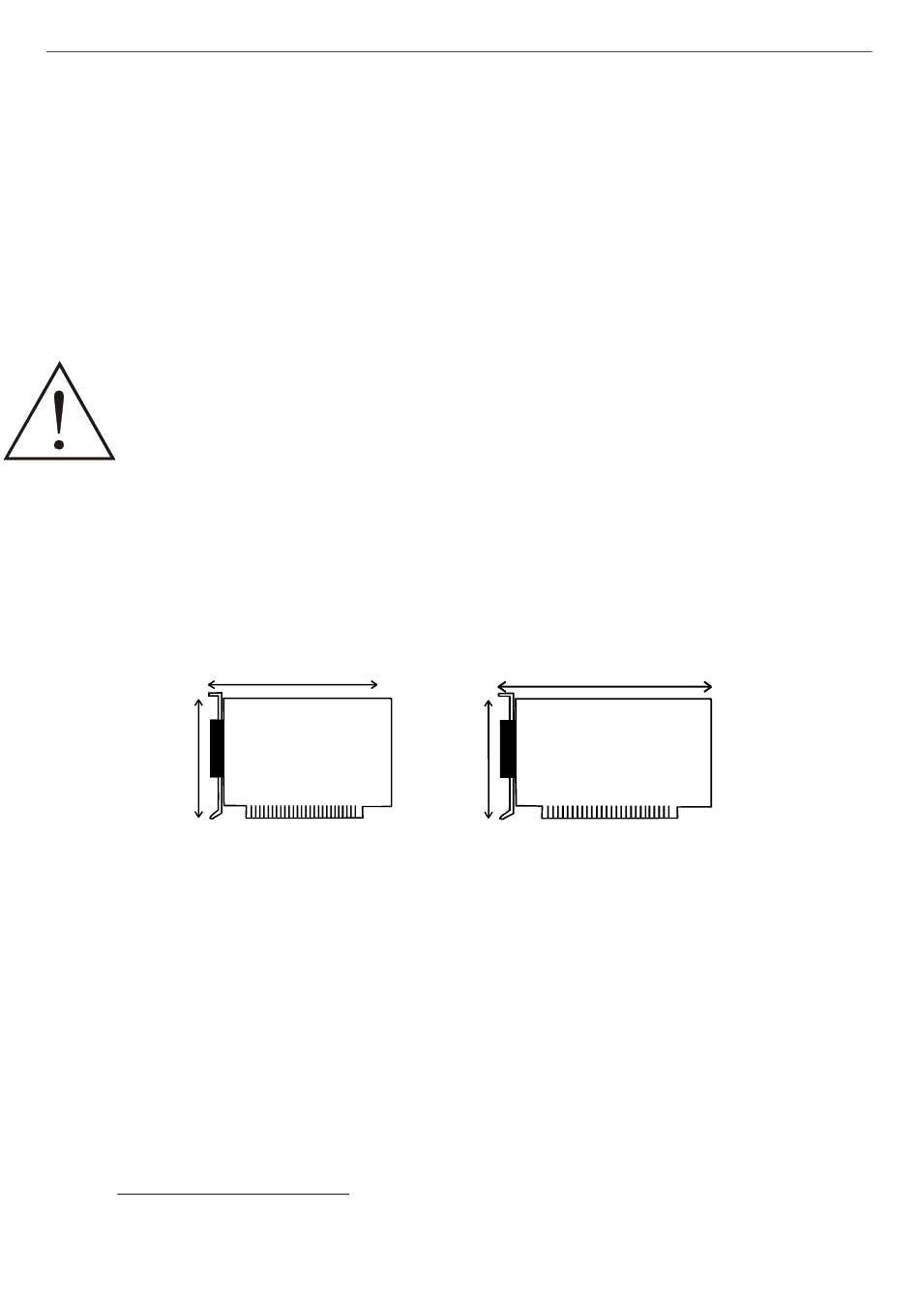

The board is assembled on a 4-layer printed circuit card.
Dimensions:
APCI-1032, APCI-2032
(PCI short board)
99 mm
Weight: ..................................................... approx. 160 g
Installation in: ........................................... 32/64-bit PCI slot 5 V
Connection to the peripheral: ................... 37-pin SUB-D male connector
Accessories 2 :
Standard cables: ........................................ ST010, ST011, ST022
Screw terminal panel: ............................... PX901-D,
Relay output board: .................................. PX8500
ACPI-1564: ribbon cable FB1564 for the digital inputs
1
We can transmit you the configuration on request.
2
Not included in the standard delivery.
14
.
1
130 mm
99 mm
APCI-1564
171 mm
PX901-DG,
PX901-ZG
or PX9000
