APCI-1032, APCI-1564 and APCI-2032
ADDevice Manager
The following parameters are displayed for every inserted board:
First column:
Board name
-
Board index: Number allocated to the board when it is registered in ADDIREG.
-
Slot number
-
IRQ line
-
Different addresses which are automatically allocated to the board by the BIOS.
-
Other columns:
The program distinguishes between the resources (Analog/digital input/output,
watchdog, ...) of the virtual board (V, software) and the real board (R, board).
The following parameters are listed
Module number,
-
Number of resources
-
Index: The first index line represents the number of the first resource (left: virtual
-
resource - right: real board) The second index line represents the number of the last
resource (left: virtual resource - right: real board).
Type (24 V/5 V, voltage/current, HS/OC - High-Side/Open collector).
-
IRQ: if the input channels are interruptible, the program displays the number of the
-
first and of the last input channel
By clicking twice within a column, the connection principle and the technical data of
the resource are displayed. This function is only possible if a question mark appears
with the cursor.

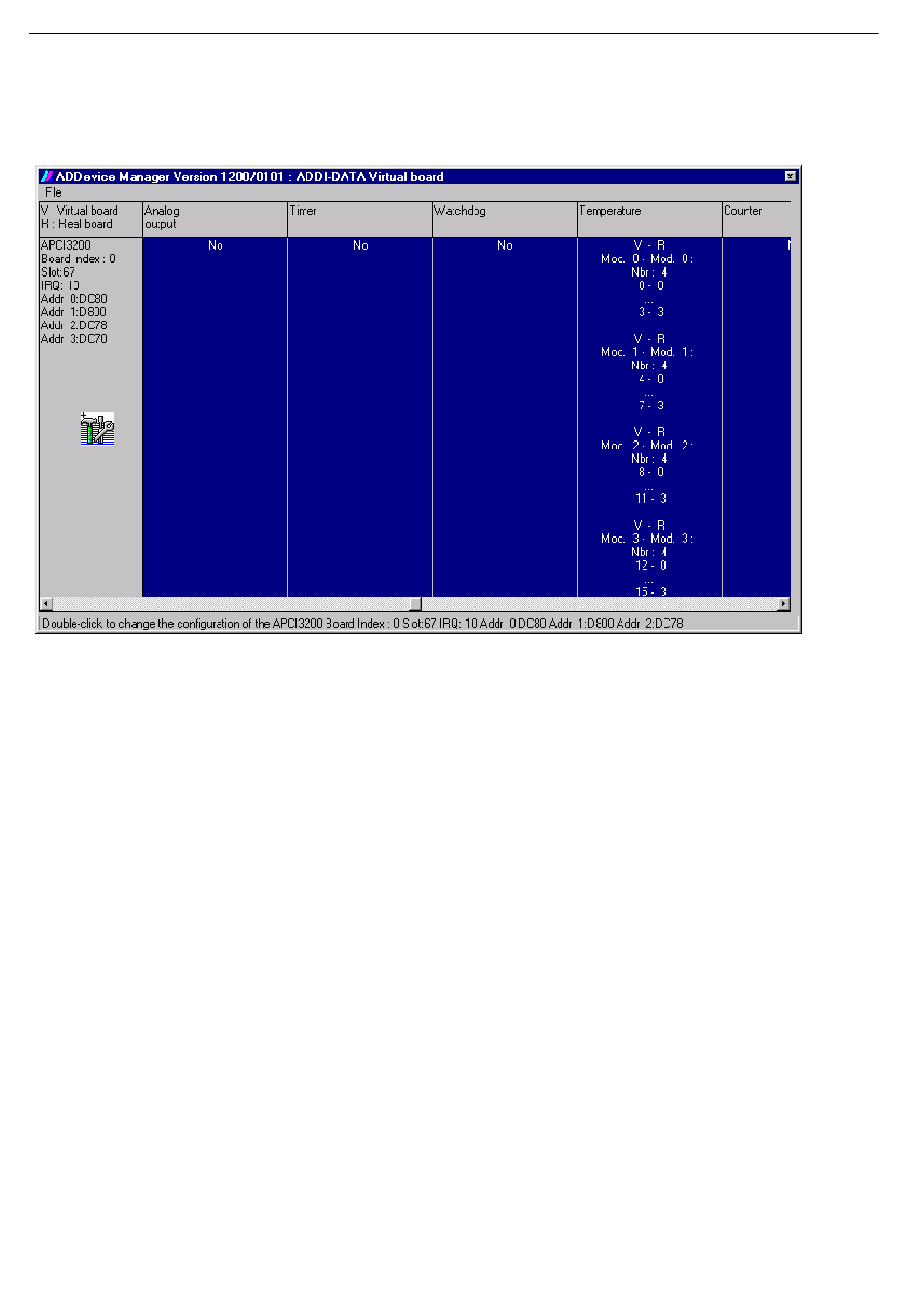

Fig. 6-2: ADDevice Manager
Software
