APCI-1032, APCI-1564 and APCI-2032
Bus speed: ................................................. < 33 MHz
Operating system: ..................................... Windows NT, 98, 2000, XP
Energy requirements:
APCI-1032
- Operating voltage of the PC: .................. 5 V ± 5%
- Current consumption (without load): ..... 180 mA ± 10 mA
APCI-2032
External operating voltage:
APCI-2032: ............................................... 24 V ± 5%
APCI-2032-5: ........................................... 5 V-12 V ± 5%
Max. current consumption1 (+ 5 V from PC):
APCI-2032: ............................................... 224 mA ± 10%
APCI-2032-5 ............................................ 222 mA ± 10%
APCI-1564
External operating voltage:
APCI-1564: ............................................... 24 V ± 5%
APCI-1564-5: ........................................... 5 V-12 V ± 5%
Max. current consumption
(+ 5 V from PC):........................................ 380 mA ± 10 %

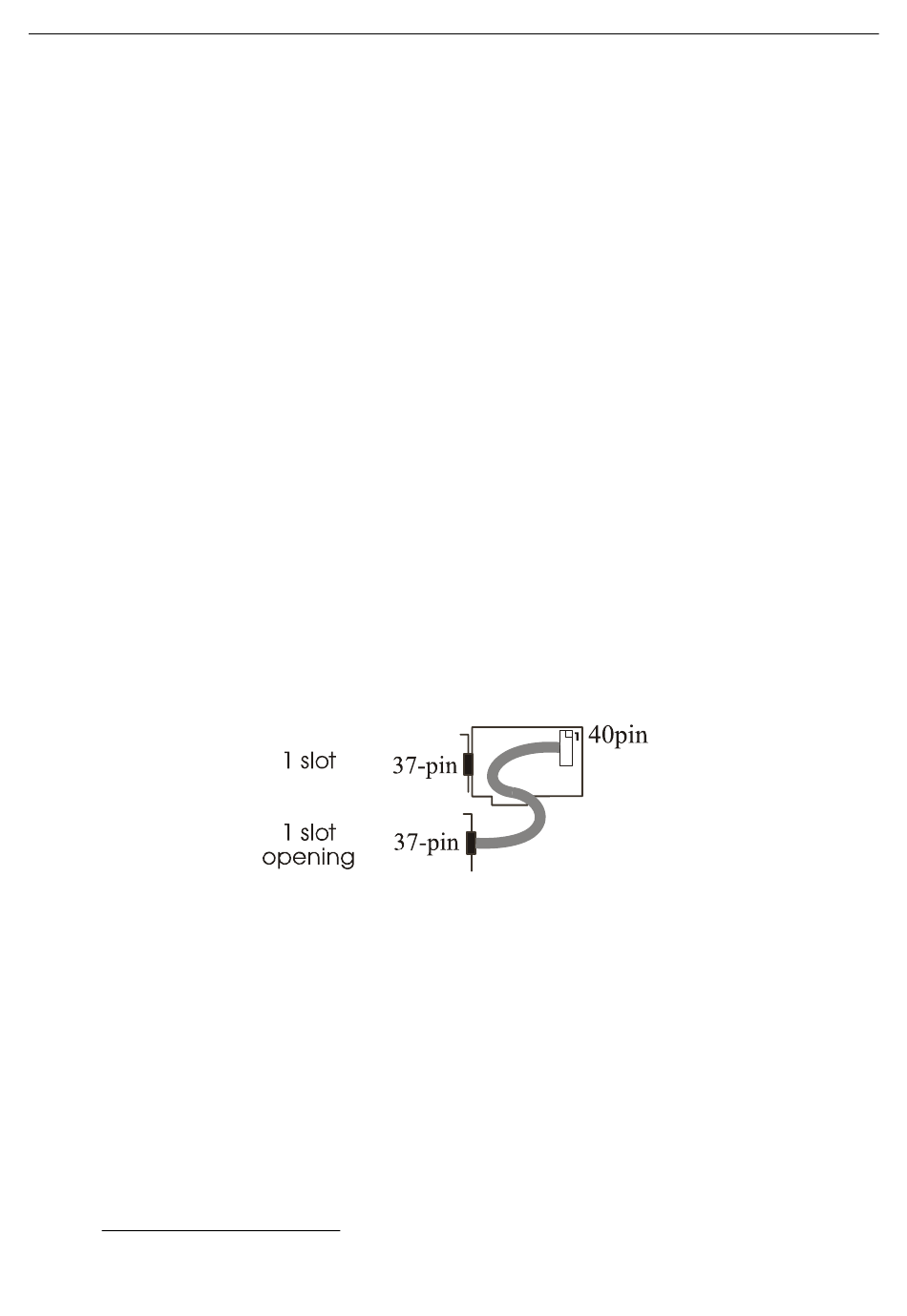

Number of slot required:
APCI-1032, APCI-2032: .......................... 1
APCI-1564: ............................................... 1+1

4.4.1 Digital inputs

24 V digital input channels
Input type: ................................................. mass related inputs
Number of input channels: ....................... 32
Nominal voltage: ...................................... 24 VDC
3
All inputs and/or outputs are connected.
16
3
Technical data
