Technical data and limit values

7 Technical data and limit values

7.1 Electromagnetic compatibility (EMC)

The board APCIe-040 is suited for installation in personal computers (PCs) which comply with the
European EMC directive.
The board APCIe-040 complies with the European EMC directive. The tests were carried out by a
certified EMC laboratory in accordance with the norm from the EN 61326 series (IEC 61326). The limit
values as set out by the European EMC directive for an industrial environment are complied with.
The respective EMC test report is available on request.

7.2 Mechanical structure

Dimensions (L x B):
Weight:
Insertion into:
Connection to peripherals:
Front connector:
1
Accessories:
Cable:
Screw terminal panel:
IMPORTANT!
i
The connection lines must be installed in such a way that they are
protected against mechanical loads.
1 not included in standard delivery
www.addi-data.com

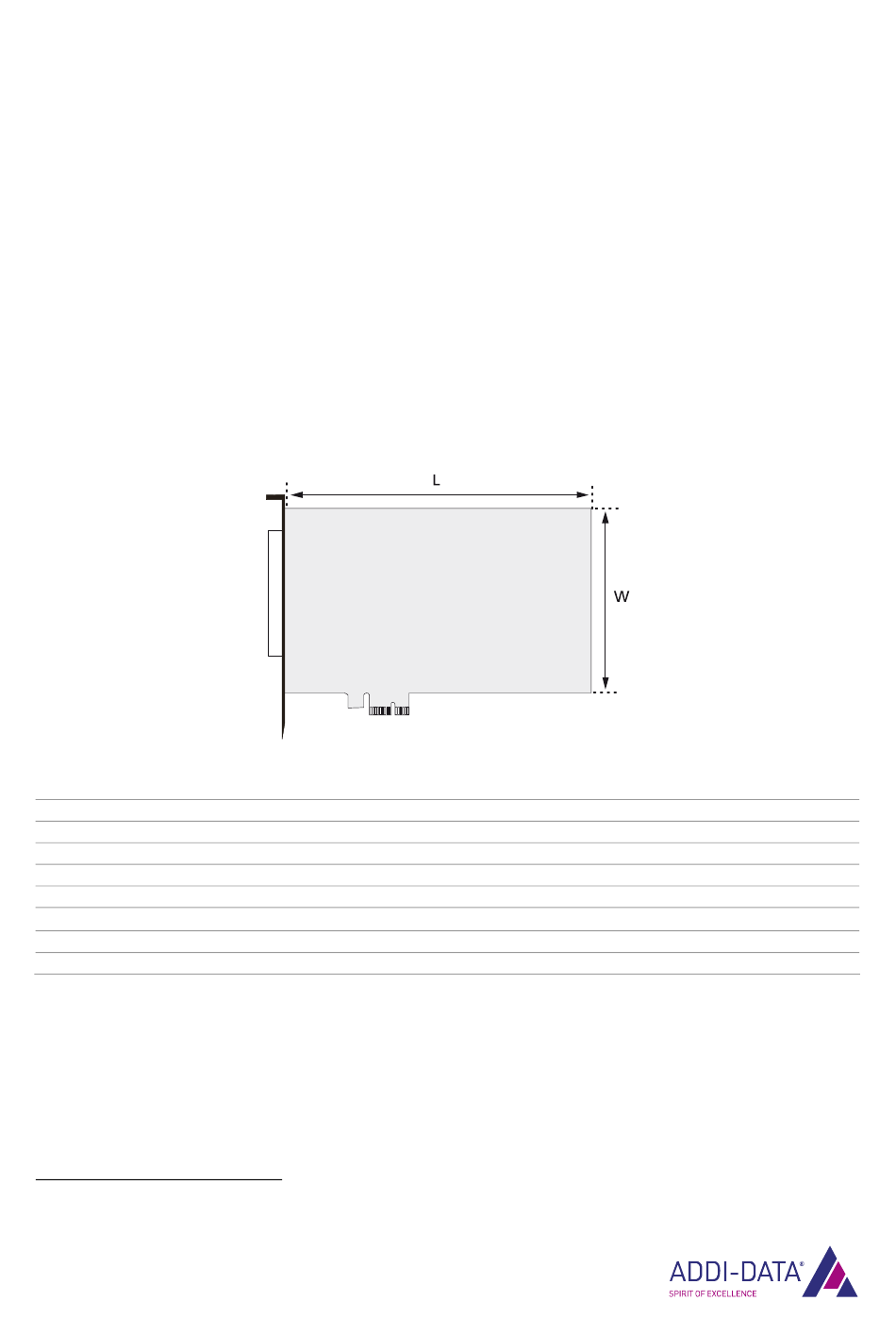

Fig. 7-1: APCIe-040: Dimensions
