Digital outputs - 5 V

7.3.1 Connector pin assignment

The outputs are driven as open collectors; the ground is switched.

7.3.2 Connector principle

38

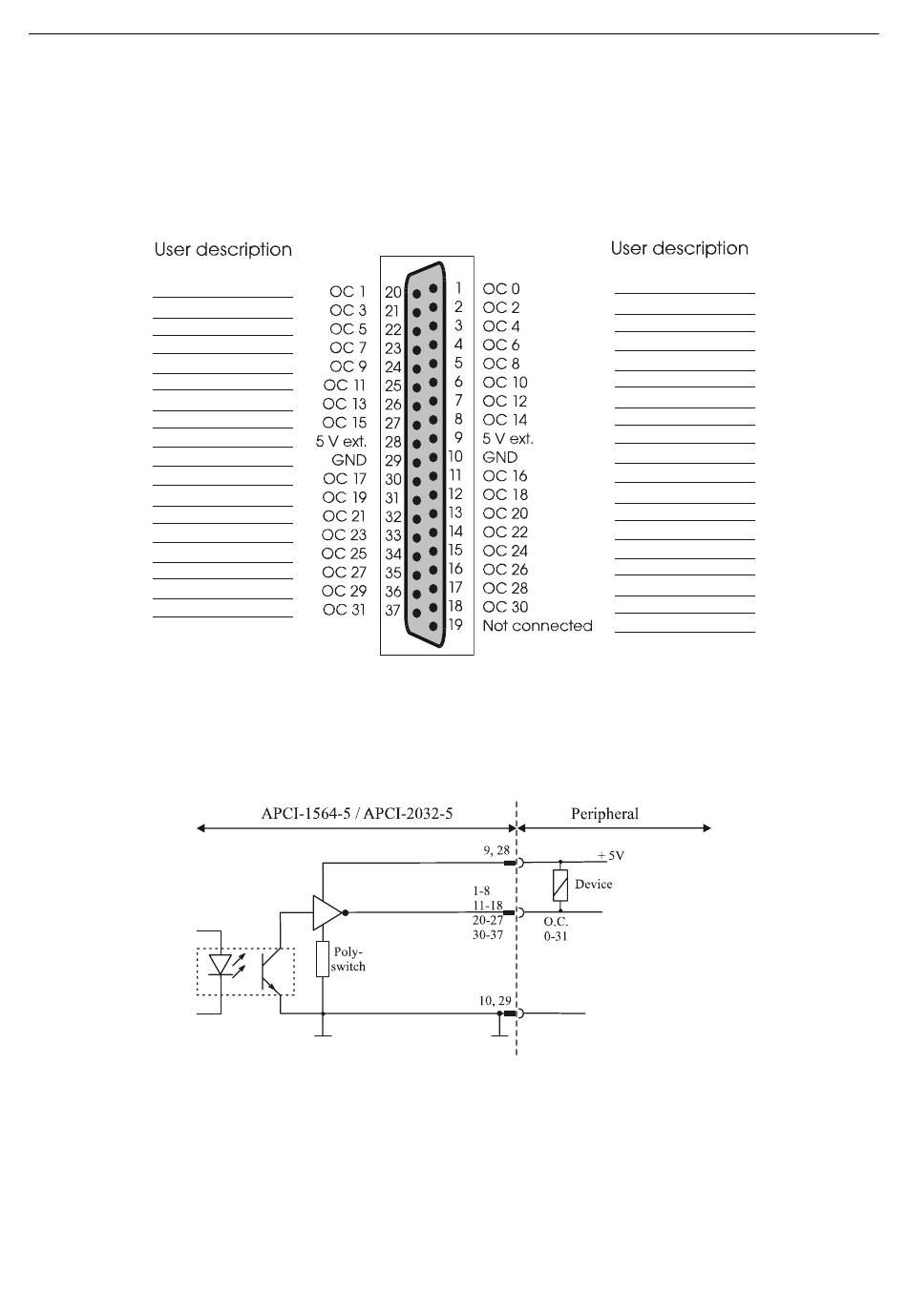

Fig. 7-7: 37-pin SUB-D connector

Fig. 7-8: Connection principle of the 5 V outputs

Connecting the peripheral
