APCI-1032, APCI-1564 and APCI-2032
8

FUNCTIONS OF THE BOARD

The boards APCI-1032, APCI-1564 and APCI-2032 are intended for parallel input and/or
parallel output of digital signals in 24 V (industry standard), 12 V (only APCI-2032) and
5 V environment.
The peripheral and the system are optically isolated.
8.1

Block diagrams and short description

32 digital inputs, 16 of which are interruptible (channels 0 to 15)
-
4 groups of ground lines
-
interruptible inputs: programmable AND/OR logic.
-
32 digital inputs, 16 of which are interruptible (channels 4 to 19)
-
4 groups of ground lines
-
interruptible inputs (channels 4 to 19): programmable AND/OR logic.
-
timer
-
3 x 32-bit counter inputs (channels 0 to 2)
-
32 digital outputs
-
watchdog
-

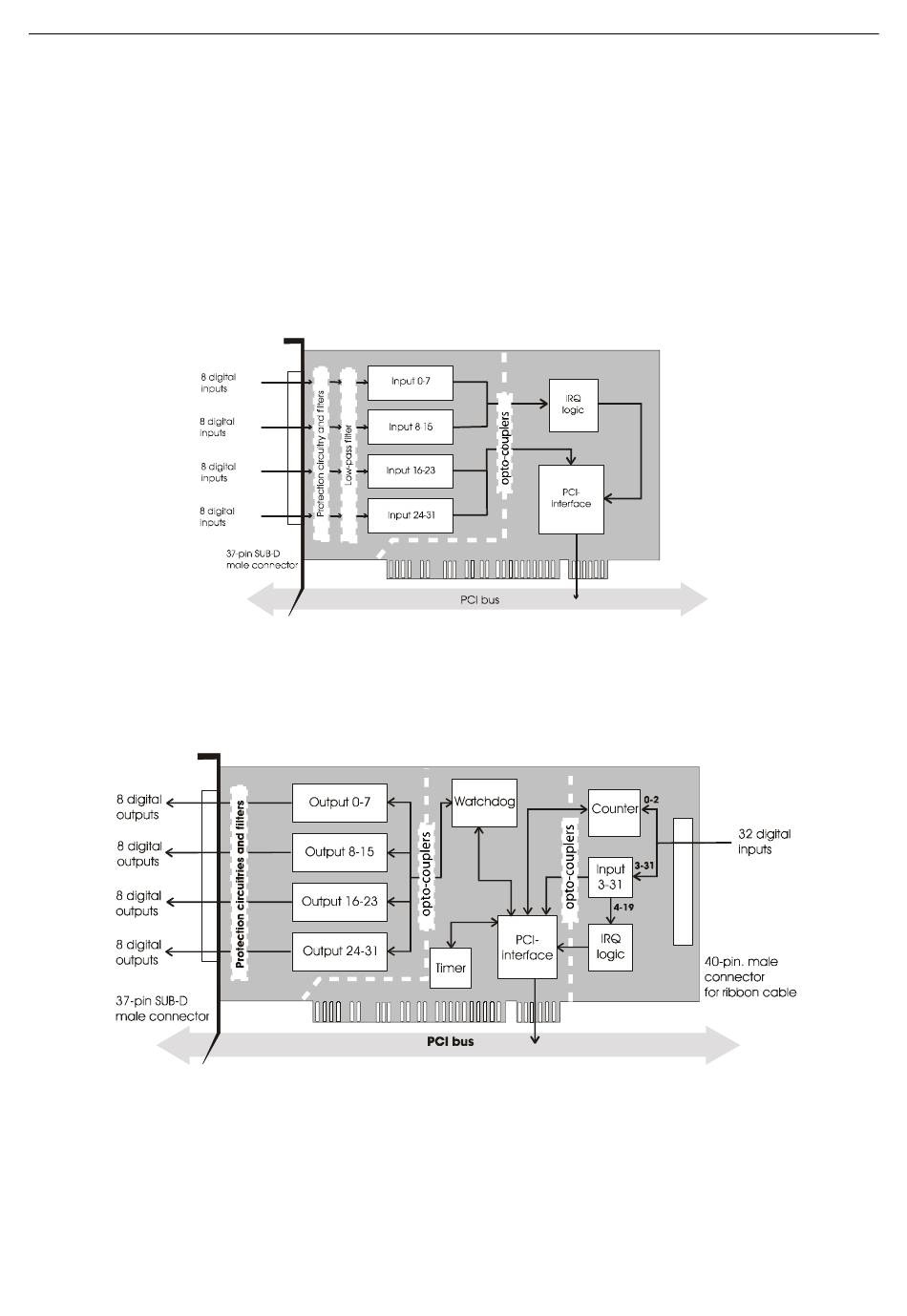

Fig. 8-1: Block diagram of the APCI-1032

Fig. 8-2: Block diagram of the APCI-1564

Functions of the board
43
