APCI-1032, APCI-1564 and APCI-2032
You can export the set configuration as a text file. Click on "file" and save the
configuration as a .txt file with "Export information to file...". You can then print the
configuration or use it for other boards.
Once you have controlled the registration, you can quit the window of ADDevice
Manager. The board is ready to operate.

6.1.2 Changing the registration of a board

You can change the current board configuration with ADDIREG

Description of the ADDIREG program

The program is automatically installed with ADDIPACK.
Start ADDIREG under Start/Programme/ADDIPACK/ADDIREG.
IMPORTANT!
i
First quit all the applications (programs) which use the board
before starting the ADDIREG program.
In the main window of ADDIREG the fields "Insert" and "Clear" are not available for
the board.
30

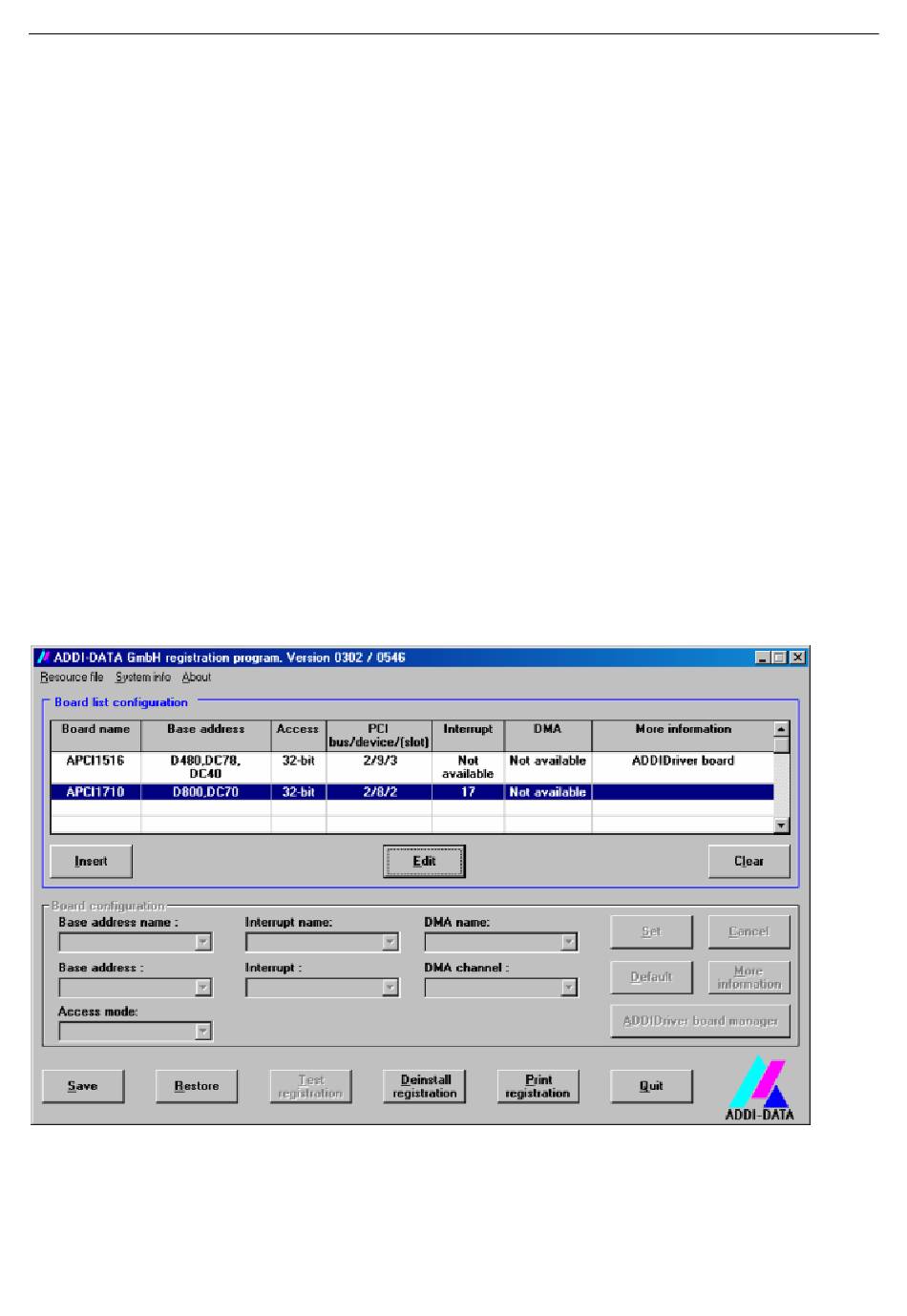

Fig. 6-3: ADDIREG registration program (example)

Software
