Technical Data; Electromagnetic Compatibility (Emc); Physical Set-Up Of The Board - Addi-Data APCI-3003 Technical Description

APCI-3003
4

TECHNICAL DATA

4.1

Electromagnetic compatibility (EMC)

The board APCI-3003 complies with the European EMC directive. The tests were
carried out by a certified EMC laboratory in accordance with the norm from the
EN 61326 series (IEC 61326). The limit values as set out by the European EMC
directive for an industrial environment are complied with.
The respective EMC test report is available on request.
4.2

Physical set-up of the board

The board is assembled on a 4-layer printed circuit card.

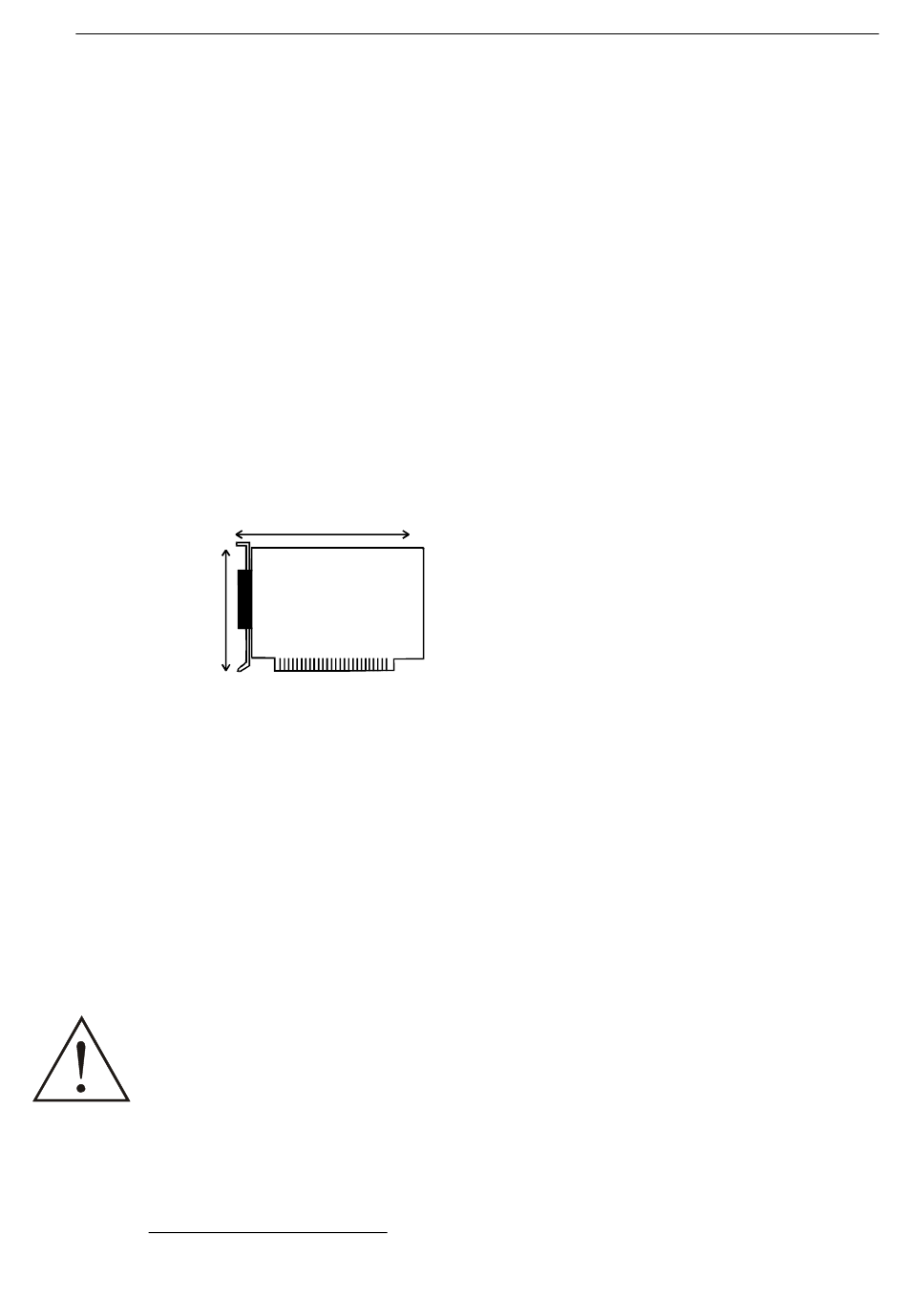

Dimensions:
99 mm
Weight: ...................................................... approx. 160 g
Installation in: ........................................... 32/64-bit PCI slot
Connection to the peripheral: ..................... 37-pin SUB-D male connector
Accessories 1
Cables:
For the analog inputs: ................................Standard round cable ST3003-A
For the digital I/O:...................................... Standard round cable ST3003-D
Screw terminal panels:
Connection of the analog inputs: ...............PX901-AG
Connection of the digital I/O: ....................PX901-ZG
WARNING!
The supply lines must be installed safely against mechanical
loads.
Not included in the standard delivery.
1
175 mm
:
5 V or 3.3 V
Technical data
11
