APCI-1032, APCI-1564 and APCI-2032
7.2

Digital outputs - 24 V

7.2.1 Connector pin assignment

7.2.2 Connection principle

The outputs switch the +24V ext. outside to the load. One end of the load is connected
to the 0V ext. ground. The outputs have 2 common ground lines: 0V EXT (outputs) at
the 37-pin SUB-D male connector.
36

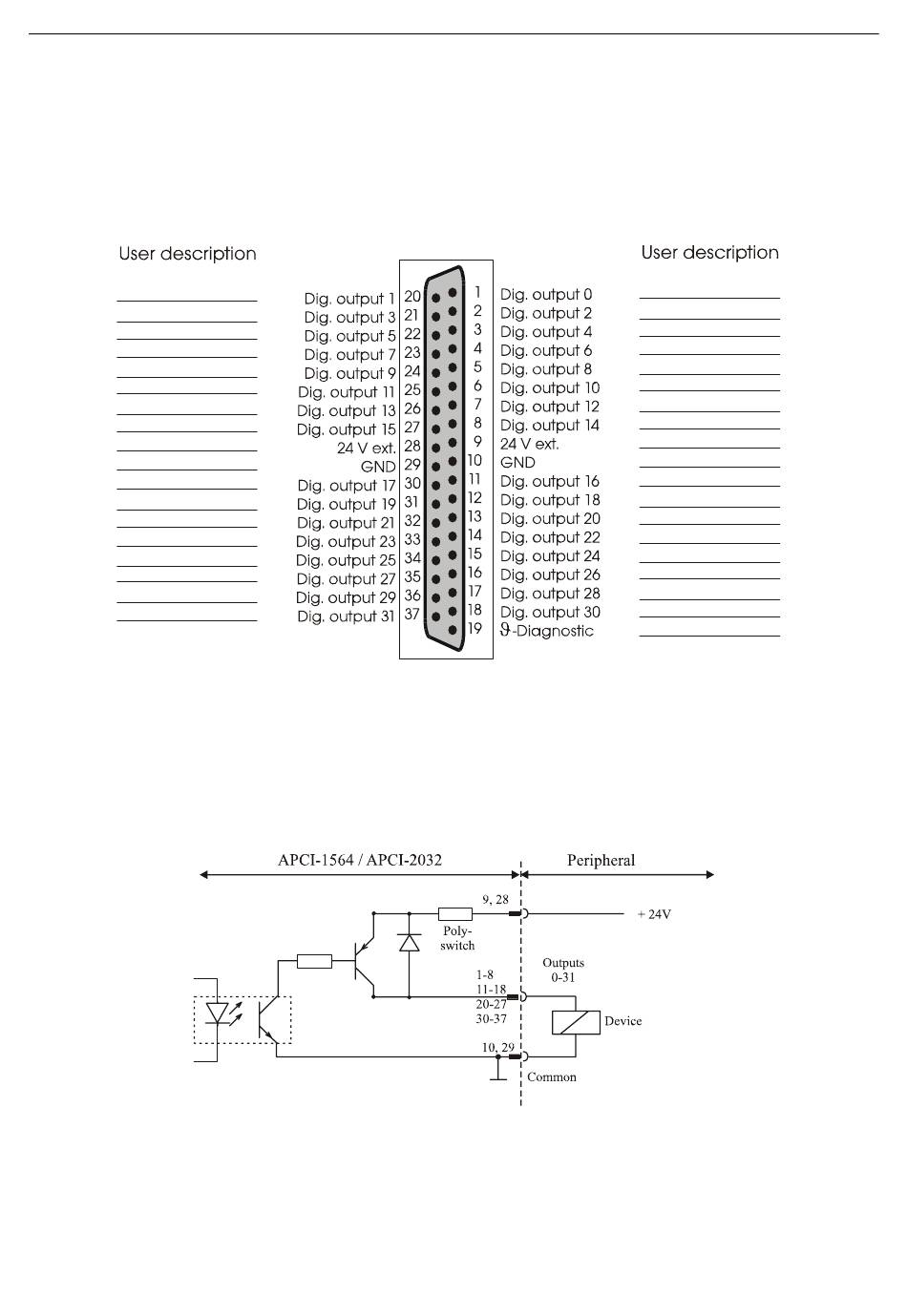

Fig. 7-4: 37-pin SUB-D front connector (24 V)

Fig. 7-5: Connection principle of the 24 V outputs

Connecting the peripheral
