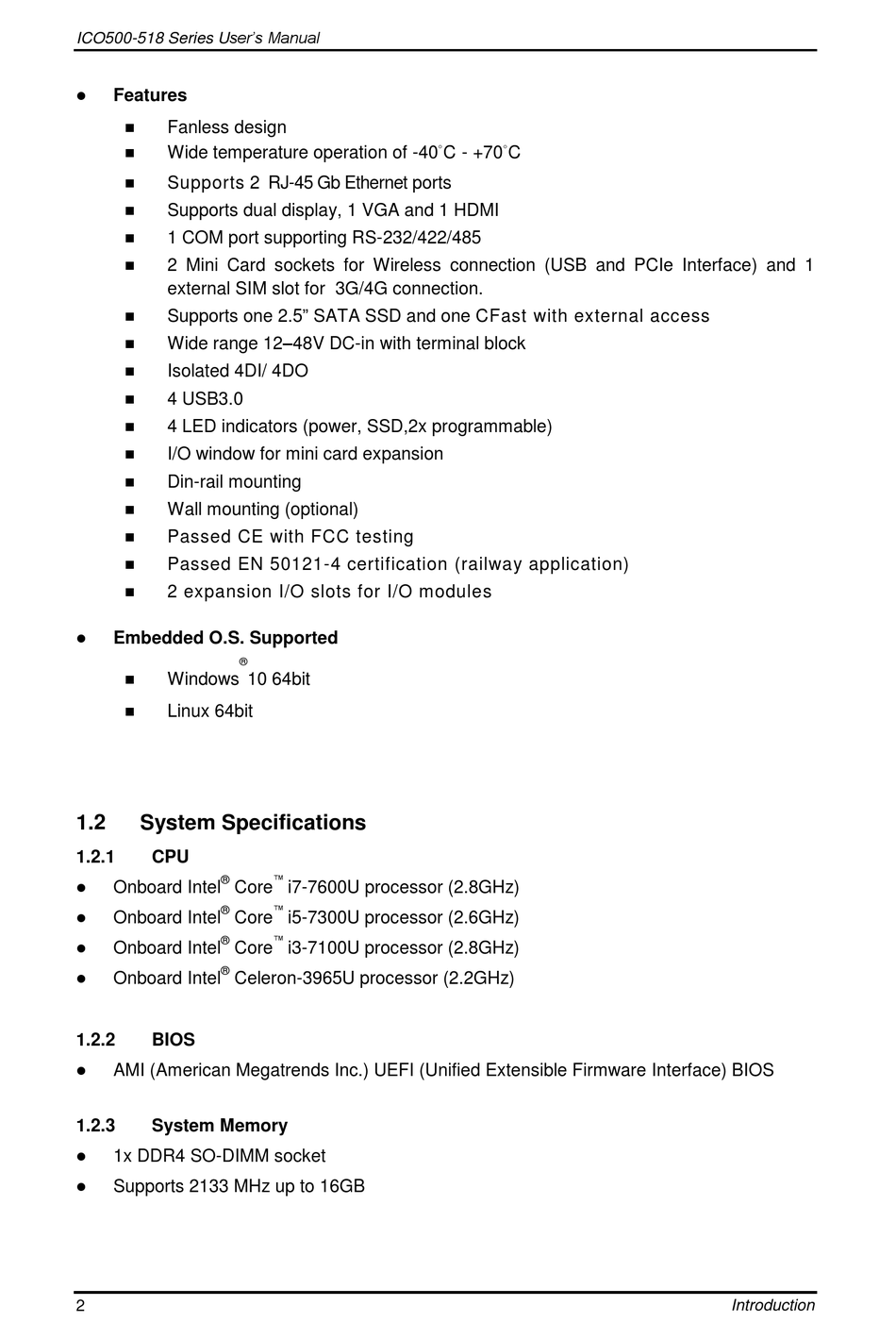

ICO500-518 Series User's Manual
 Features
 Fanless design
 Wide temperature operation of -40°C - +70°C
 Supports 2 RJ-45 Gb Ethernet ports

Supports dual display, 1 VGA and 1 HDMI
 1 COM port supporting RS-232/422/485
 2 Mini Card sockets for Wireless connection (USB and PCIe Interface) and 1
external SIM slot for 3G/4G connection.

Supports one 2.5" SATA SSD and one CFast with external access
 Wide range 12–48V DC-in with terminal block
 Isolated 4DI/ 4DO
 4 USB3.0
 4 LED indicators (power, SSD,2x programmable)
 I/O window for mini card expansion
 Din-rail mounting
 Wall mounting (optional)
 Passed CE with FCC testing

Passed EN 50121-4 certification (railway application)
 2 expansion I/O slots for I/O modules
 Embedded O.S. Supported
®
 Windows
 Linux 64bit
1.2

System Specifications

1.2.1

CPU

®

Onboard Intel Core
®
 Onboard Intel Core
®
 Onboard Intel Core
®
 Onboard Intel Celeron-3965U processor (2.2GHz)
1.2.2

BIOS

 AMI (American Megatrends Inc.) UEFI (Unified Extensible Firmware Interface) BIOS
1.2.3

System Memory

 1x DDR4 SO-DIMM socket
 Supports 2133 MHz up to 16GB
2
10 64bit
™
i7-7600U processor (2.8GHz)
™
i5-7300U processor (2.6GHz)
™
i3-7100U processor (2.8GHz)
Introduction
