The ICO500-518 is flexible for your different hardware configurations, such as the memory

module, hard disk drive, mini card and I/O module. Chapter 2 will show you how to install the

hardware.

2.1

Installing the Memory & Wireless Module

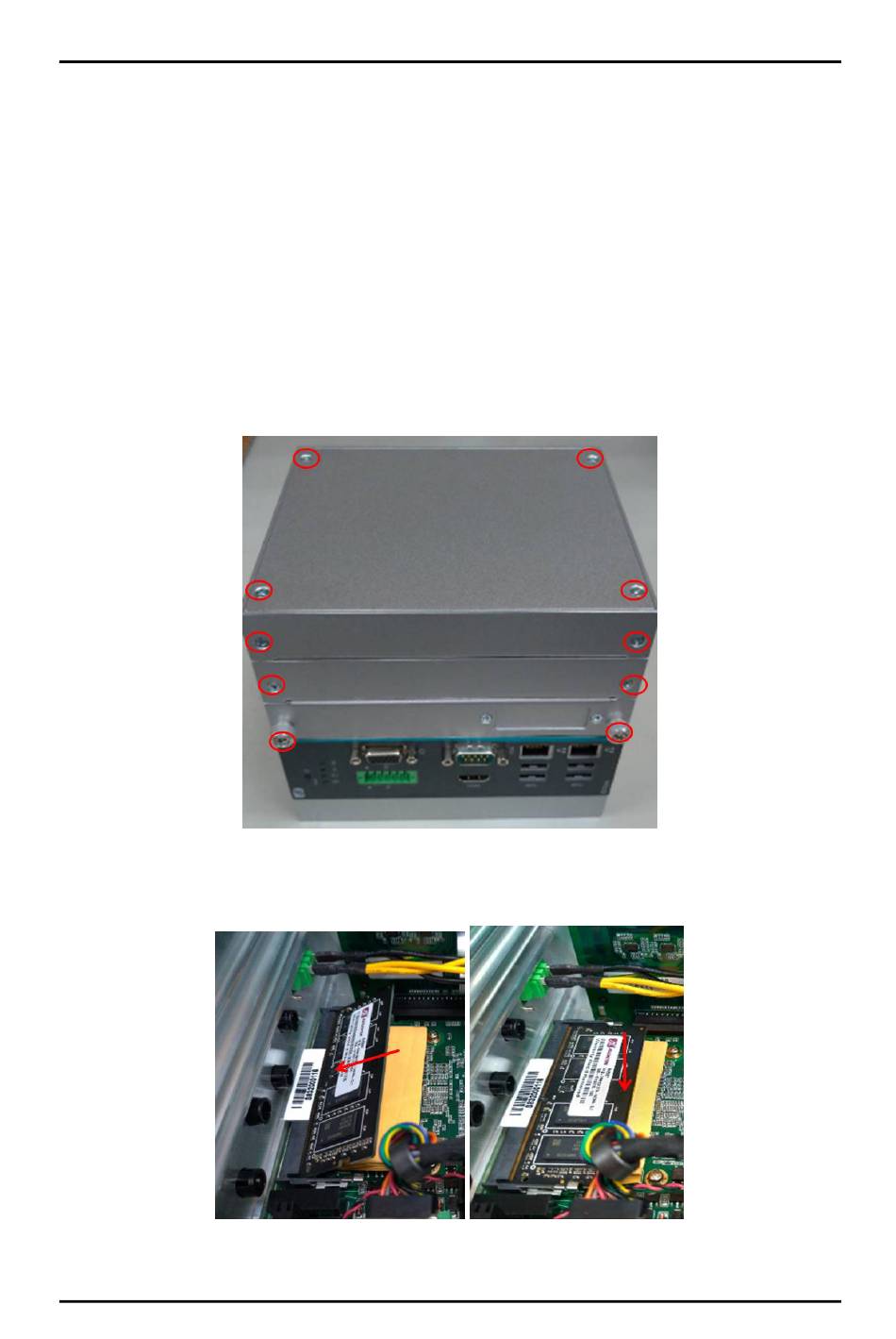

Step 1

Turn off the system.

Step 2

Loosen all cover screws and remove the cover from the system.

Step 3

Put the thermal pad on the SO-DIMM socket. Then insert the module's gold finger

into the socket and push the module down to finish the memory installation.

Hardware Installation

ICO500-518 Series User's Manual

HARDWARE INSTALLATION

CHAPTER 2
