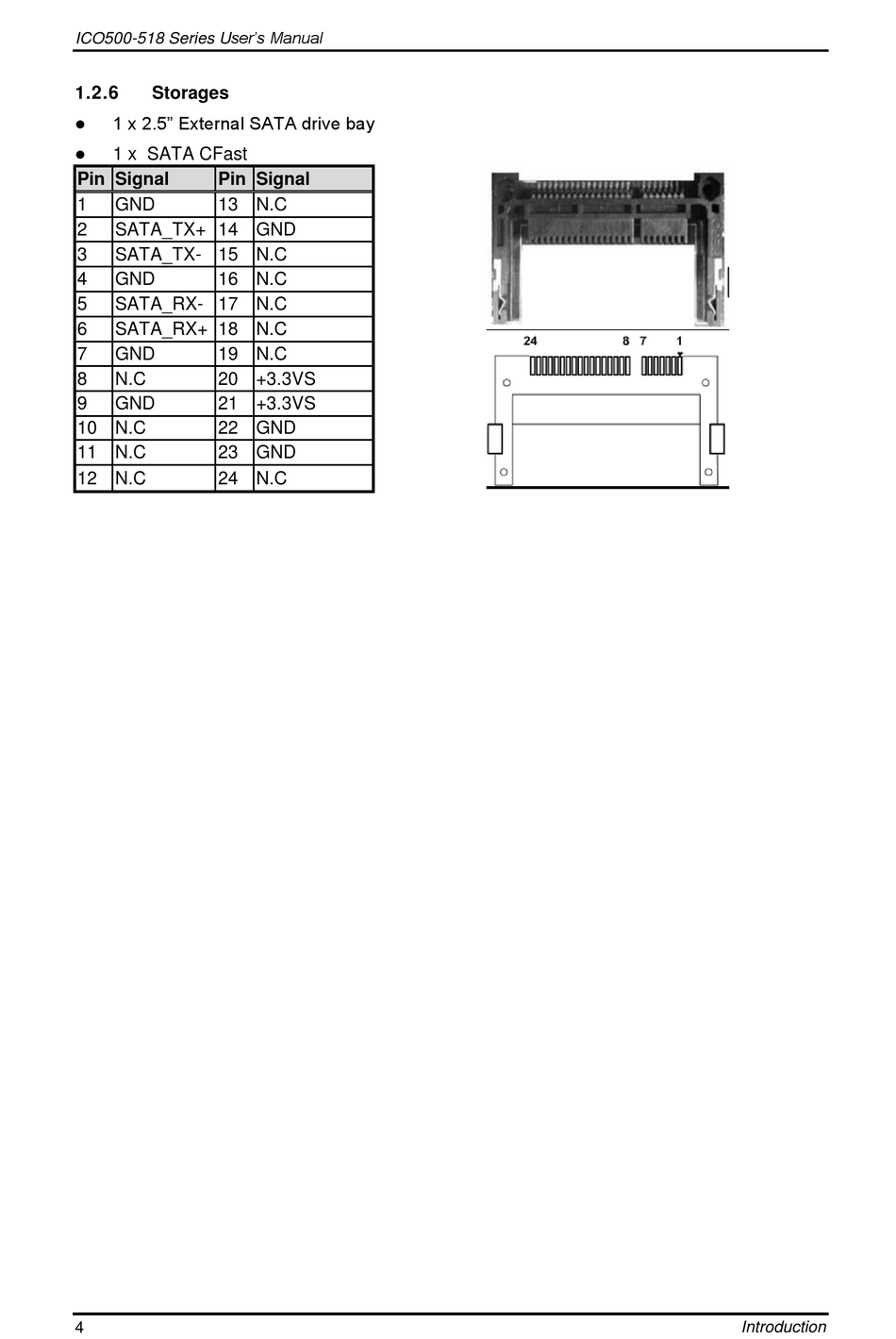

Storages

1 x 2.5" External SATA drive bay



1 x SATA CFast

Pin Signal

GND

13 N.C

SATA_TX+ 14 GND

SATA_TX- 15 N.C

GND

16 N.C

SATA_RX- 17 N.C

SATA_RX+ 18 N.C

GND

19 N.C

N.C

20 +3.3VS

GND

21 +3.3VS

10 N.C

22 GND

11 N.C

23 GND

12 N.C

24 N.C
