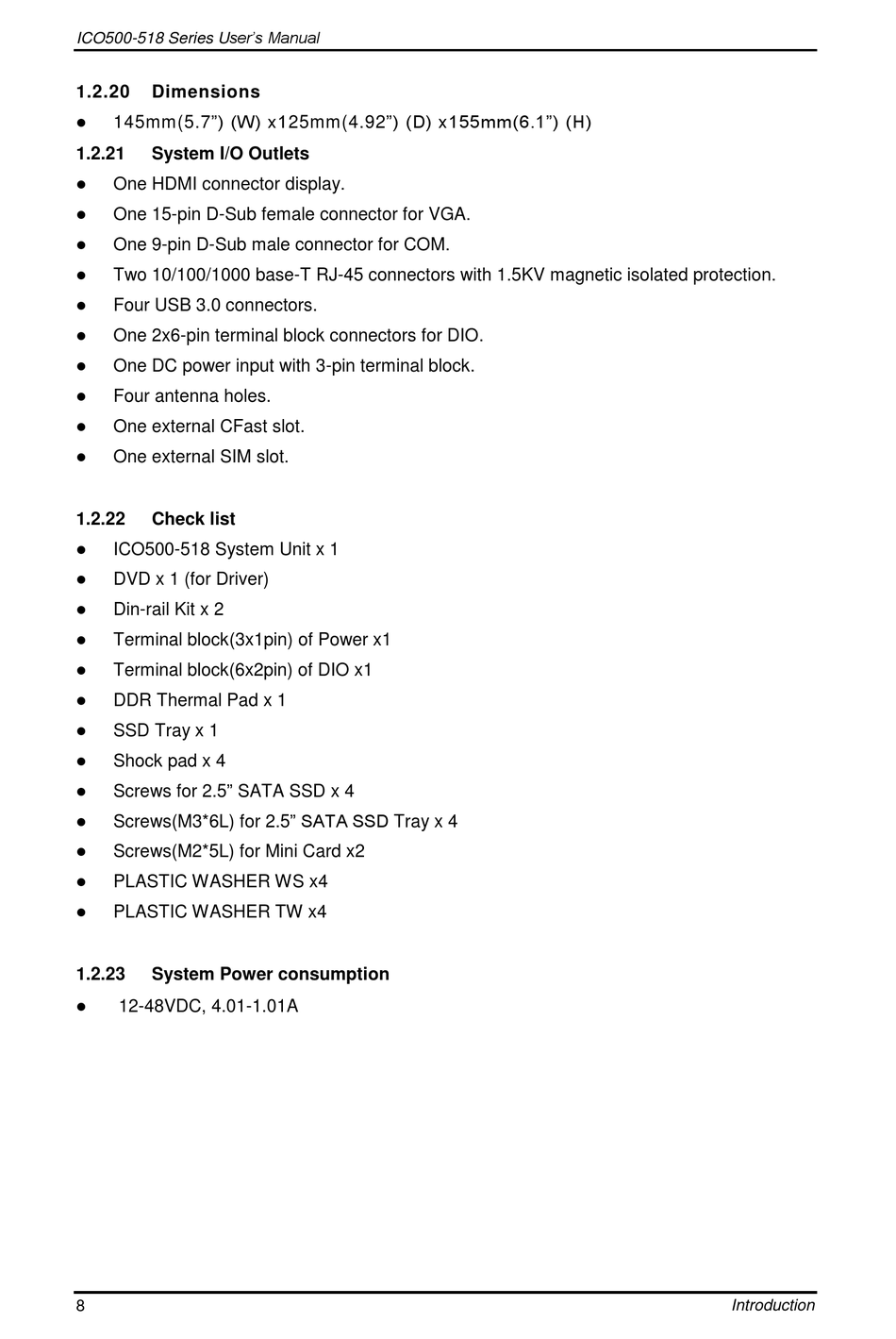

ICO500-518 Series User's Manual
1.2.20

Dimensions

145mm(5.7") (W) x125mm(4.92") (D) x155mm(6.1") (H)

1.2.21

System I/O Outlets

 One HDMI connector display.
 One 15-pin D-Sub female connector for VGA.
 One 9-pin D-Sub male connector for COM.

Two 10/100/1000 base-T RJ-45 connectors with 1.5KV magnetic isolated protection.
 Four USB 3.0 connectors.
 One 2x6-pin terminal block connectors for DIO.

One DC power input with 3-pin terminal block.
 Four antenna holes.
 One external CFast slot.
 One external SIM slot.
1.2.22

Check list

 ICO500-518 System Unit x 1

DVD x 1 (for Driver)
 Din-rail Kit x 2
 Terminal block(3x1pin) of Power x1
 Terminal block(6x2pin) of DIO x1
 DDR Thermal Pad x 1
 SSD Tray x 1
 Shock pad x 4
 Screws for 2.5" SATA SSD x 4
Screws(M3*6L) for 2.5" SATA SSD Tray x 4

 Screws(M2*5L) for Mini Card x2

PLASTIC WASHER WS x4
 PLASTIC WASHER TW x4
1.2.23

System Power consumption

 12-48VDC, 4.01-1.01A
8
Introduction
