Installation and Assembly
4.2
Sensor Mounting
Install the sensor according to the information in the table below:
Model
Screws
for through-hole
WDS-40-MT19-P
2 x M2
WDS-80-MT33-P
2 x M3
WDS-130-MT56-P
2 x M4
The sensor does not have to be oriented in a special way.
Select the installation position in such a way that damage to or contamination of the measuring wire is avoided.
i
If possible, prefer an installation position in which the measuring wire exits downward. This prevents liquids from entering the
measuring wire outlet.
i
Do not let the measuring wire snap! There is no liability for material defects in case of damage due to snapping.
Through-holes

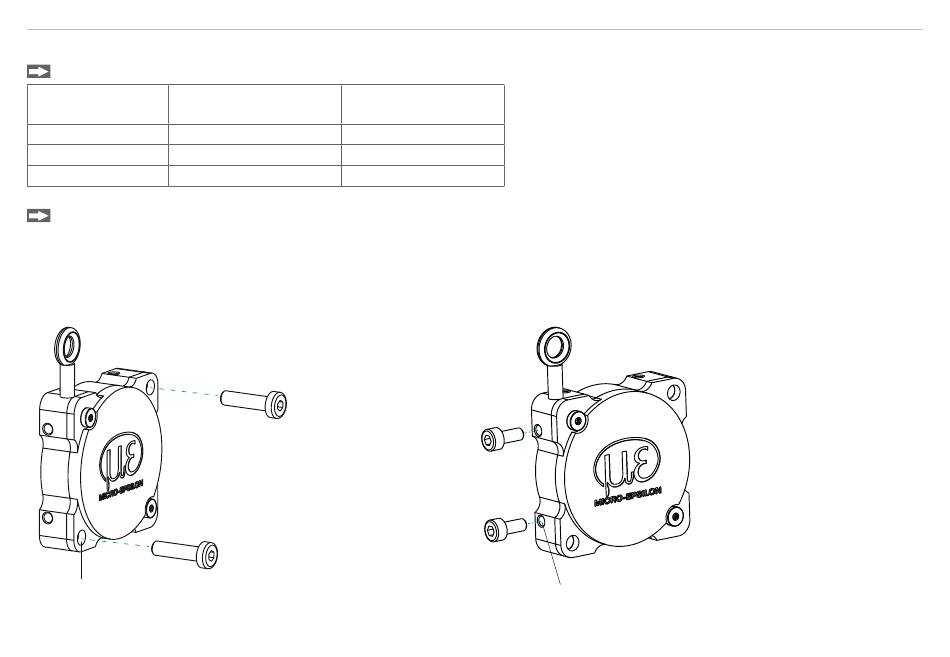

Fig. 2 Horizontal installation via through-holes
wireSENSOR, WDS series
Threaded holes
(on sides)
-
8 x M2.5; depth 5 mm
8 x M3; depth 6 mm
Fig. 3 Vertical installation via threaded side holes
8 Threaded holes (on sides)
Page 14
