Service, Repair

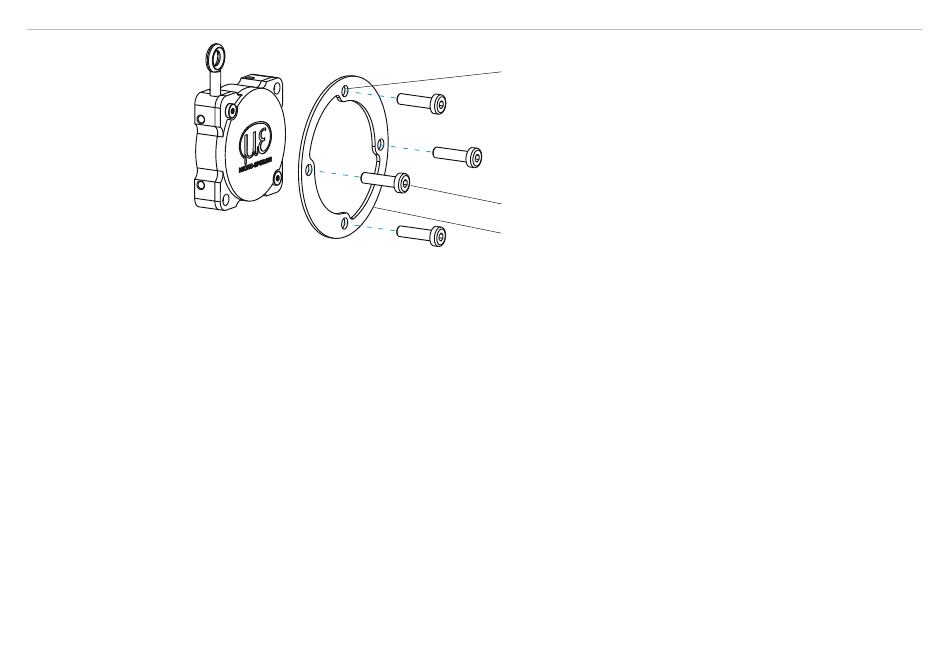

Fig. 12 Horizontal installation with the wire outlet at an infinitely variable angle
i
wireSENSOR, WDS series
If the device is installed with the wire outlet at an infinitely variable angle, mounting the sensor with only
one screw and then rotating it around that screw may be sufficient, if the basic conditions are suitable for
such an installation.
Through-holes
4 screws for screw-holes
Fastening bracket
Page 26
