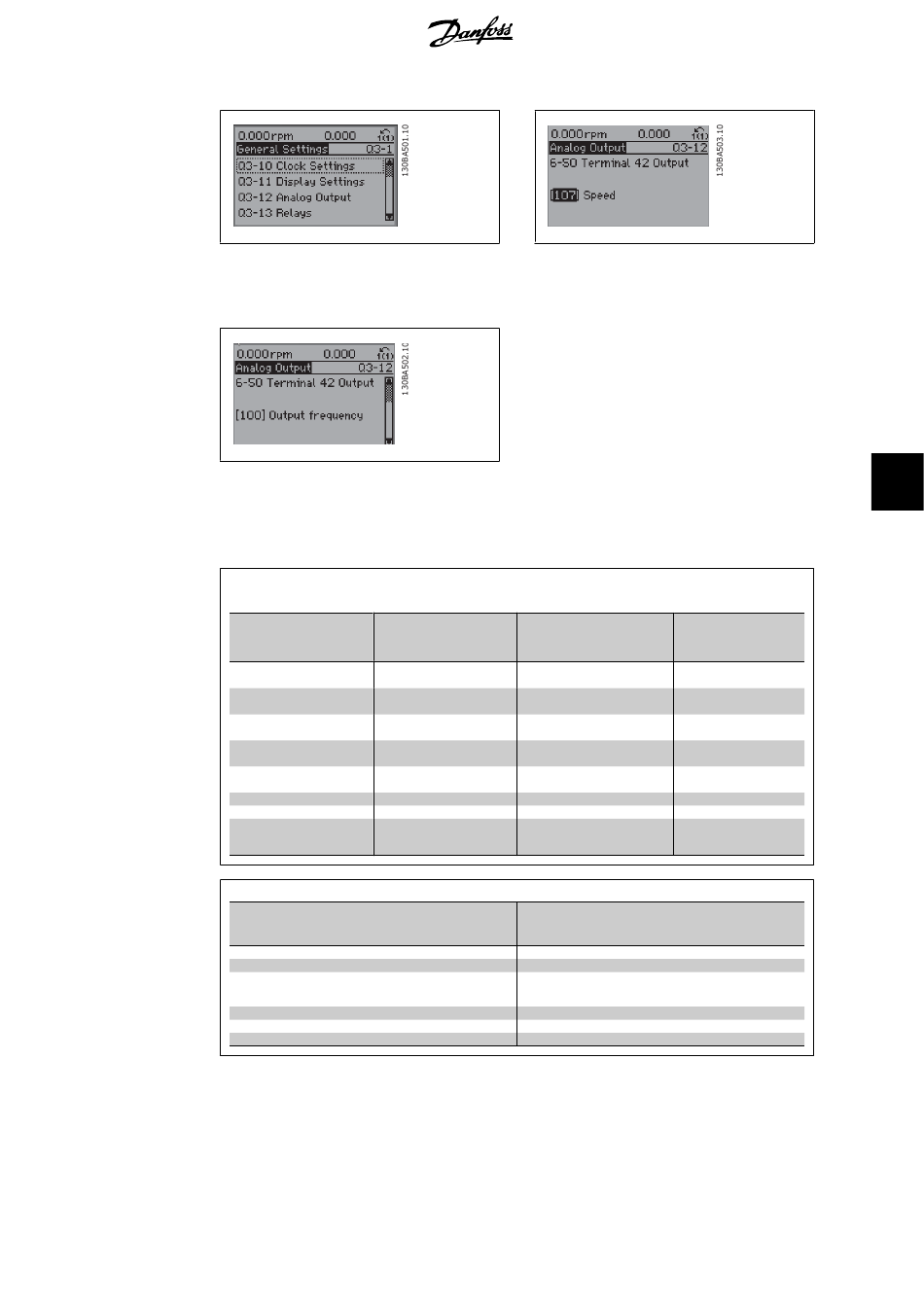

Illustration 7.6: Step 5: Use the up/down naviga-
tion keys to scroll down to i.e. 03-12
puts
. Press [OK].
Illustration 7.7: Step 6: Choose parameter 6-50
Terminal 42 Output
The Function Setup parameters are grouped in the following way:
Q3-10 Clock Settings
0-70 Set Date and Time
0-71 Date Format
0-72 Time Format
0-74 DST/Summertime
0-76 DST/Summertime Start 0-24 Display Line 3 Large
0-77 DST/Summertime End
Q3-20 Digital Reference
3-02 Minimum Reference
3-03 Maximum Reference
3-10 Preset Reference
5-13 Terminal 29 Digital Input
5-14 Terminal 32 Digital Input
5-15 Terminal 33 Digital Input
Analog Out-
. Press [OK].
Q3-1 General Settings
Q3-11 Display Settings
0-20 Display Line 1.1 Small
0-21 Display Line 1.2 Small
0-22 Display Line 1.3 Small
0-23 Display Line 2 Large
0-37 Display Text 1
0-38 Display Text 2
0-39 Display Text 3
Q3-2 Open Loop Settings
®
MG.20.M2.02 - VLT is a registered Danfoss trademark
7. How to programme the frequency converter
Illustration 7.8: Step 7: Use the up/down naviga-
tion keys to select between the different choices.
Press [OK].
Q3-12 Analog Output Q3-13 Relays
6-50 Terminal 42 Output Relay 1 ⇒ 5-40 Function
Relay
Relay 2 ⇒ 5-40 Function
6-51 Terminal 42 Output Min
Scale Relay
Option relay 7 ⇒ 5-40
6-52 Terminal 42 Output Max
Scale Function Relay
Option relay 8 ⇒ 5-40
Function Relay
Option relay 9 ⇒ 5-40
Function Relay
Q3-21 Analog Reference
3-02 Minimum Reference
3-03 Maximum Reference
6-10 Terminal 53 Low Voltage
6-11 Terminal 53 High Voltage
6-14 Terminal 53 Low Ref/Feedb. Value
6-15 Terminal 53 High Ref/Feedb. Value
