7. How to programme the frequency converter
See section
7.1.3. Function Setups
The Function Setup provides quick and easy access to all parameters required for the majority of
water and wastewater applications including variable torque, constant torque, pumps, dossing
pumps, well pumps, booster pumps, mixer pumps, aeration blowers and other pump and fan
applications. Amongst other features it also includes parameters for selecting which variables to
7
display on the LCP, digital preset speeds, scaling of analog references, closed loop single zone
and multi-zone applications and specific functions related to water and wastewater applications.
How to access Function Set-up - exam-
ple

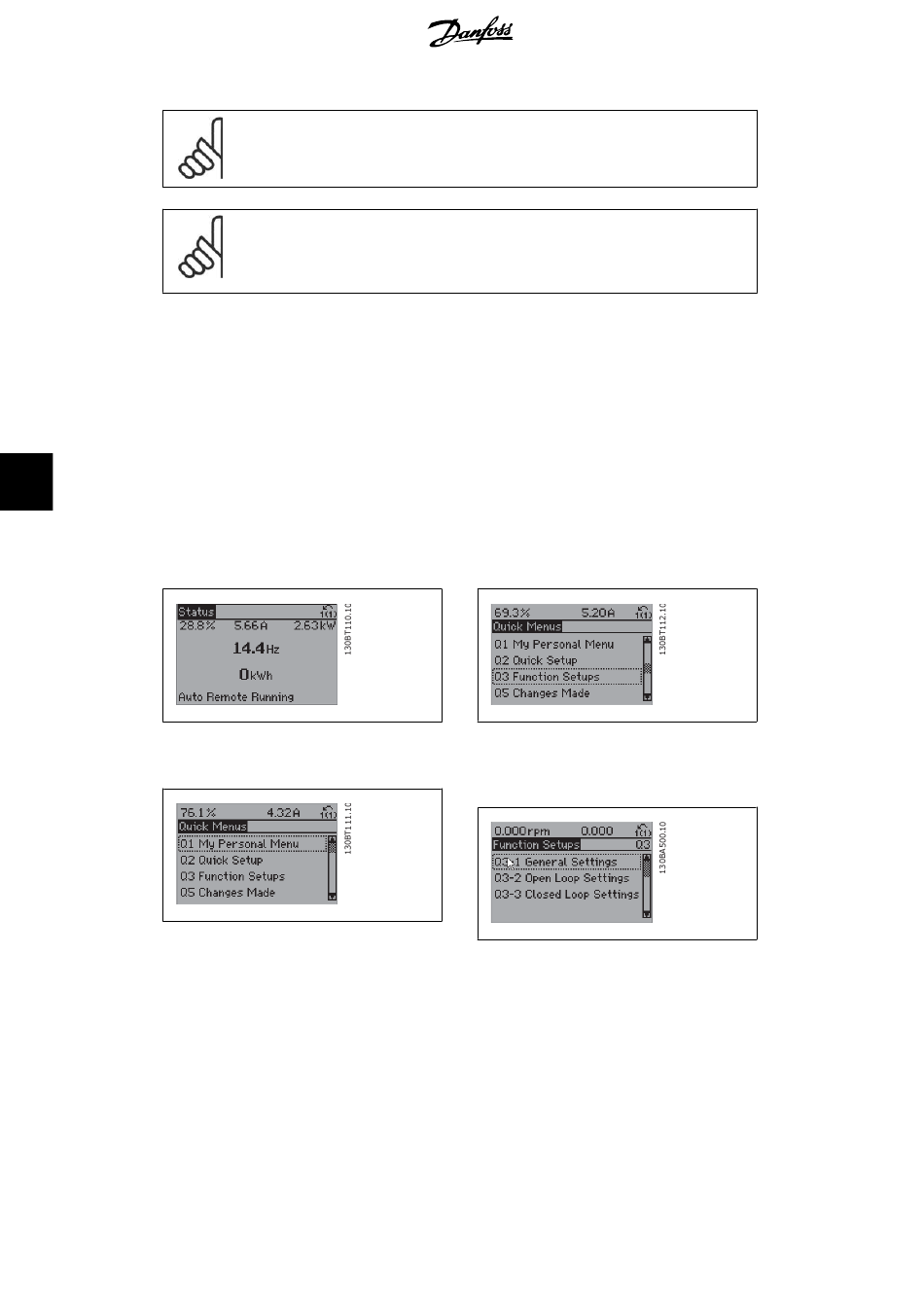

Illustration 7.2: Step 1: Turn on the frequency
converter (On LED lights)
Illustration 7.3: Step 2: Press the [Quick Menus]
button (Quick Menus choices appear).
62
NB!
Avoid generating external torque during AMA.
NB!
If one of the settings in par. 1-2* Motor Data is changed, par. 1-30 to 1-39, the
advanced motor parameters, will return to default setting.
This parameter cannot be adjusted while the motor is running.
Automatic Motor Adaptation
MG.20.M2.02 - VLT
- application example.
Illustration 7.4: Step 3: Use the up/down naviga-
tion keys to scroll down to Function Setups. Press
[OK].
Illustration 7.5: Step 4: Function Setups choices
appear. Choose 03-1
®
is a registered Danfoss trademark
®
VLT AQUA Drive
Operating Instructions
General Settings
. Press [OK].
